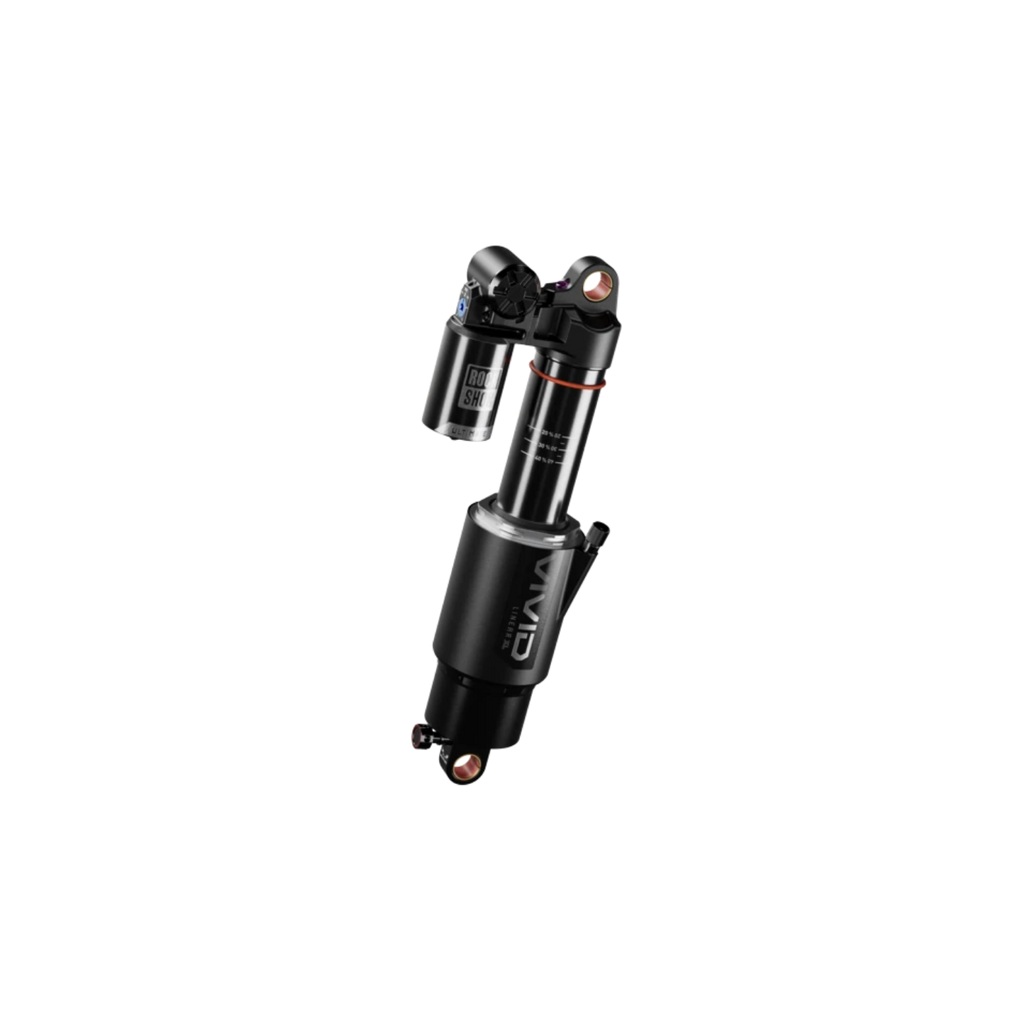

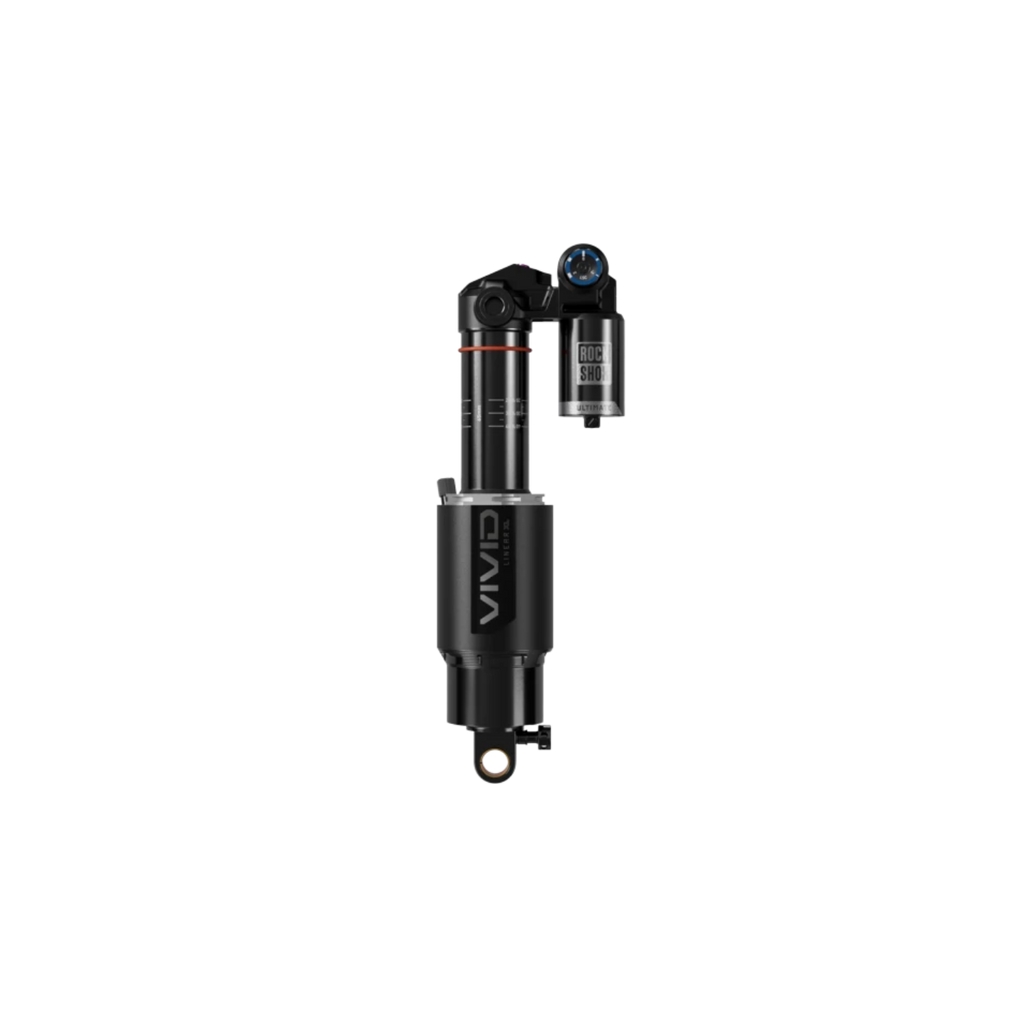

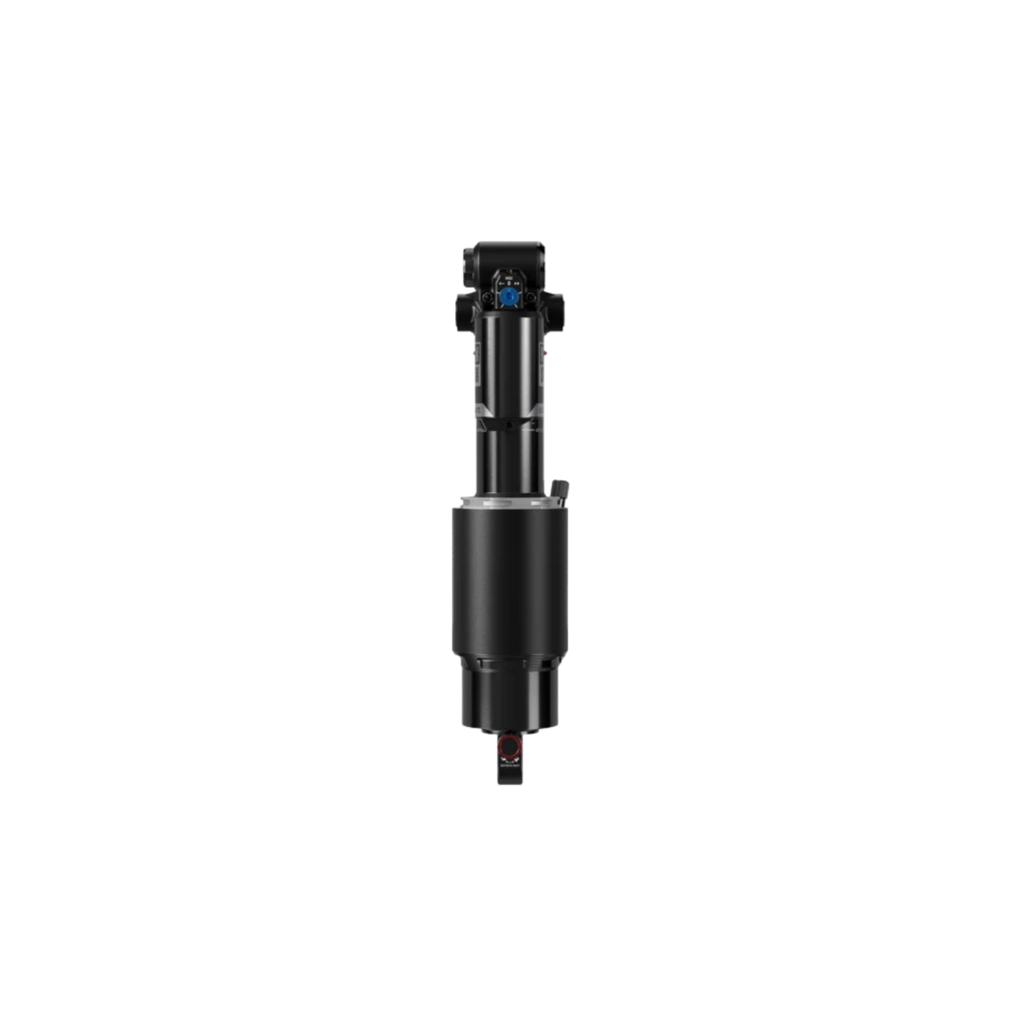

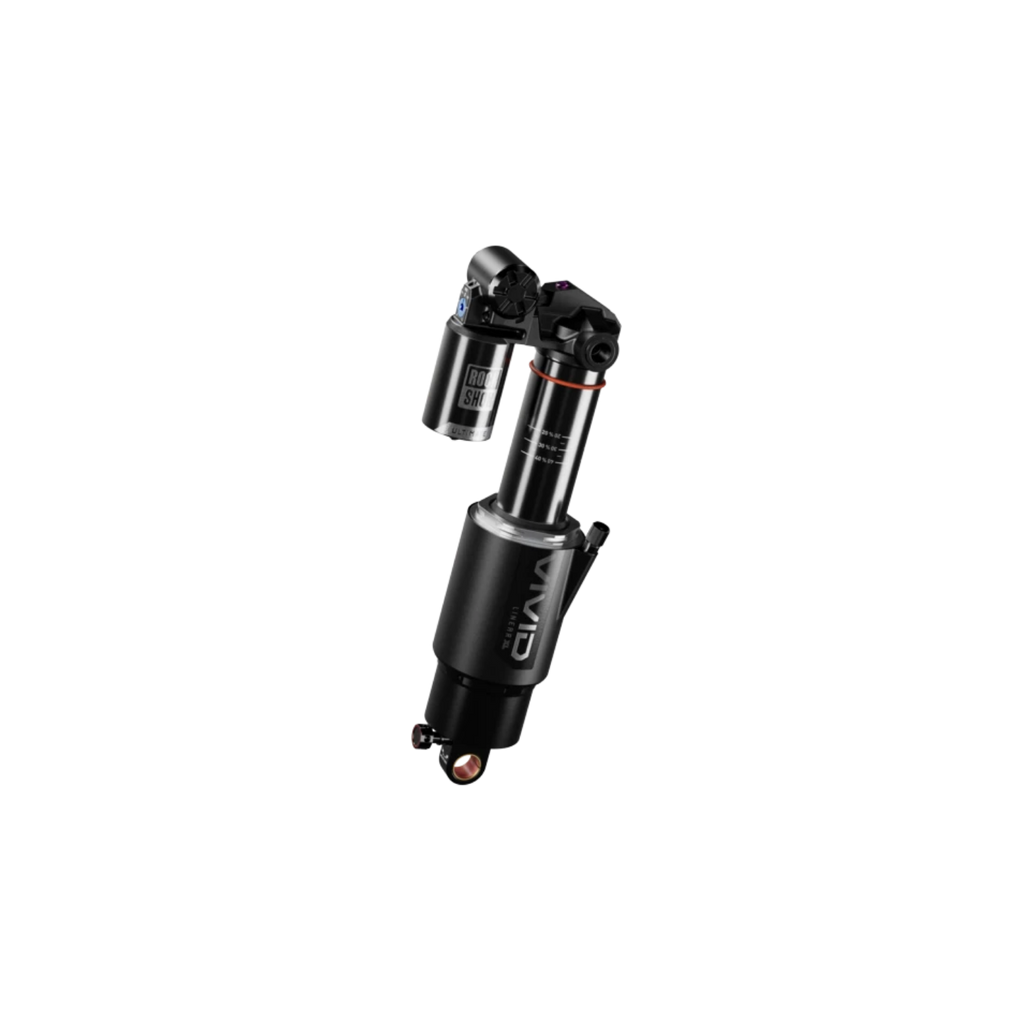

World Cup-proven and built to charge, Vivid Ultimate DH sets a new standard in downhill performance. The LinearXL air spring delivers a coil-like feel—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out for confident endstroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your BoXXer, the RC2 damper’s new main piston compression tunes provide mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Bigger, more aggressive, and ready to push limits on downhill bikes—Vivid Ultimate DH redefines what a rear shock is capable of.

Features
NEW LinearXL air spring delivers a consistent and predictable ride feel tunable with easy-to-change bottomless tokens
NEW RC2 damper providing a wide, usable range of low speed compression (LSC) and high speed compression (HSC) adjustments without any cross-talk
NEW numbered compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping
NEW base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
NEW main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support
Adjustable bottom out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel
Removable rebound knob doubles as HSC and ABO adjuster
20 clicks of rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
8x30 bearing adapter available for all standard eyelets, sold as an upgrade kit

Specifications
Eye to eye / Stroke: 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Damper Type: RC2 Adj. Hydraulic Bottom Out
Rebound tune: R25, R55
Compression tune: C26, C30, C34, C37, C43, C46
Lockout force: N/A-V5
Shaft Eyelet: No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 90 Deg Rotation
Body Eyelet: No Bushing, Standard, Trunnion
E-Bike Approved: E-bike Approved
Bottom Out: Externally Adjustable Bottom Out
High Speed Tune: n/a

Mfr Claimed Weight
TBC
