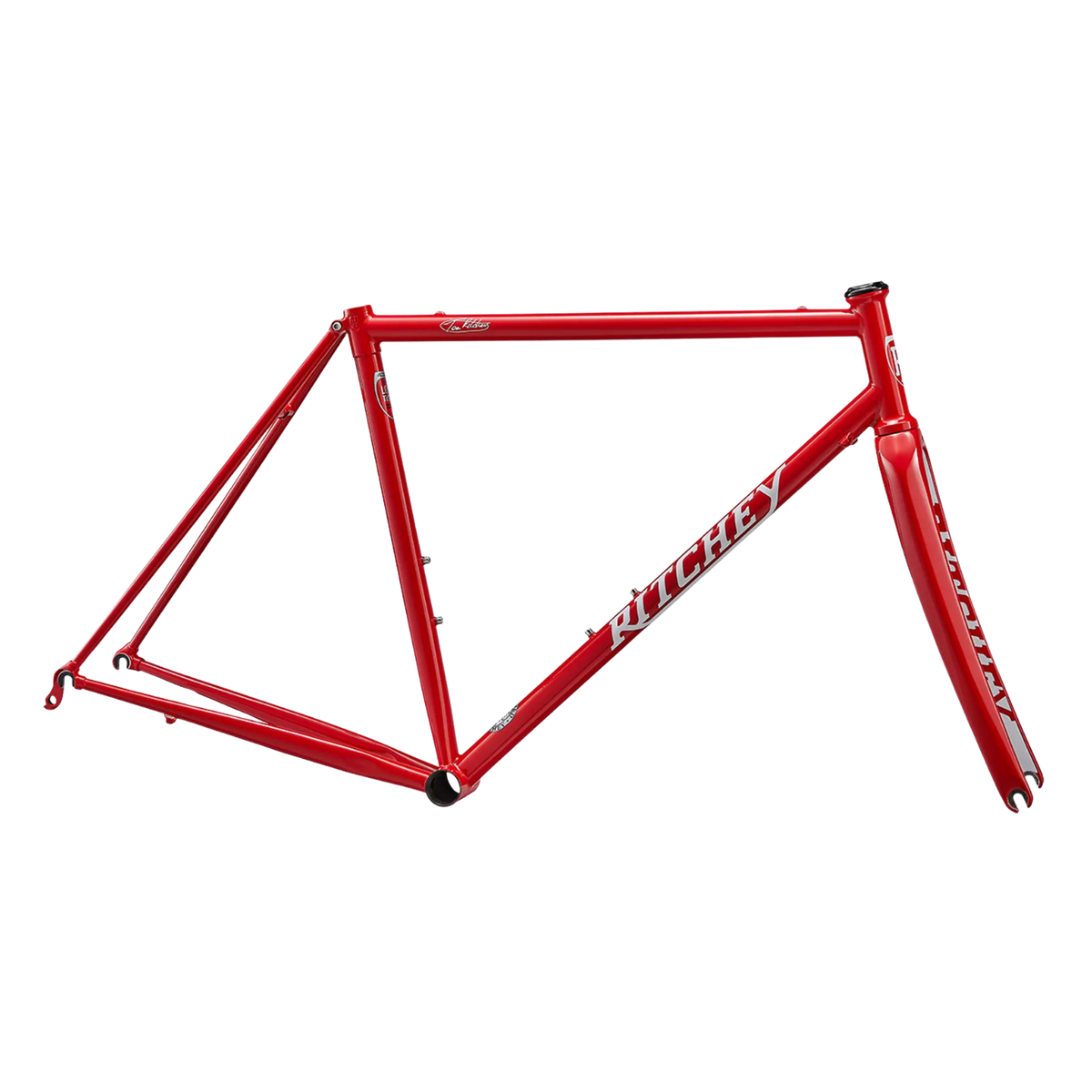

The Road Logic Signature Edition offers a riding experience steeped in more than 50 years of life experiences, framebuilding heritage, innovation, and exploration. It's a legacy that traces back to the 1970s, when Tom Ritchey built his first road frame in his parent's garage in northern California. Since then, Tom has continued to explore, experience, and innovate in ways that define the craft, and the Road Logic Signature Edition is the result of that expanding legacy: his prodigious experience with steel, and mastery of the subtleties and details gleaned from his tenure in the art of creating bicycles.

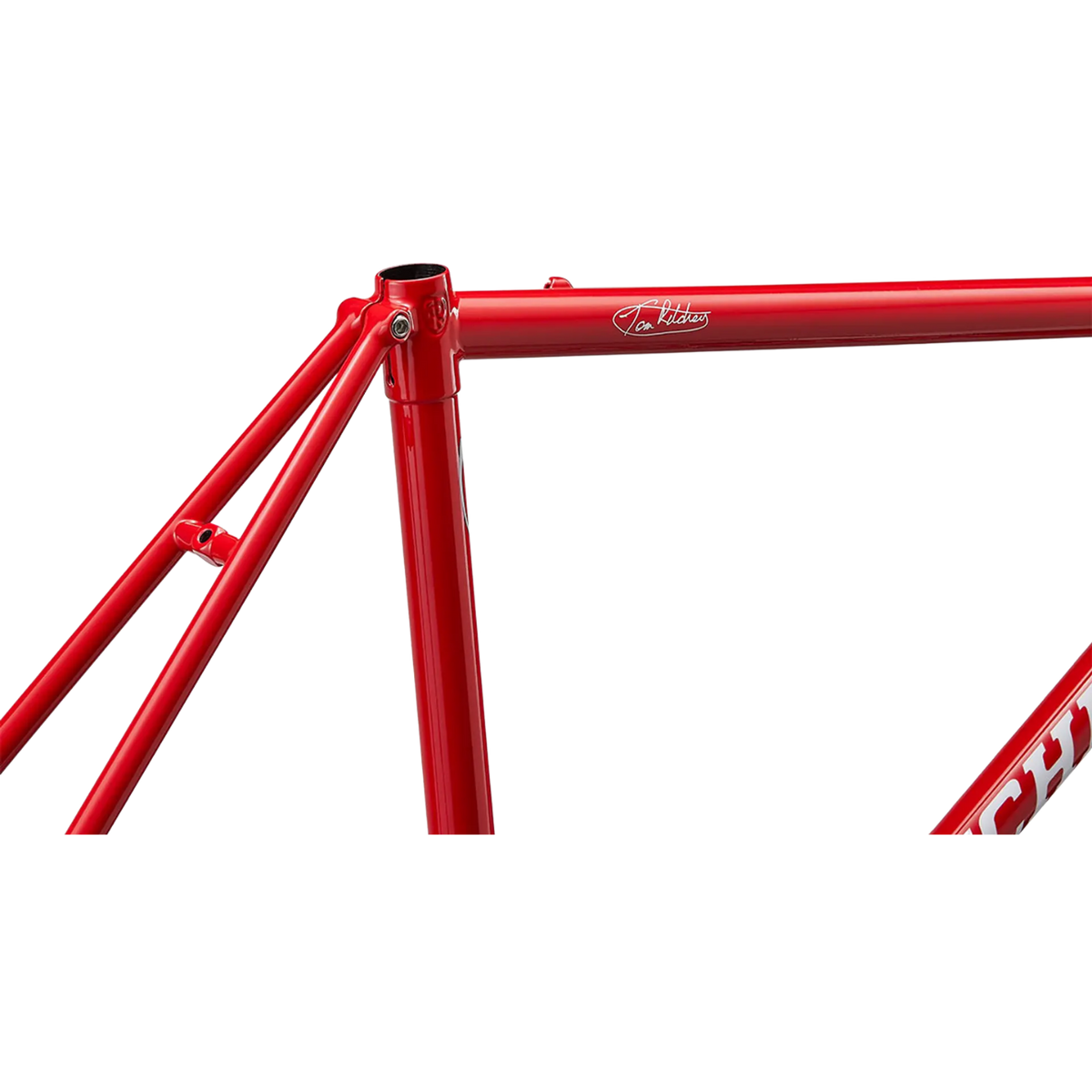

The beauty of its classic lines unites with modern building techniques and proven materials to deliver a contemporary bicycle that's sufficiently comfortable for long days in the saddle, nimble and stiff enough to win the sprint for that sign, and adequately adaptable to endure roads that might lack proper pavement. Bearing Tom Ritchey's signature on the top tube, it's a subtle reminder that this frame is a direct expression of his lifelong dedication to steel and ride quality.

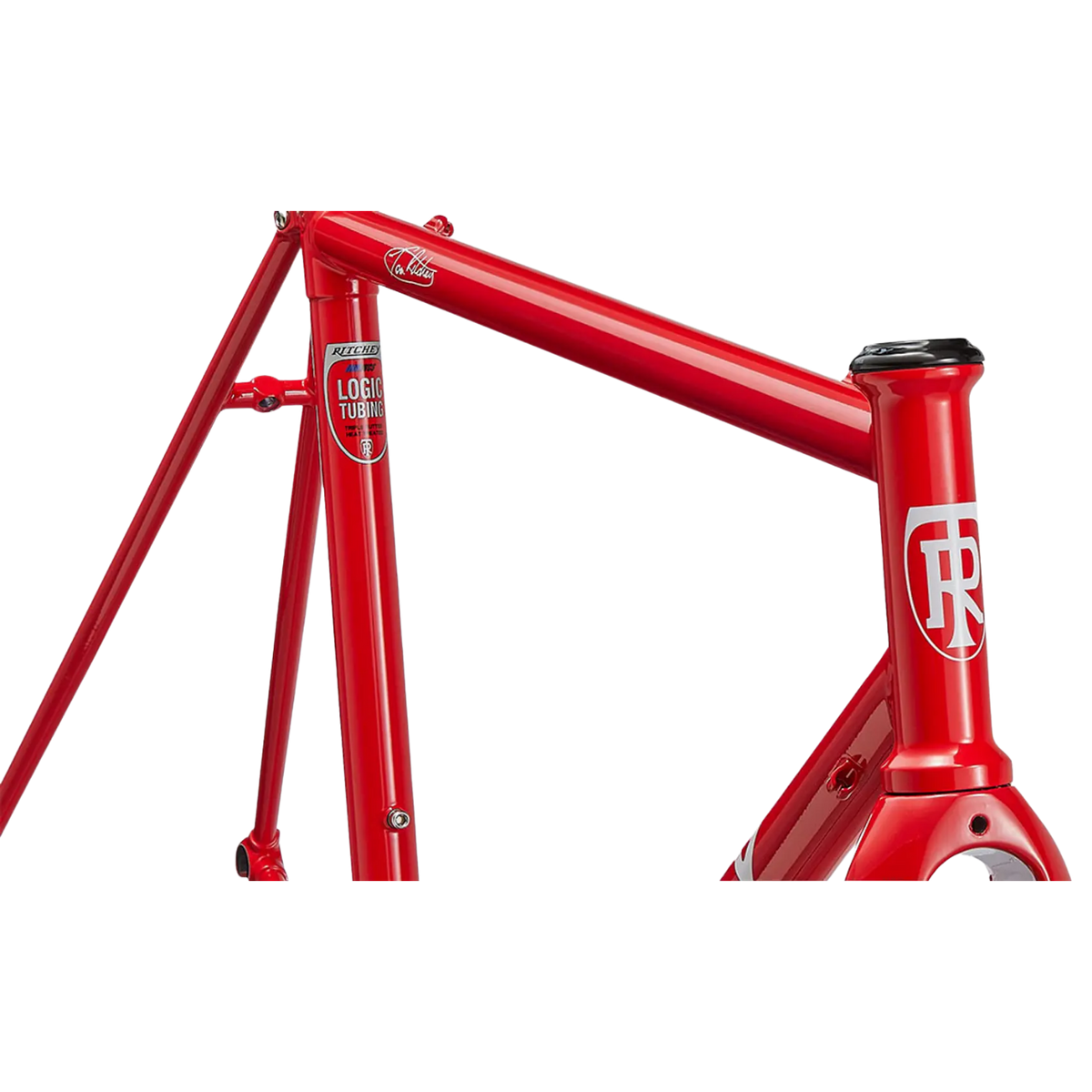

A true modern classic, the Road Logic Signature Edition uses a heat-treated and triple-butted Ritchey Logic tubeset that was designed by Tom, and it features aggressively short-butted sections optimized for TIG welding that save weight and improve ride quality. Ritchey’s proprietary forged-and-machined integrated head tube uses standard drop-in bearings and saves 80 grams over a standard head tube design.

Wrapped in Ritchey Classic Red paint, the Road Logic Signature Edition also features a Ritchey Carbon Fork and spacing for up to 30c tires to deliver a lifetime of enjoyable pedal turns.

Specifications
Frame Material: Heat-Treated, Triple-Butted Ritchey Logic Steel Tubing, TIG Welded
Head Tube: Ultra-Light Forged And Machined Straight 1-1/8" Head Tube
Corrosion Resistance: Electrophoretic Deposition (ED Coat) Treatment
Seat Tube Clamp Size: 28.6 mm (2.5 Nm Maximum Torque For Derailleur Clamps And Chain Guides)
Seat Tube: 27.2 mm With Integrated Seat Collar (6 Nm Maximum Torque)

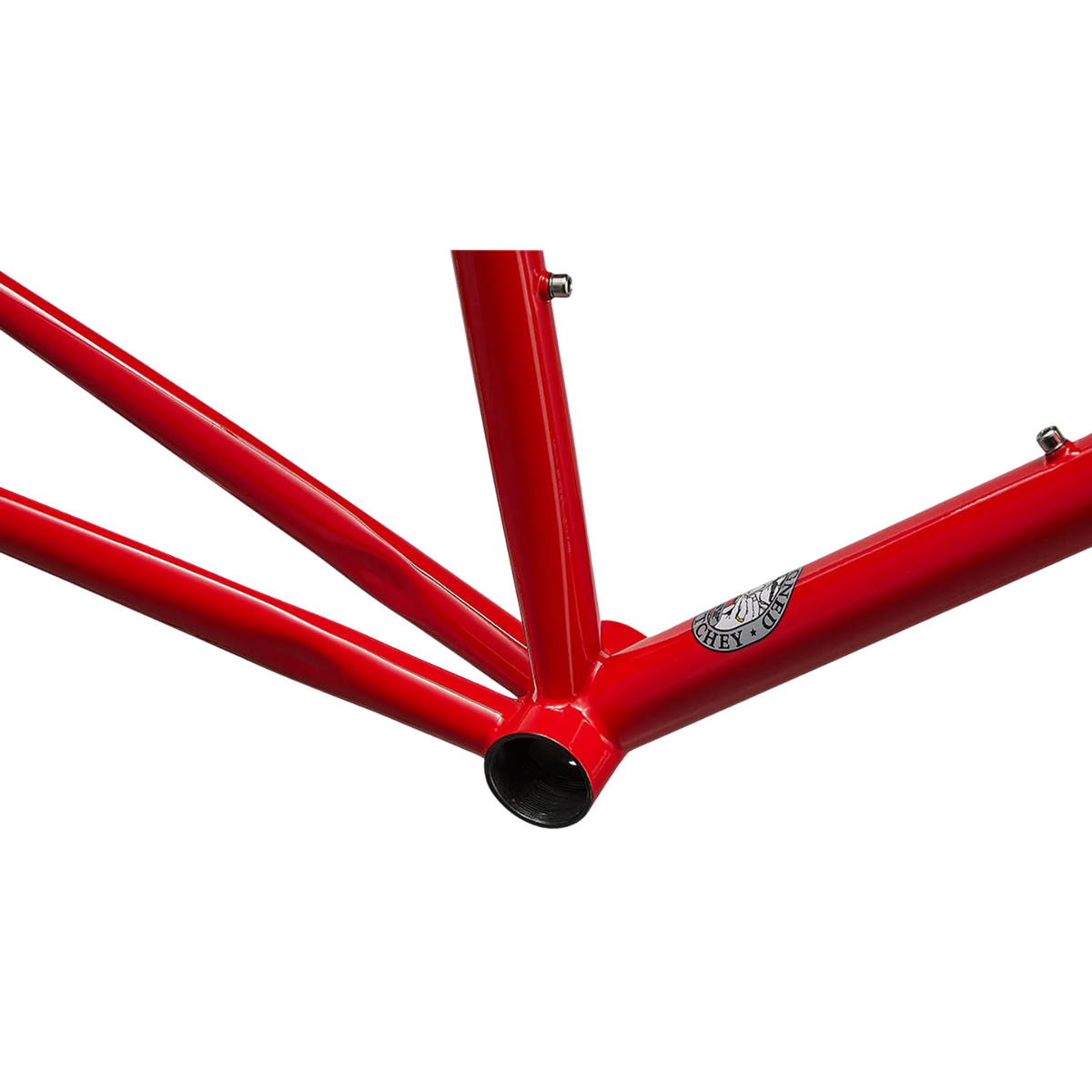

Bottom Bracket: 68 mm, English Threaded
Crankset Min/Max Ring Size: 46/30T To 53/39T
Chainline: 44 mm
Bottle Cage Mounts: 2
Axles: Standard Quick Release, Front And Rear
Cable Routing: External
Headset: WCS Headset Included (Upper IS42/28.6, 16 mm Stack Height / Lower IS42/30)
Fork: Ritchey WCS Carbon Road Fork Included
Fork Steerer: 1-1/8" Straight Steerer With Integrated 45-Degree Crown Race
Steerer Length: 300 mm
Axle-Crown Length: 371 mm
Rake/Offset: 46 mm (Sizes 49 / 51 / 53 cm) / 43 mm (Sizes 55 / 57 / 59 cm)
Maximum Spacers Below Stem: 30 mm
Wheel And Tyre Compatibility: 700 x 30C Tyre Clearance (Depending On Tyre/Rim Manufacturer)
Frame Spacing: 38 mm
Fork Spacing: 40 mm
Sizes: 49 / 51 / 53 / 55 / 57 / 59 cm

Mfr Claimed Weight
Frame Weight: 1,750 g (Size 55)
Fork Weight: 380 g (Uncut Steerer)
