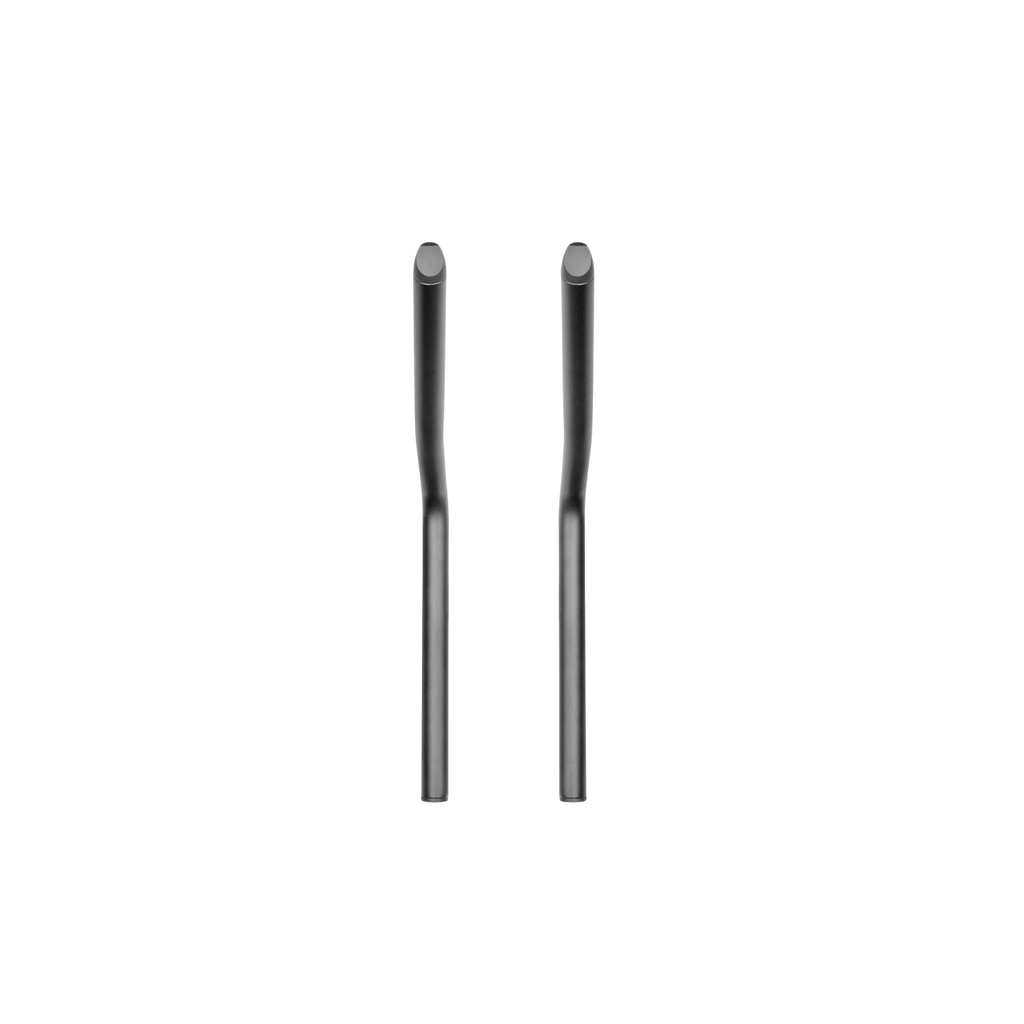

The 39AH is intended to be paired with our pad wadges to convert non-tilting aerobars to have a 10° or 15° of tilt.  The name means 39°, aluminium high rise.

The extension angle starts at 54° and when adding a 15° pad wedge, balances the angle out to 39° (54°-15°=39°).  Likewise when paring with a 10° wedge you get a total of 44° (54-10°=44°).

The grip is long enough that it can be shortened for use with the 10° wedge.

Features
Extension Shape: Aero shape consistent with the A-Series extensions, featuring aerodynamic shaping in the rise section and a lateral offset at the grip
Bend Angle: 54° bend (39AH), which becomes 39° when paired with a 15° wedge
Compatibility Note: Designed to be used with Profile Design pad wedge options and Ergo+ or Race+ armrests to add tilt and comfort when upgrading a non-Profile Design aerobar

Specifications
Extension Length: 365mm
Extension Angle: 39°
Extension Rise: 186mm (bottom to top)
Outer Diameter: 22.2mm
Offset: 15mm total
Includes: Sold as a pair (1 right and 1 left extension)
Construction: 6061-T6 aluminum, pre-drilled for bar-end shifter cable routing
Color: Anodized matte black

Mfr Claimed Weight
227g/pair
