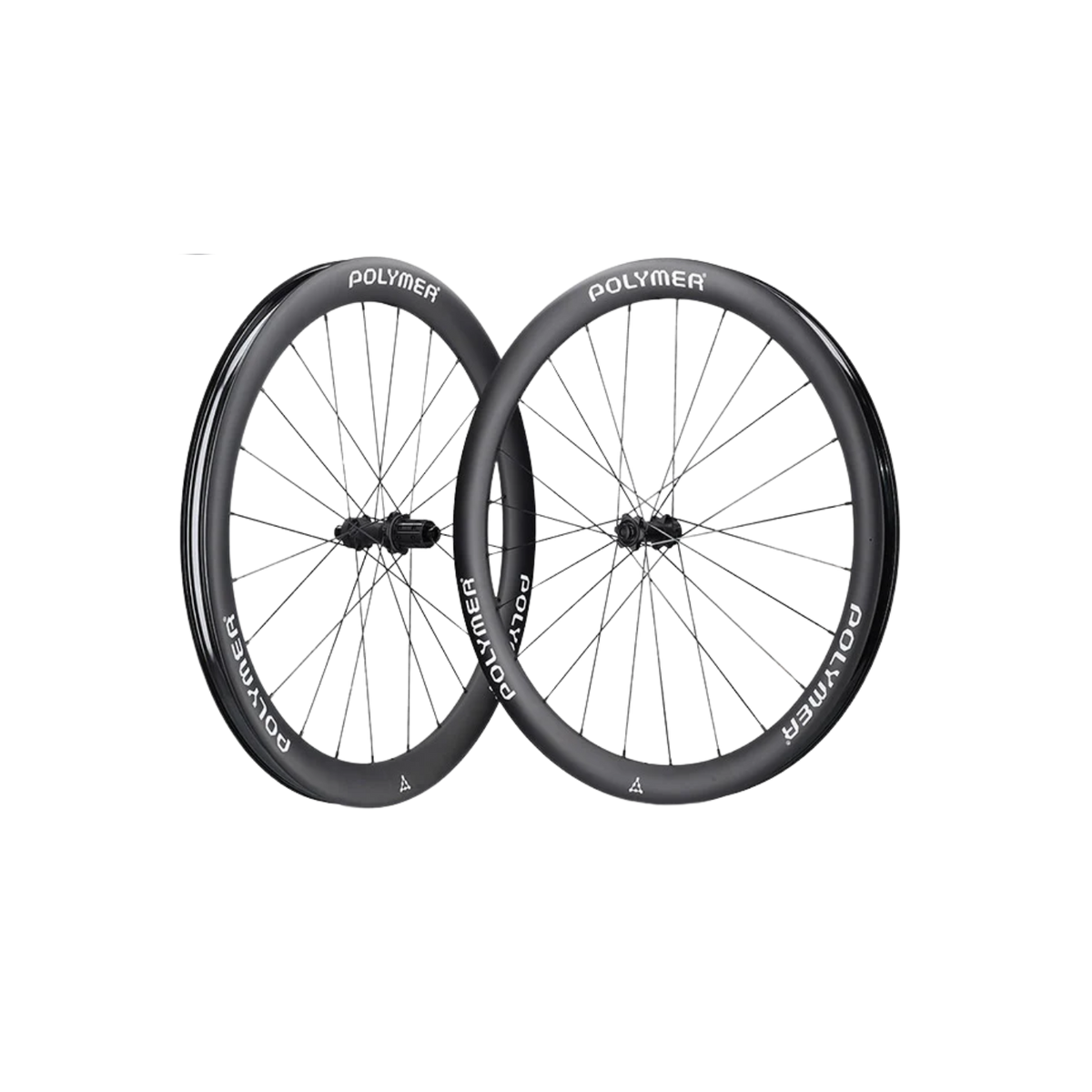

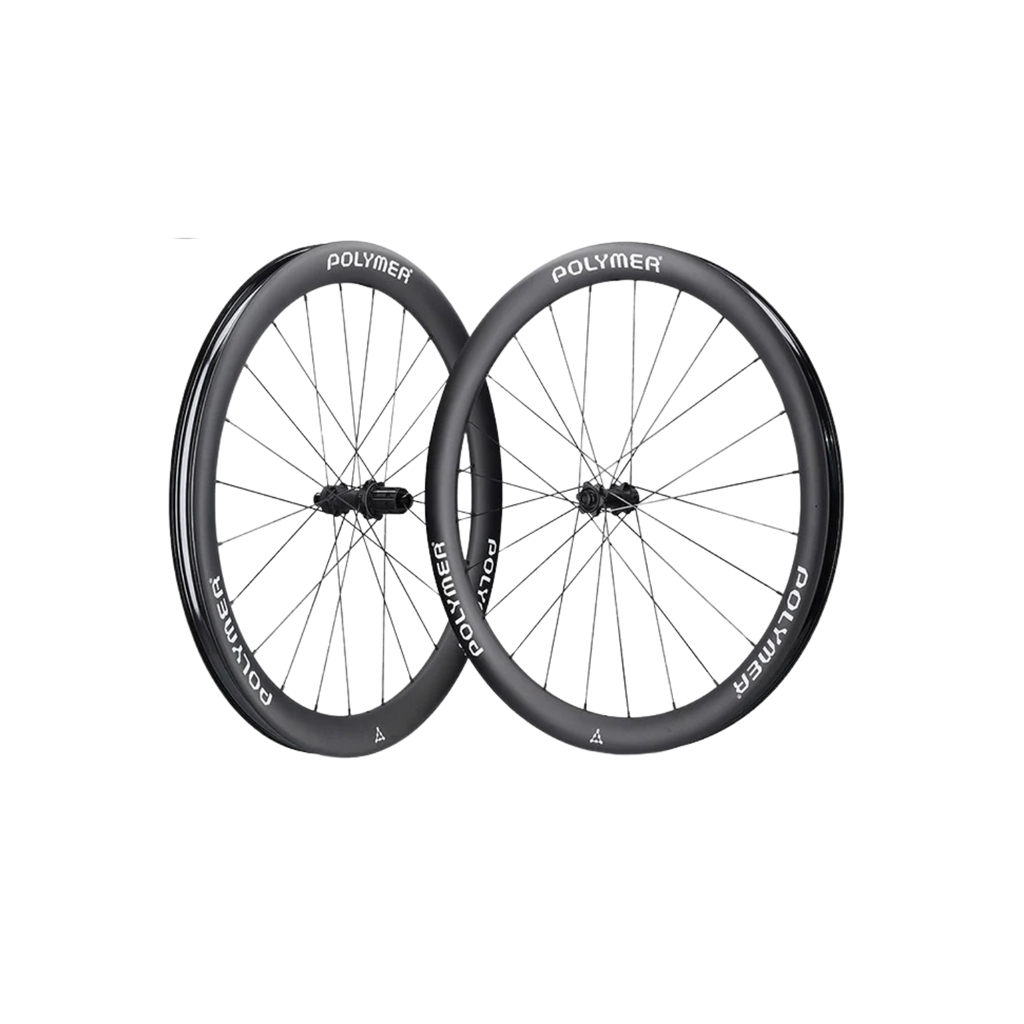

Ultra Wide Rims with Dual-Profile

Features
Engagement: 36T or 54T
Ratchet Freehub System: 36-tooth ratchet ring with an intuitive plug-in end-cap construction
Freehub: Tool-free swapping for easy maintenance
Engagement Options: 36T and 54T customizable engagement rings
S&S Bearings: Durable steel bearings for long lifespan, smooth rolling resistance, and enhanced performance
Bearing Protection: Sealed bearings provide protection against dirt, water, and wear
Spoke Compatibility: Steel straight-pull spokes
Spoke Count: 24 Sapim® CX-Ray
Nipple Type: External Brass Nipples
Load Transfer: Efficient load transfer with easy and precise tensioning
Serviceability: Quick and straightforward servicing without removing the tire or rim tape
Corrosion Resistance: High corrosion resistance
Riding Conditions: Designed for demanding conditions and tough terrain

Specifications

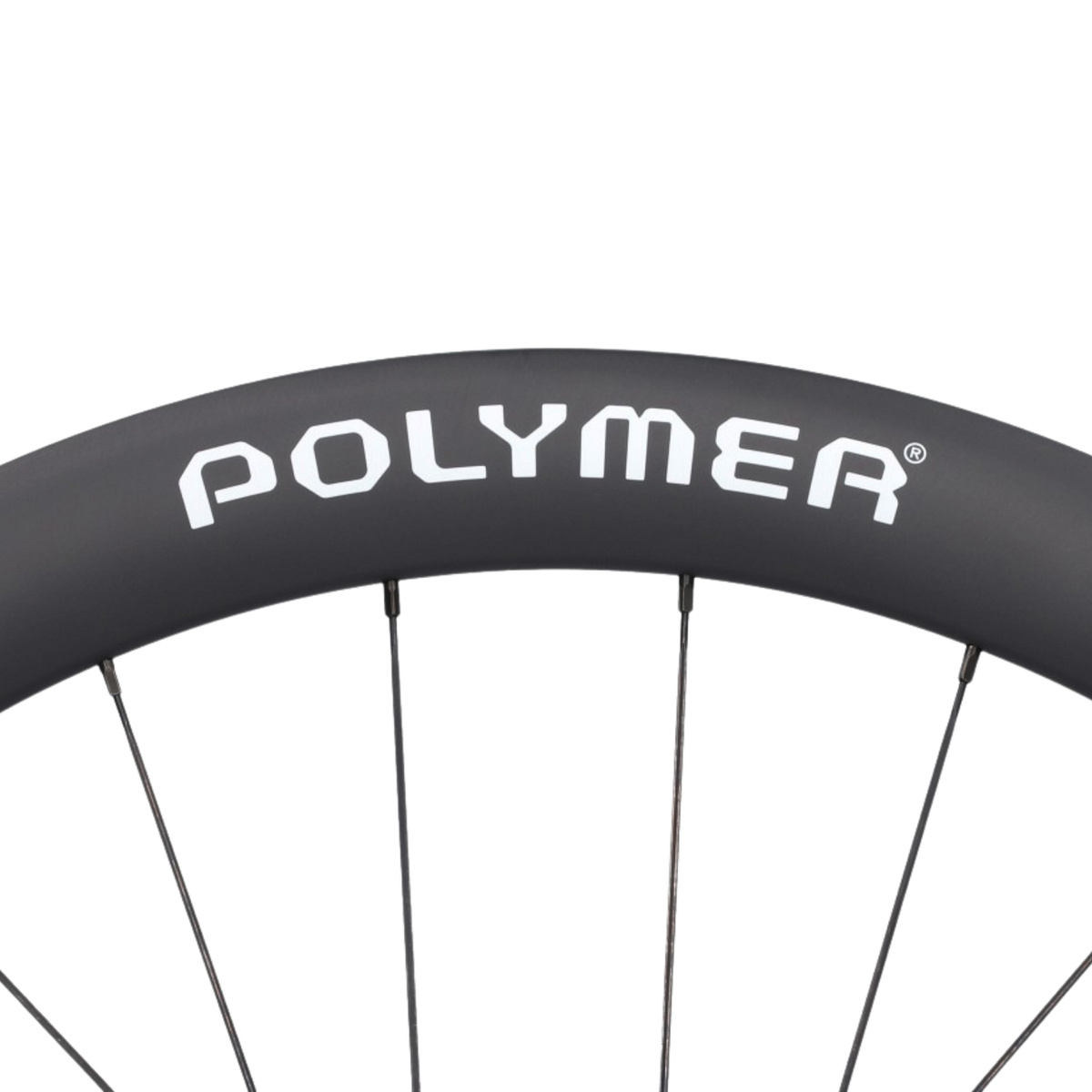

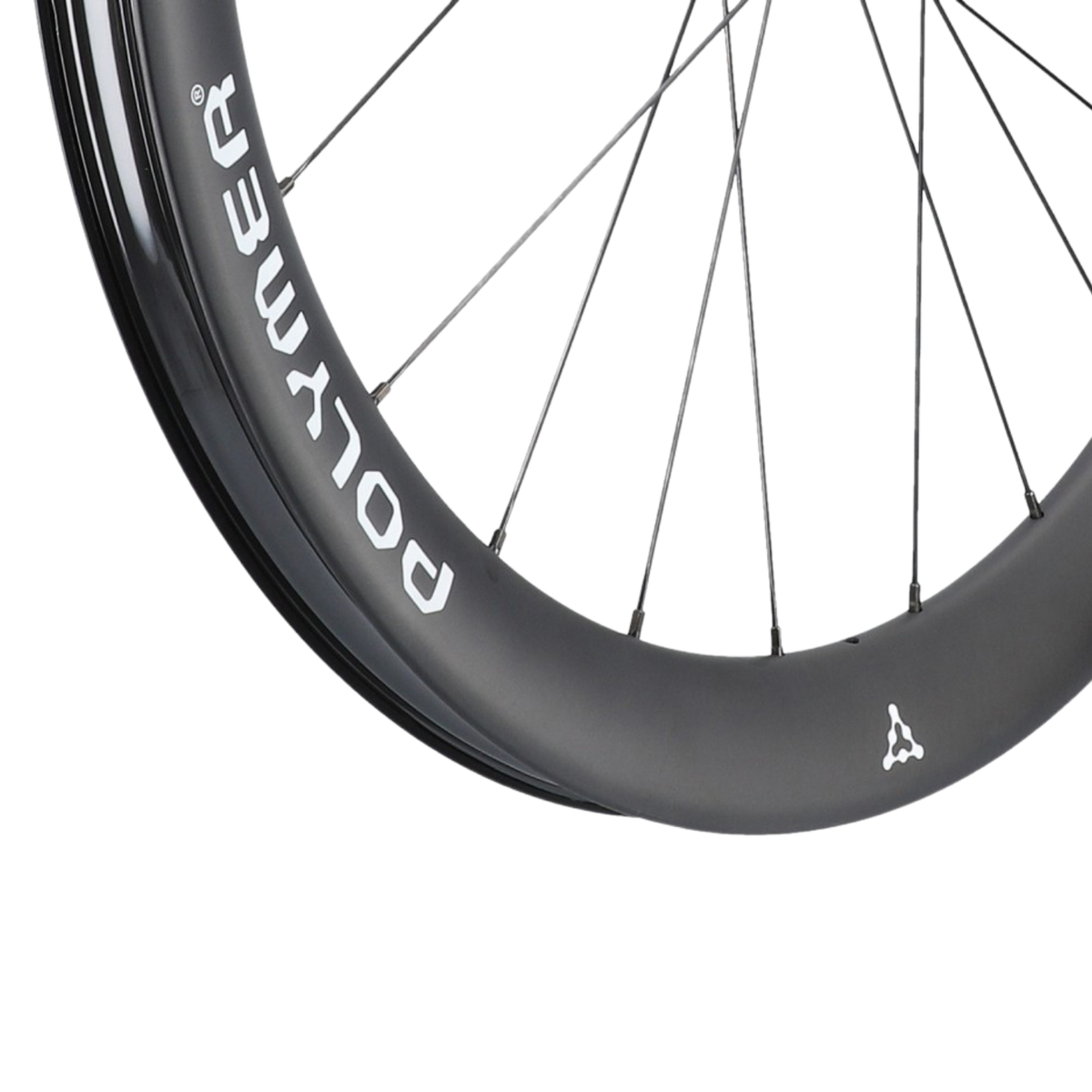

Rim Depth: Front 45 mm / Rear 50 mm
Rim Bead: Hookless
External Rim Width: 41 mm
Internal Rim Width: 33 mm

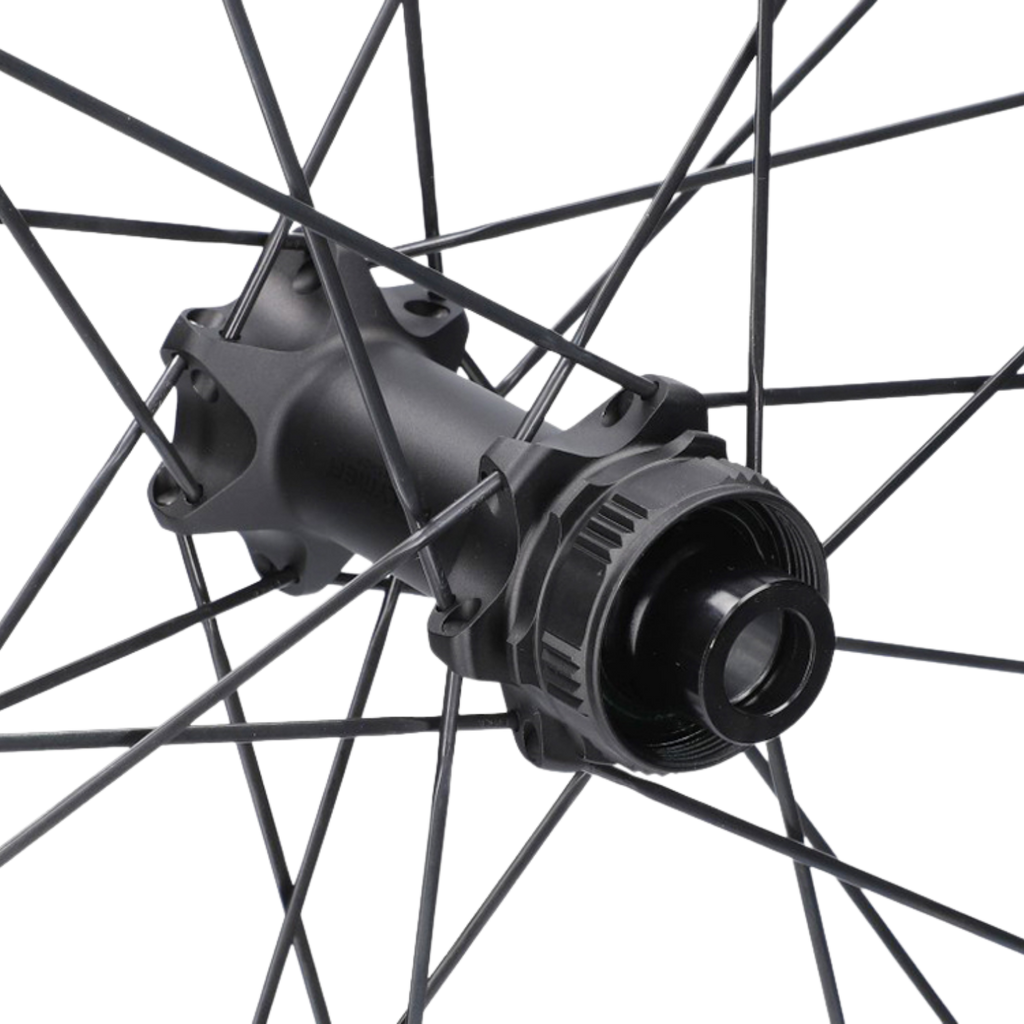

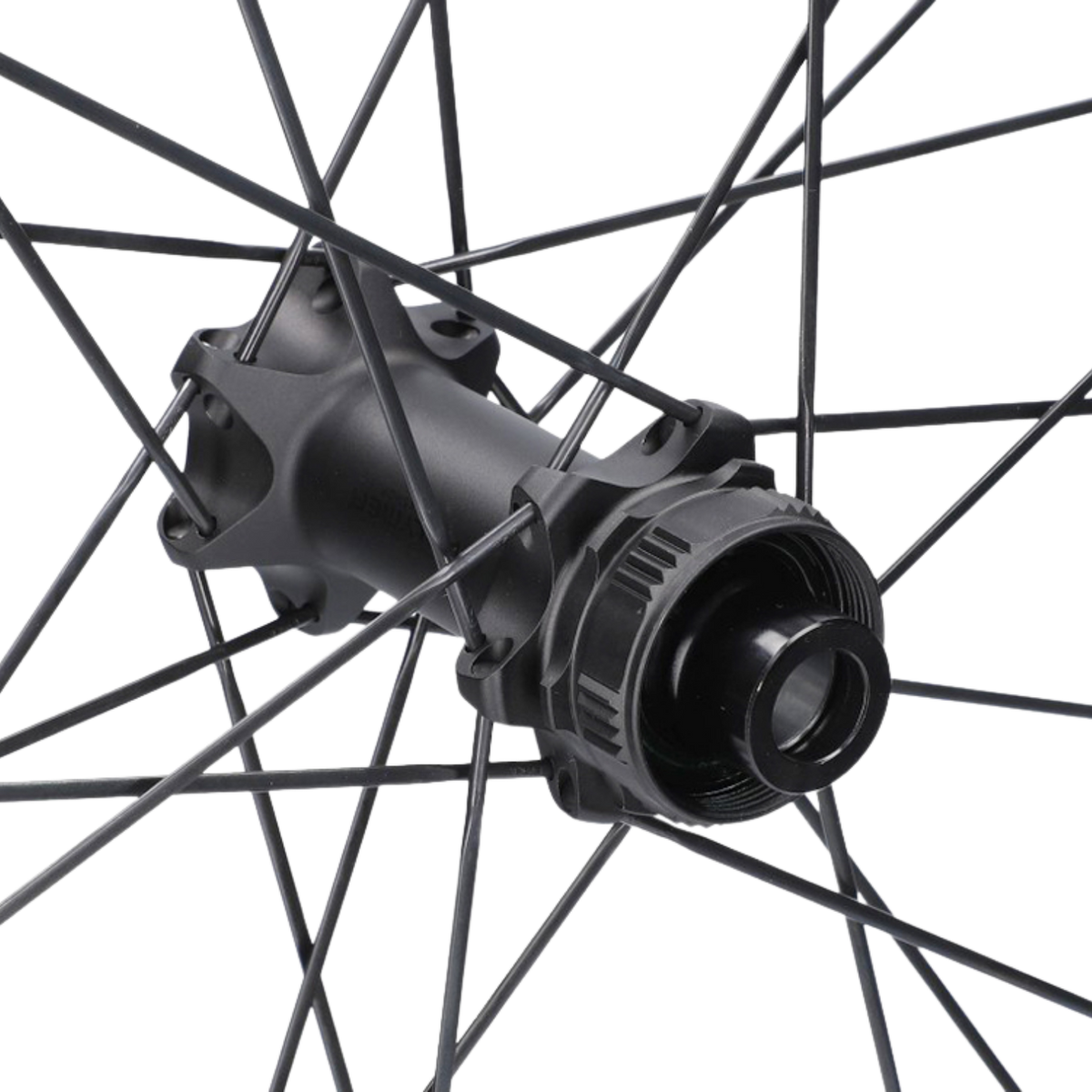

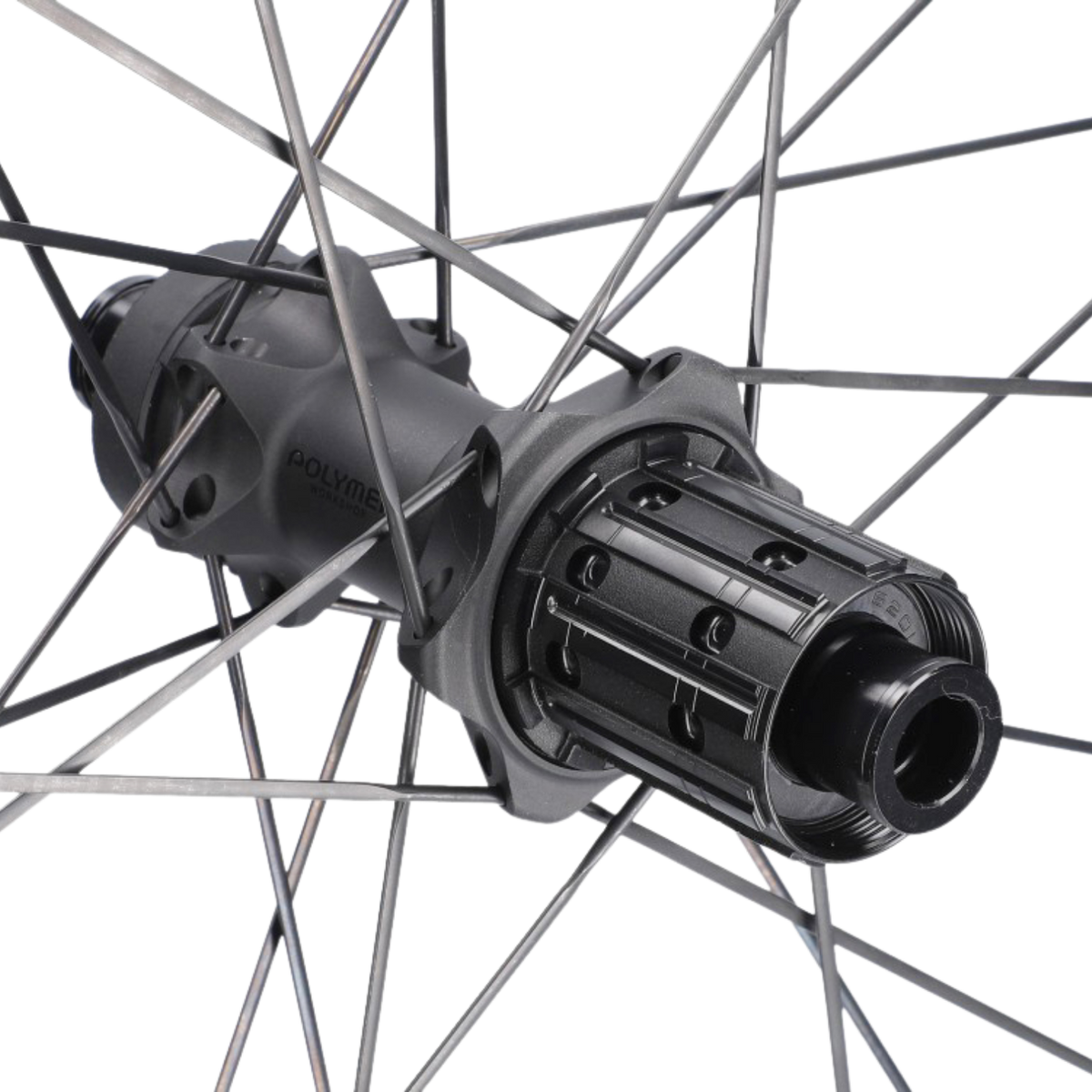

Hub: Front Polymer Workshop® 24S Hub / Rear Polymer Workshop® 24S Hub (36T)
Hub Weight: Front 90 g / Rear 215 g (No Body)
Hub Bearings: Front 2x 6803 / Rear 1x 6902, 3x 15267
Spoke Count: Front 24 (2:2) / Rear 24 (2:2)
Spoke Brand: Sapim® CX-Ray
Spoke Length Drive Side: Front 272 mm / Rear 266 mm
Spoke Length Non-Drive Side: Front 274 mm / Rear 268 mm
Nipple Brand: Sapim® Brass
Nipple Mounting: External
Nipple Lock Type: Sapim® Secure Lock
Recommended Tire Size: 40 mm–65 mm
Max Tire Pressure: 4.0 bar / 58 psi
Axle: Front 12x100 Thru Axle / Rear 12x142 Thru Axle
Brake Rotor Mount: Center Lock
Compatibility: Shimano 12 Speed, SRAM, Campagnolo
Rider Weight Limit: 120 kg
UCI Approved: Yes
Warranty: Lifetime
ISO Certification: ISO 4210-7

Mfr Claimed Weight
Front 655 g / Rear 787 g (Shimano Body)
