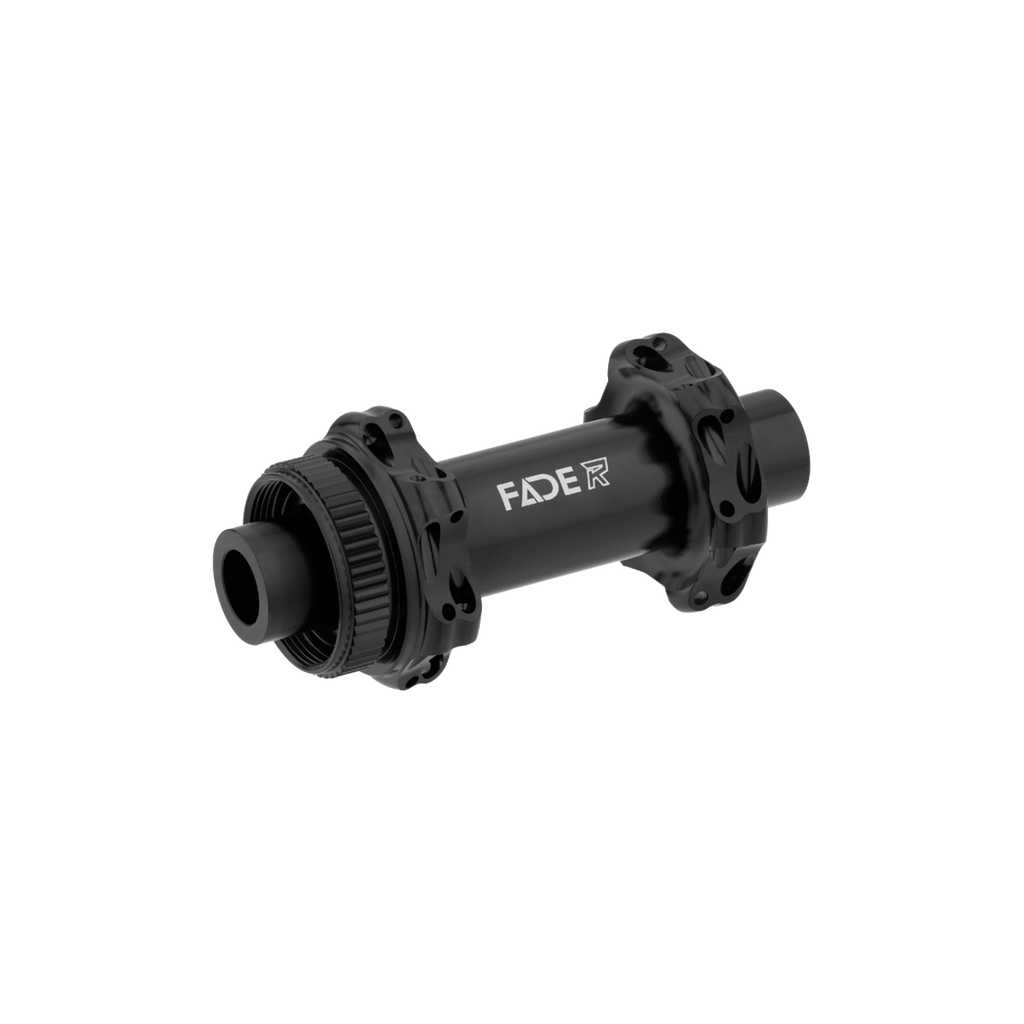

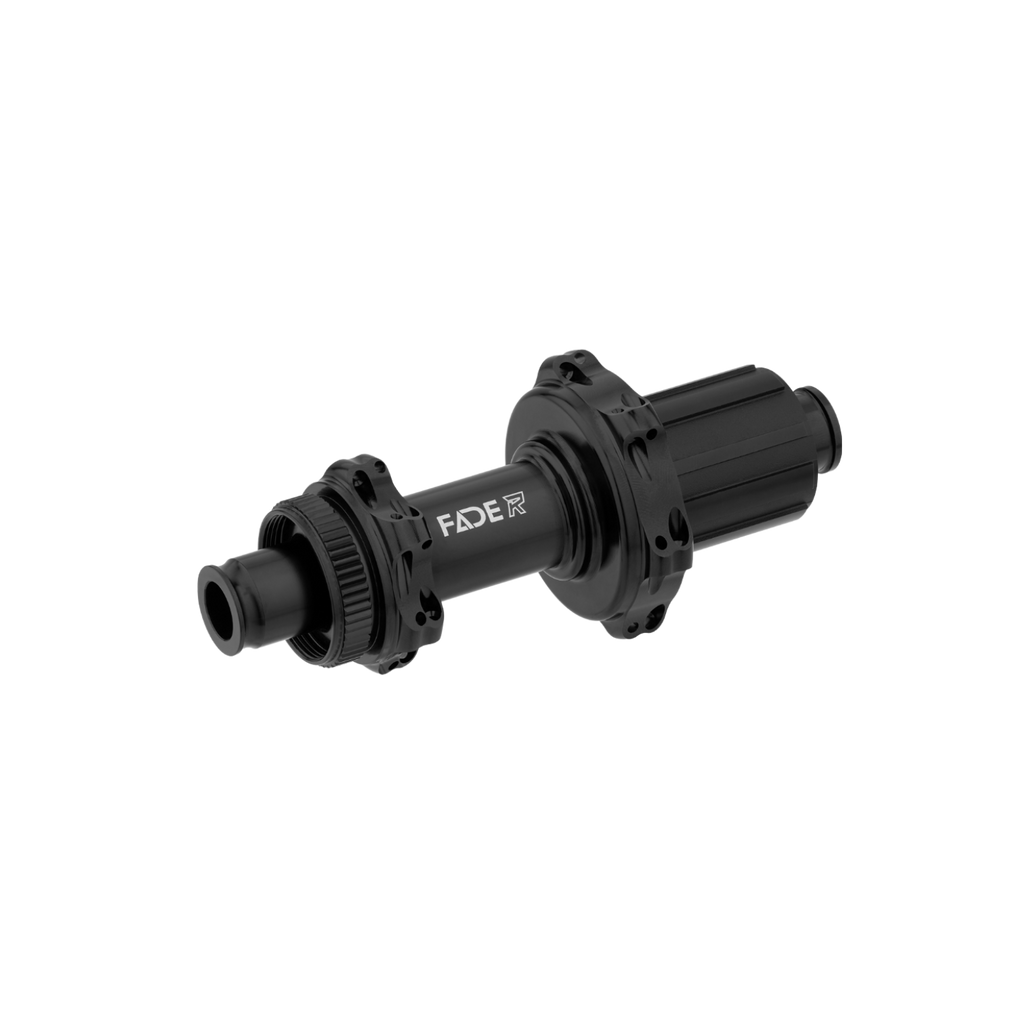

Our new FADE R hub series is a further development of the previous Newmen road wheel hubs. The new generations of shifting groupsets with larger cassettes are placing ever greater loads on the freehub. We have adapted the large-dimensioned FADE freehub system (36t) to the higher torques and can therefore also approve the FADE R hubs for e-road bikes. Three pawls are used instead of the frequently used ratchet system. The newly designed tooth profile ensures a significantly reduced freewheel noise and the three pawls are very short and wide, which ensures a large-area and therefore gentle power transmission. The FADE R hubs are optimised for the best possible aerodynamics thanks to the smallest possible body diameter. The rear wheel hubs can be combined with all freewheel systems and fit perfectly into the slim design of the front wheel hubs and rims. High-quality, double-sealed industrial bearings with a special lubricant are used in the lightweight FADE R hubs, ensuring smooth running and low rolling resistance.

Specifications
Freewheel: XDR / Shimano HG / Shimano Microspline Road
Max. System Weight: 130kg
Material: Aluminium
Brake Disc: Centerlock
Spoke Hole Number: 24h / 28h
Spoke Type: Straightpull
Axle Width: 12x100 / 12x142
Intended Use: Road/Gravel

Mfr Claimed Weight
100g / 211g
