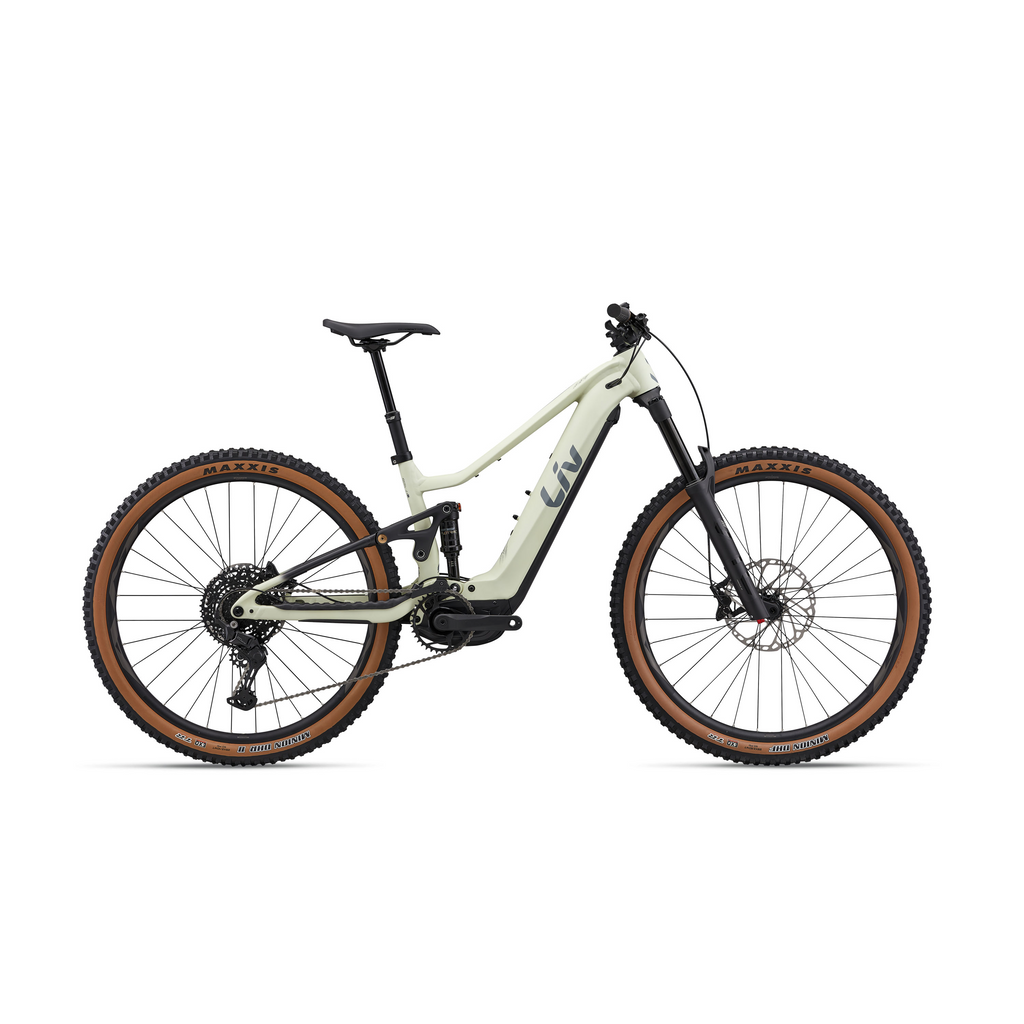

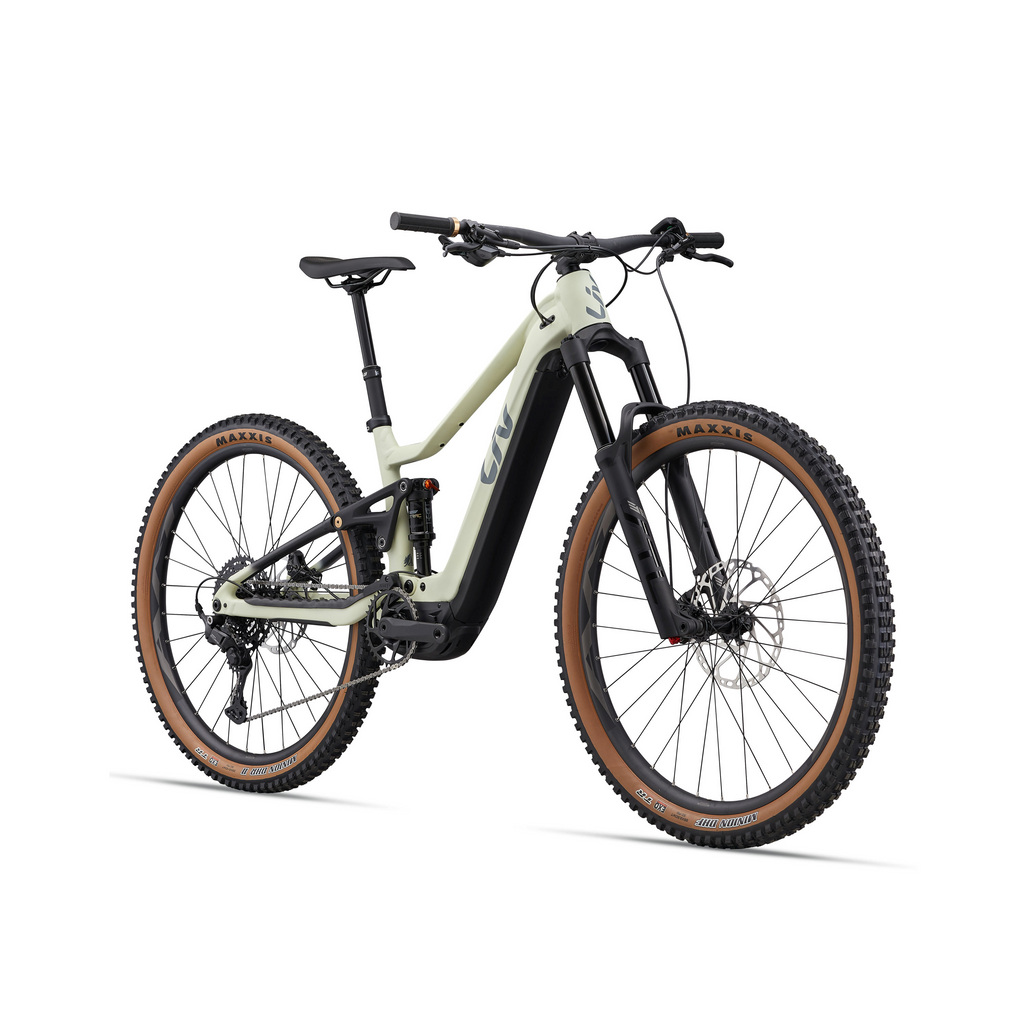

Liv Embolden E+ 1 Electric MTB - Pale Moss/Black

Liv Embolden E+ 1 Electric MTB - Pale Moss/Black

XS
$7,499.00 AUD
Skip to product information
Liv Embolden E+ 1 Electric MTB - Pale Moss/Black

Liv Embolden E+ 1 Electric MTB - Pale Moss/Black

$7,499.00 AUD
XS
SKU
6310002103
Barcode
4711291253124
S
SKU
6310002104
Barcode
4711291253131
M
SKU
6310002105
Barcode
4711291253148
L
SKU
6310002107
Barcode
4711291253155

(We can only consider Australian retailers)

Description

Designed to help riders explore farther and progress with confidence, the Embolden E+ pairs full-suspension control with smooth, intuitive electric support. From forest roads to real mountain singletrack, it makes new terrain feel welcoming and longer rides feel achievable—with less stress and more fun.
Key Performance Factors
CONFIDENT TRAIL CAPABILITY
With 150mm of front travel and 140mm at the rear, the suspension system is designed and tuned specifically for the Embolden E+ to deliver stability, traction, and predictable handling when trails get rough. The lightweight ALUXX SL-grade aluminum frame helps keep the bike manageable on climbs and more intuitive on singletrack, while the new FlexPoint Suspension design keeps the rear wheel active and controlled over uneven surfaces—helping the bike stay composed and easier to manage as trails get more technical.

POWER YOU CAN RELY ON
The SyncDrive Pro 3X motor delivers up to 100Nm with a smooth, natural response that closely follows rider input—making steep climbs and long days feel more manageable. Paired with Smart Assist and high-capacity EnergyPak Smart batteries, the system supports a trail range of approximately 50–120 km depending on terrain, elevation, and support mode, with the option to add an EnergyPak Plus range extender for longer adventures. This gives riders the practical freedom to explore new areas, ride longer loops, and confidently plan full trail days without range anxiety.

SMART INTEGRATION, BUILT TO LAST
Every part of the E+ System is developed to work together—from motor to battery to software—supporting durability, serviceability, and long-term value. Through the RideControl Dash 2 and RideControl app, riders can personalize how the bike responds and which ride data they see, making it easy to fine-tune support modes and power delivery to match terrain, fitness, and riding style. The system is fully supported through Liv retailers with diagnostics and firmware updates, while the in-house developed, industry leading battery chemistry delivers up to 2300 charge cycles, improving resale value and reducing waste. Integrated technologies, including Aegis tire pressure monitoring, e-locking and Apple Find My, add everyday security on and off the trail.

Motor Giant SyncDrive Pro3X, 36v, 100Nm, 800W peak power, PedalPlus 6-Sensor technology
Battery EnergyPak Smart 800Wh, EnergyPak Plus 200/240Wh range extender compatible
Controls Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
Display Giant RideControl Dash 2, full colour LCD display
Charger EnergyPak 4A smart charger
Frame ALUXX SL-grade aluminium, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDH, KSA40 compatible
Fork Giant STL 36 Air, 150mm travel, 5-position compression adjust, e-bike optimised, 110x15mm Boost axle, full fender compatible,  XS: (27.5), S, M, L: (29")
Shock Giant Crest FloTrac, 3-position lever, e-bike optimised
Handlebar Giant Connect TR35, 20mm Rise
Grip Liv Tactal Pro single lock-on
Stem Giant Contact  SL 35mm                                                                                                  XS:40mm, S:40mm, M:40mm, L:50mm
Seatpost Giant Contact Switch AT travel-adjustable dropper, remote                                                                            XS: 70-100mm travel / 30.9 x 315mm                                                                                       S: 110-140mm travel / 30.9 x 395mm                                                                            M: 140-170mm travel / 30.9 x 470mm                                                                                                                 L: 170-200mm travel / 30.9 x 530mm
Saddle Liv Contact Ergo Trail
Pedal Platform
Shifters Shimano CUES, SL-6000, 1x10
Front Derailleur N/A
Rear Derailleur Shimano Cues U6000, 10-speed, Shadow+
Brakes Shimano BR-M420, hydraulic disc, 4-piston, 220mm [F] 203mm [R]
Brake Levers Shimano BL-M401
Cassette Shimano Cues LinkGlide LG-30010, 10-speed, 11-48T
Chain Shimano Cues LinkGlideCN-LG500
Crankset Forged aluminium crank arms
  Steel direct mount, 36T chain ring
XS:160mm, S: 160mm, M:165mm, L:165mm
Bottom Bracket N/A
Rims Giant AM Tubeless ready Alloy Tubeless ready,                                                                   27.5" F&R for frame sizes XS/S,
 29"F&R for frame sizes M/L
Hubs Shimano TC500 Boost, Center-Lock, 15x110mm [F] 12x148mm [R], 32H
Spokes Stainless
Tyres [F] Maxxis Minion DHF 27.5x2.5" (XS), 29x2.5" (S, M, L) WT, TLR, EXO, tubeless,                                                                                                                [R] Maxxis Dissector 27.5x2.4" (XS), 29x2.40" (S, M, L) WT, TLR, EXO, tubeless
Extras Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool), MRP 1x HD guide, CS e-Mount, 32~38T Adjustable
Embolden E+
(F 150mm/ R 140mm)
XS S M L
A  Seat tube length  380 395 425 455
A1 Seatpost insertion 215 230 260 290
B Seat tube angle (Degrees) 77.5 76.5 76.5 76.5
C Top tube length 555 575 595 615
D Head tube length  105 105 115 125
E Head tube angle (Degrees)  64.5 64.5 64.5 64.5
F Fork rake  44 44 44 44
G Trail  119 129 129 129
H Wheelbase  1217 1226 1248 1270
I Chainstay length  468 468 468 468
J Bottom bracket drop  20 40 40 40
K Stack  619 619 628 637
L Reach  417 426 444 462
M Standover height  689 710 726 736
N Handlebar width  750 750 780 780
O Stem length  40 40 40 40
P Crank length  165 165 165 165
Q1 Wheel size (front) 27.5" 29" 29" 29"
Q2 Wheel size (rear) 27.5" 29" 29" 29"
