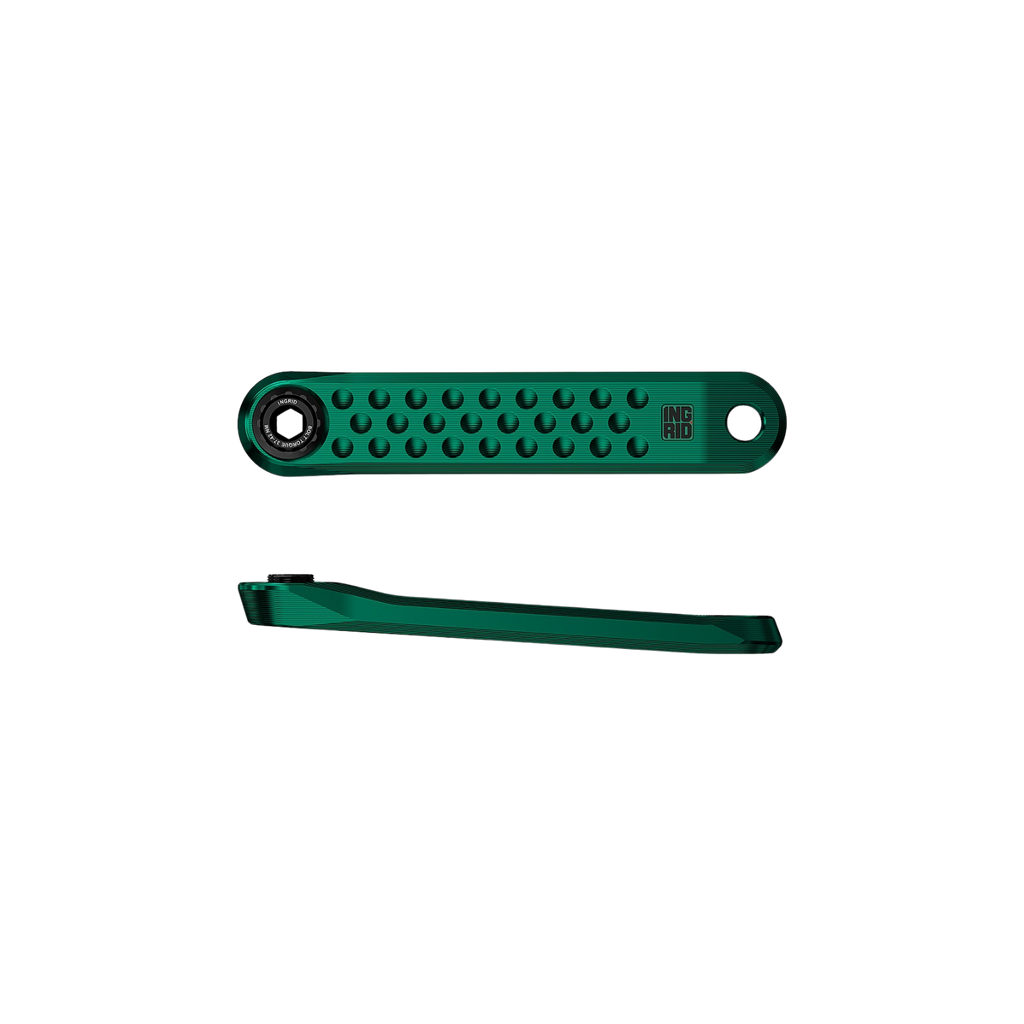

Since when we first thought this crankset we tried to find a new way to make it simple, with a good stiffness-weight ratio and of course reliable.

We studied the strange “sponge structure” visible on the back side.
Then we decided to show the dots even in the main side and create a pattern that was used by one of the most important pop artist, Roy Lichtenstein.

Its purpose is xc, cx, from gravel till light trail. But even Bike packing and Grand Tour.

Compatible with any of our chainrings and spindles.

Specifications
Crank length: S (166.25) | M (170) | L (173.75)

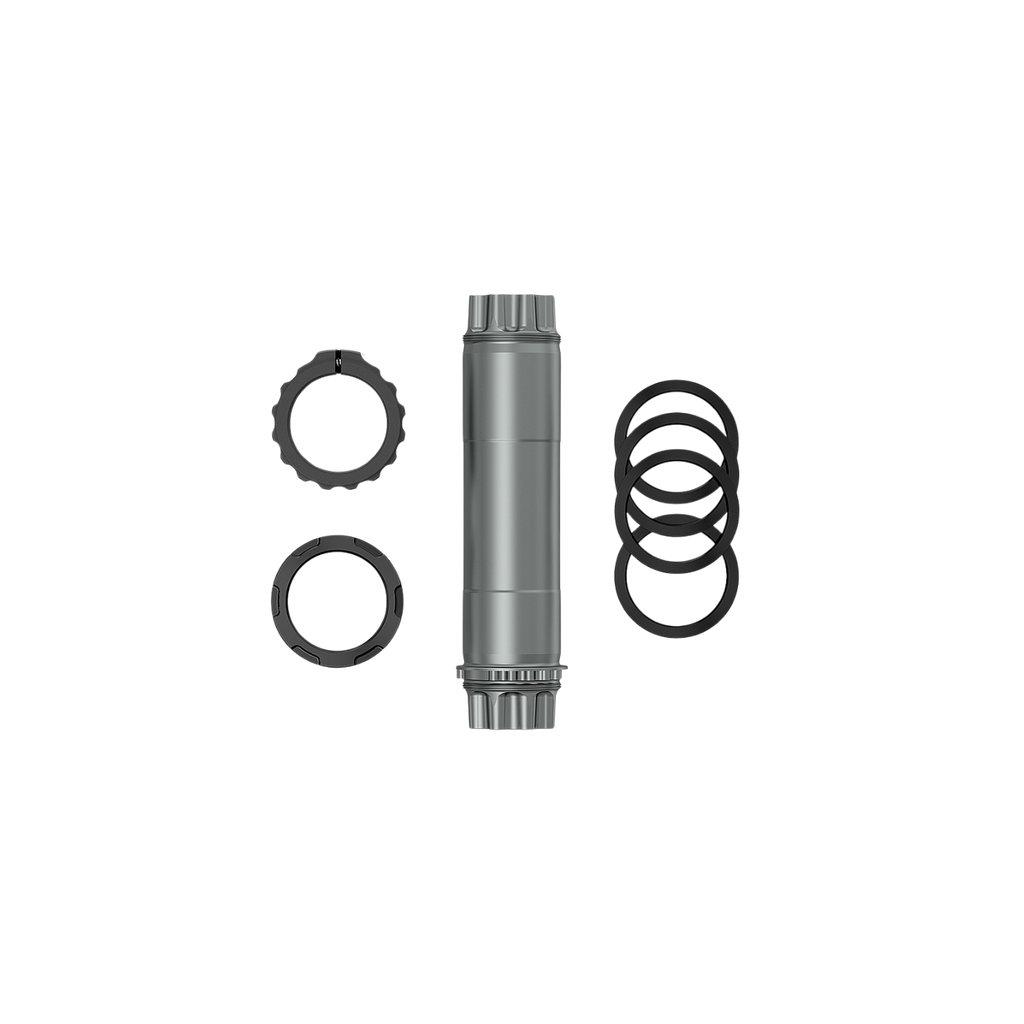

Spindle: 30 mm
Chainrings: All INGRID chainrings and spider | SRM Origin PM (with dedicated spindle)
Chain compatibility: 11s | 12s | 13s (Campagnolo Ekar, SRAM Flattop)
K-factor: 91.5 mm (L131) | 96.5 mm (L136) | 101.5 mm (L141)
Q-factor: 163 mm (L131) | 168 mm (L136) | 173 mm (L141)
Chainline: 49.5 mm (L131) | 52 mm (L136)
Chainline (aero chainrings): 47.5 mm (L131) | 50 mm (L136)
Chainline (spider 110x5): 45.5 mm (L131) | 48 mm (L136)

Mfr Claimed Weight
520 g (M cranks, L131 spindle, without chainring)
