Description

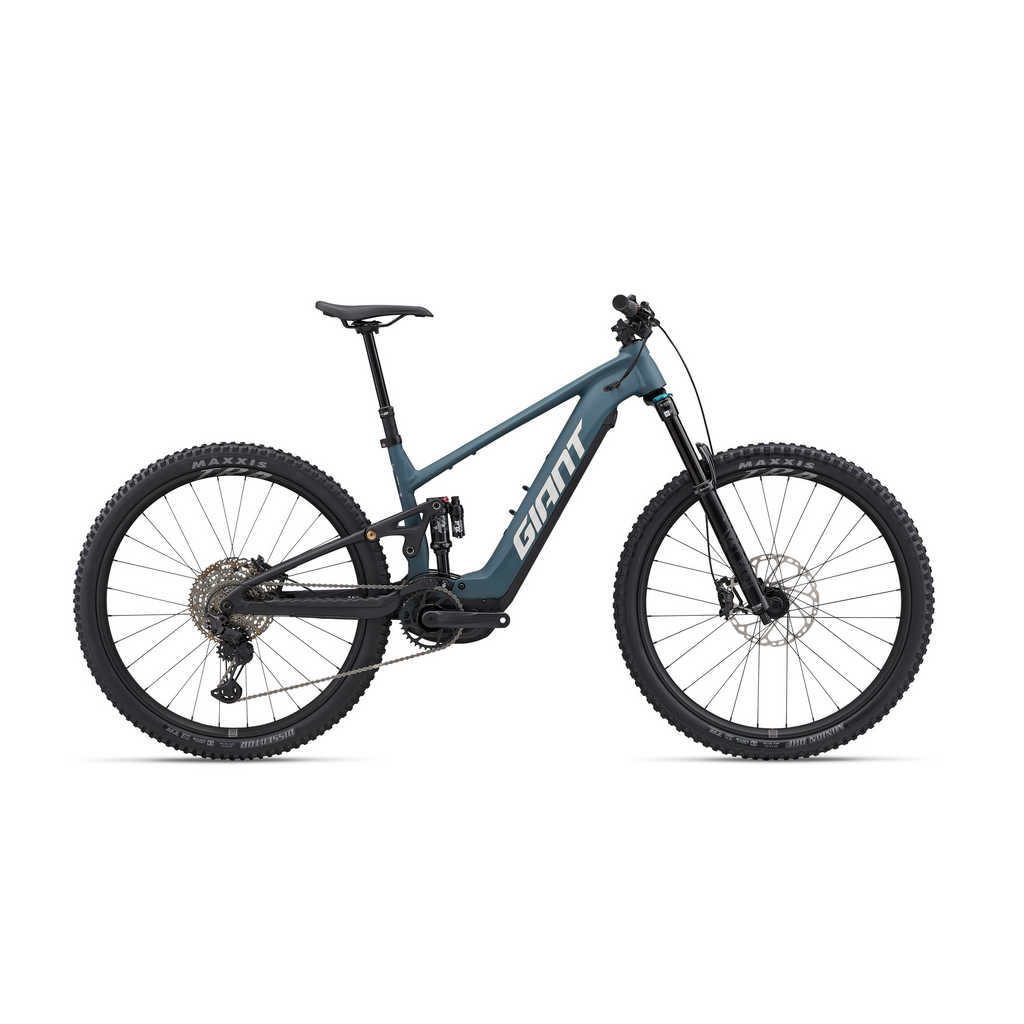

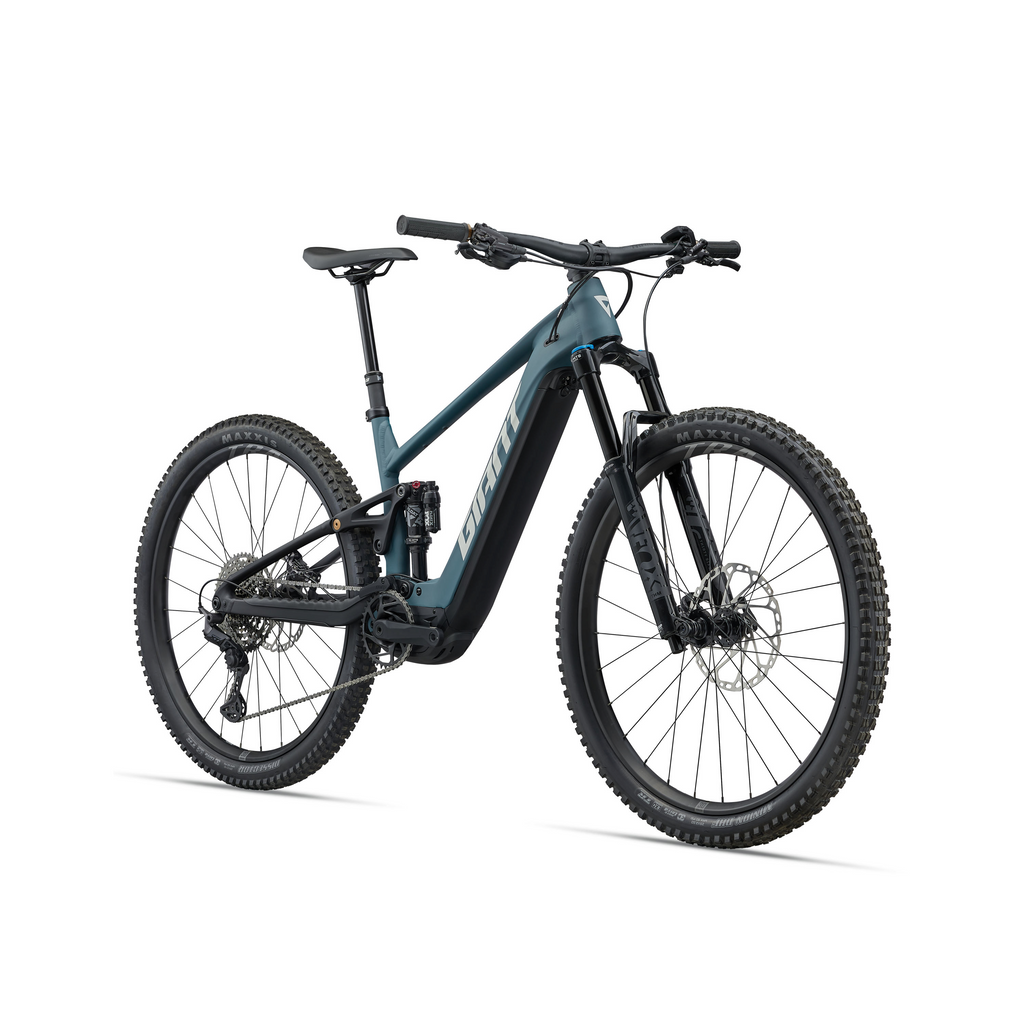

More power. More confidence. More fun on every trail. The new Stance E+ elevates your ride with a refined suspension setup, updated geometry, and a serious boost in power and torque. The result is a more capable, ultra-dynamic E-MTB that charges up climbs, stays composed on tricky descents, and gives you total control for any terrain.
Key Performance Factors
DYNAMIC POWER
The new SyncDrive Pro 3X motor transforms the Stance E+ with a massive boost in performance. Building on the lightweight 2.6kg design of the Pro 3 motor, it delivers up to 800W of peak power with 100Nm of torque. This results in an 11% improvement in torque-to-weight ratio, providing stronger climbing performance and better control in technical terrain. It’s engineered to maintain powerful assist levels at a wide range of cadences, giving you sustained support over longer periods. Beyond the motor, rear suspension is engineered with enhanced anti-squat to minimize energy loss and improve pedaling efficiency.
TOTAL TRAIL CONFIDENCE
New FlexPoint suspension delivers 140mm of active rear travel paired with a 150mm fork for smoother, more capable handling than the previous generation’s 125/140mm setup. Updated geometry further elevates performance. A steeper 76.5-degree seat tube angle puts you in a stronger, more efficient climbing position, while a slacker 64.5-degree head tube angle and increased bottom bracket drop lower the center of gravity for greater stability and control. The result is total confidence when the trail gets fast, steep, and technical.
PERSONALIZED RIDE
From controller setup to fine-tuning motor performance, the new Giant E+ System makes it easy to customize your ride. Support modes are clearly color-coded, and the RideControl Dash 2 lets you decide exactly which data you want to see. You can run a lighter weight 625Wh battery or the longer lasting EnergyPak Smart 800 (which comes on the Stance E+ 0 and Stance E+1), and you also have the option to add an EnergyPak Plus 250Wh or 200Wh range extender for epic days out. Using the RideControl App, you can adjust power outputs and optimize your balance of torque, efficiency and range—so you’re always ready to take on whatever the trail calls for.
| Motor | Giant SyncDrive Pro3X, 36v, 100Nm, 800W peak power, PedalPlus 6-Sensor technology |
| Battery | EnergyPak Smart 800Wh, EnergyPak Plus 200/240Wh range extender compatible |
| Controls | Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels |
| Display | Giant RideControl Dash 2, full colour LCD display |
| Charger | EnergyPak 4A smart charger |
| Frame | ALUXX SL-grade aluminium, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDH, KSA40 compatible |
| Fork | Fox 36 Rhythm E-Tuned, 150mm travel, 44mm offset, GRIP damper, Boost Kabolt-X 110x15mm |
| Shock | Fox Float X Factory, EVOL Large Volume sleeve, 2 position lever, custom tuned |
| Handlebar | Giant Contact TR35, 20mm Rise |
| Grip | Giant Tactal Pro single lock-on |
| Stem | Giant Contact SL 35mm S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost | Giant Contact Switch AT travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm |
| Saddle | Giant Contact Ergo Trail |
| Pedal | Platform |
| Shifters | Shimano CUES, SL-6000, 1x11 |
| Front Derailleur | NA |
| Rear Derailleur | Shimano Deore XT 11-speed Shadow+ |
| Brakes | Shimano Deore XT, BR-M8120, hydraulic disc 4-piston, 220mm [F] 203mm [R] |
| Brake Levers | Shimano Deore XT BL-M8100 |
| Cassette | Shimano Cues LinkGlide LG-40011, 11-speed, 11-50T |
| Chain | Shimano Cues LinkGlideCN-LG500 |
| Crankset | Forged aluminium crank arms Steel direct mount, 36T chain ring S:165mm, M: 165mm, L:165mm, XL:165mm |
| Bottom Bracket | N/A |
| Rims | Giant TRA2 Hookless Tubeless ready Alloy 29" 30mm inner width |
| Hubs | Giant E-Drive 260Nm, 72T engagement, boost, 15x110mm [F] 12x148mm [R], e-bike optimised, 28H |
| Spokes | Sapim Race |
| Tyres | [F] Maxxis Minion DHF 29.x2.5 WT, TLR, EXO, 3C Maxx Terra, tubeless, [R] Maxxis Dissector 29x2.4 WT, TLR, EXO+, tubeless |
| Extras | Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool), MRP 1x HD guide, CS e-Mount, 32~38T Adjustable |
| Stance E+ (F150/R140) |
S | M | L | XL | |
| A | Seat tube length | 400 | 425 | 450 | 475 |
| A1 | Seatpost insertion depth | 235.0 | 260.0 | 285.0 | 310.0 |
| B | Seat tube angle (Degrees) | 76.5 | 76.5 | 76.5 | 76.5 |
| C | Top tube length | 579 | 606 | 635 | 663 |
| D | Head tube length | 100 | 115 | 130 | 145 |
| E | Head tube angle (Degrees) | 64.5 | 64.5 | 64.5 | 64.5 |
| F | Fork rake | 44 | 44 | 44 | 44 |
| G | Trail | 132 | 132 | 132 | 132 |
| H | Wheelbase | 1229 | 1259 | 1291 | 1322 |
| I | Chain stay length | 468 | 468 | 468 | 468 |
| J | Bottom bracket drop | 26 | 26 | 26 | 26 |
| K | Stack | 614 | 628 | 641 | 655 |
| L | Reach | 431 | 455 | 480 | 505 |
| M | Standover height | 746 | 744 | 756 | 762 |
| N | Handlebar width | 780 | 780 | 780 | 780 |
| O | Stem length | 40 | 40 | 50 | 50 |
| P | Crank length | 165.0 | 165.0 | 165.0 | 165.0 |
| Q | Wheel size | 29" | 29" | 29" | 29" |
