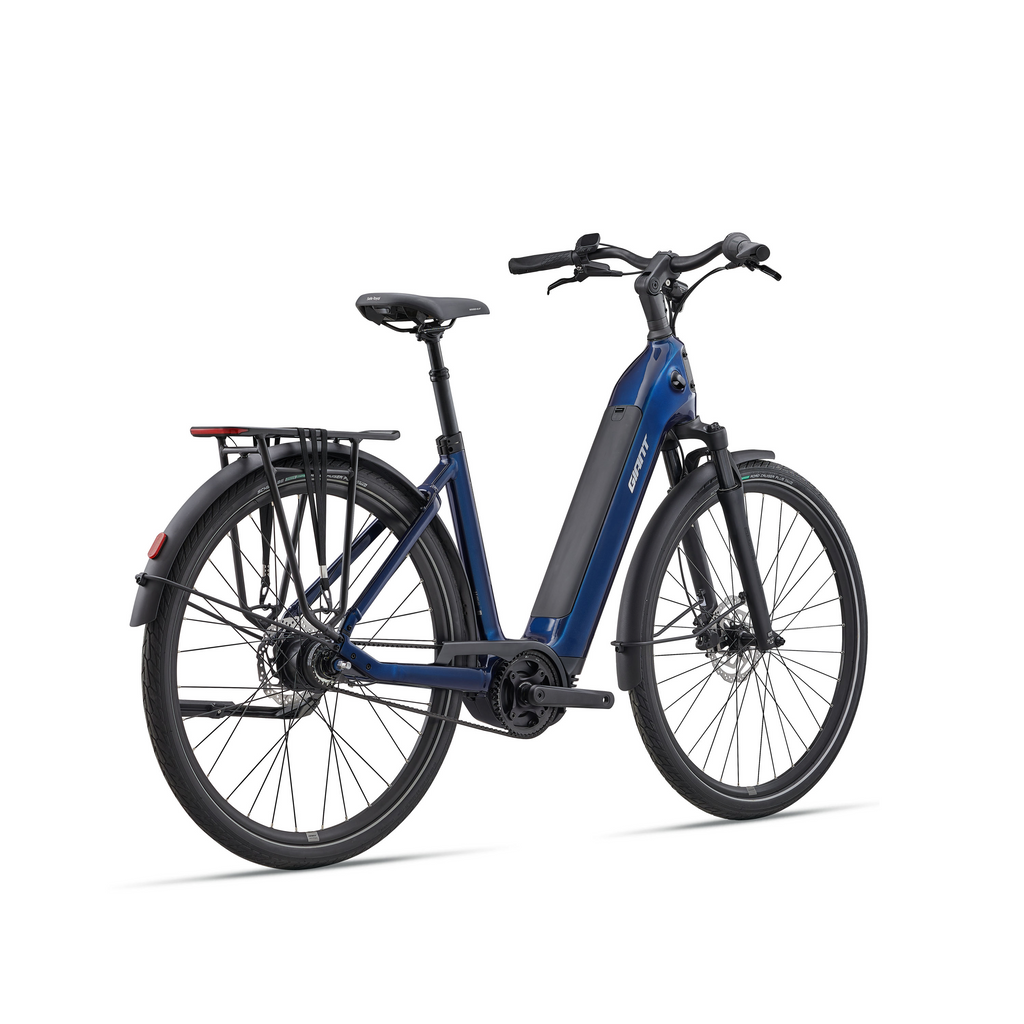

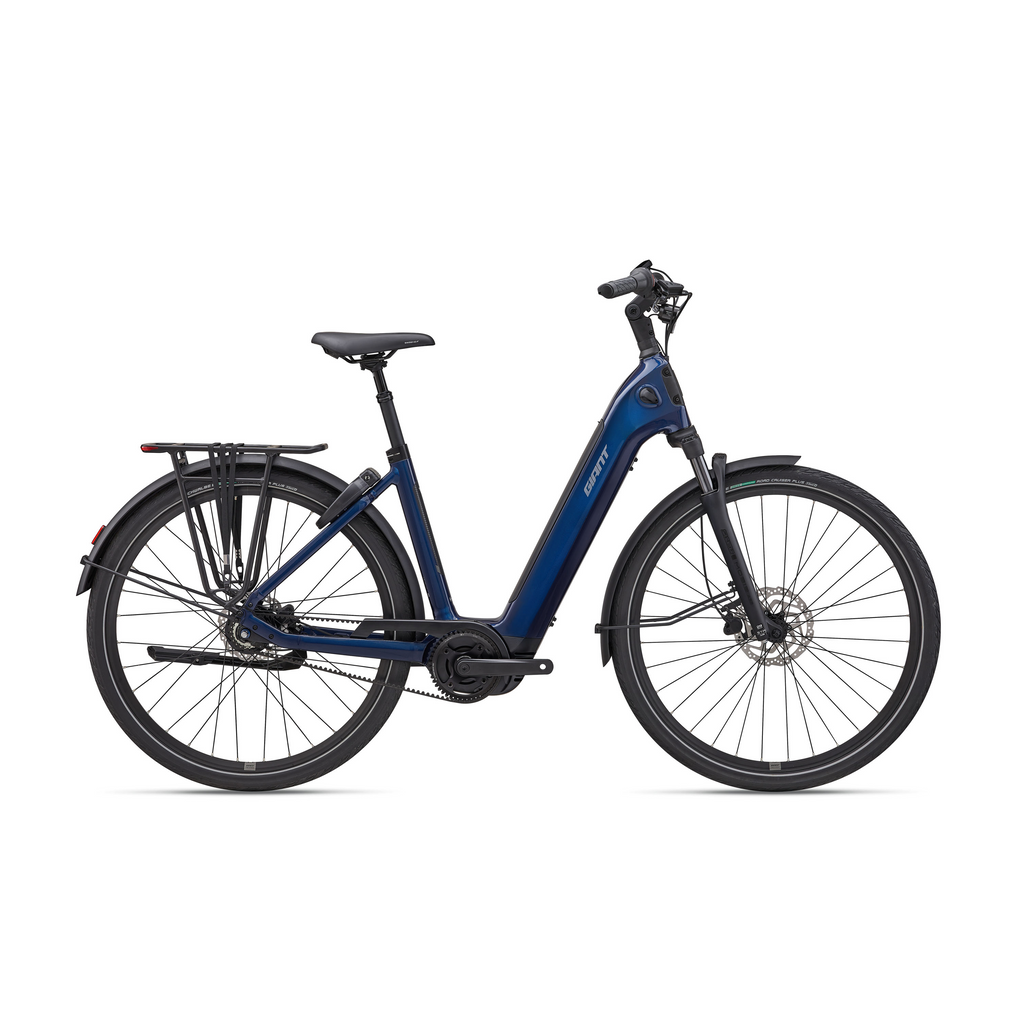

Exploration feels best when the ride is effortless and intuitive. The NewTour E+ pairs an upright, confidence-inspiring ride feel with thoughtful design, creating an E-bike that moves smoothly from city streets into parks, open routes and beyond.
Key Performance Factors
COMFORT IN MOTION
Ease and stability define the ride experience. Upright geometry combined with a comfort-focused setup creates a relaxed, confidence-inspiring feel, while suspension in both the fork and seatpost helps smooth rough pavement and shared paths. This balanced approach keeps the ride composed as conditions change, encouraging longer outings without constant adjustment.

SECURE, CONNECTED RIDING
Peace of mind is built into every ride. Integrated E-bike security features, including E-lock, disable motor assistance and trigger an alarm if the bike is moved while locked, while Apple Find My integration enables location tracking and monitoring. Together, these systems help riders feel confident leaving the bike and ready to ride again.

SEAMLESS DESIGN & INTEGRATION
Every detail is designed to feel intentional and refined. Clean cable routing through the head tube badge, integrated lighting, and compatibility with practical accessories create a cohesive design that balances everyday usability with a premium appearance—supporting both the ride experience and the bike’s visual identity.

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak 625 / SyncDrive Core2 55Nm

Range Extreme: 93 km - Good: 140 km - Ideal: 206 km



Wheels
Rims	Giant GX03, Aluminium
Hubs	Shimano HB-QC300 [F] Shimano Nexus 8 disc brake [R]
Spokes	Stainless steel [F] Stainless steel 13-14G butted [R]
Tyres	Schwalbe Road Cruiser Plus, 29"x50C, Wire Bead w/ reflective stripe
Extras	KSA18 direct mount kickstand
Accessories
Lighting	Giant Recon HL50, 50 lux [F] Carrier integrated tail light [R]
Lock	ABUS Xplus battery lock
Carrier	MIK rack. System bag & basket compatible
Fender/Chainguard	Aluminium

	S	M	L	XL
A Seat Tube Length (mm)	450	500	550	600
B Seat Tube Angle	75.7°	74.2°	72.8°	71.2°
C Top Tube Length (mm)	590	605	620	635
D Head Tube Length (mm)	170	170	170	170
E Head Tube Angle	69.0°	69.0°	69.0°	69.0°
F Fork Rake (mm)	44	44	44	44
G Trail (mm)	95.7	95.7	95.7	95.7
H Wheelbase (mm)	1155	1155	1155	1155
I Chain Stay Length (mm)	482.3	482.3	482.3	482.3
J Bottom Bracket Drop (mm)	75	75	75	75
K Stack (mm)	672	672	672	672
L Reach (mm)	405	405	405	405
O Stem Length (mm)	70	70	90	110
P Crank Length (mm)	170	170	170	170
Q Wheel Size	622X50	622x50	622X50	622X50
