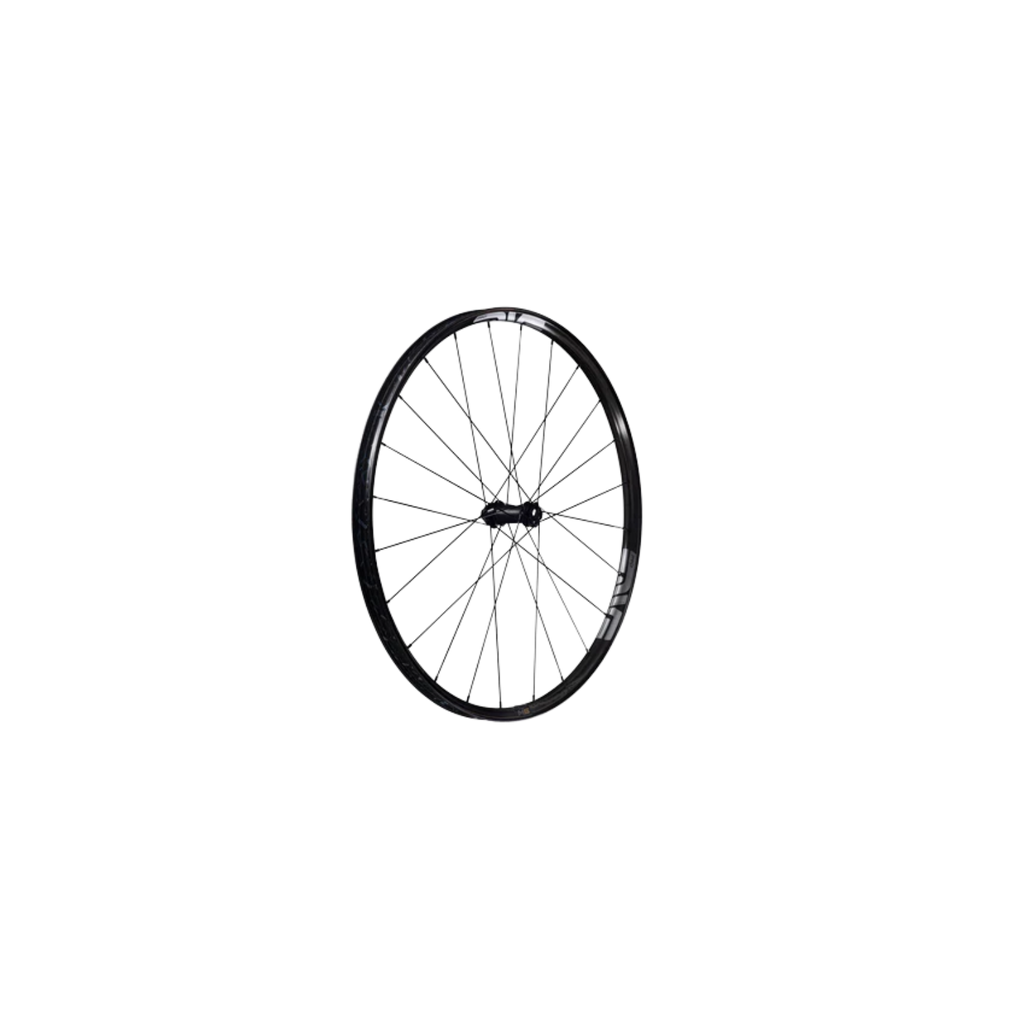

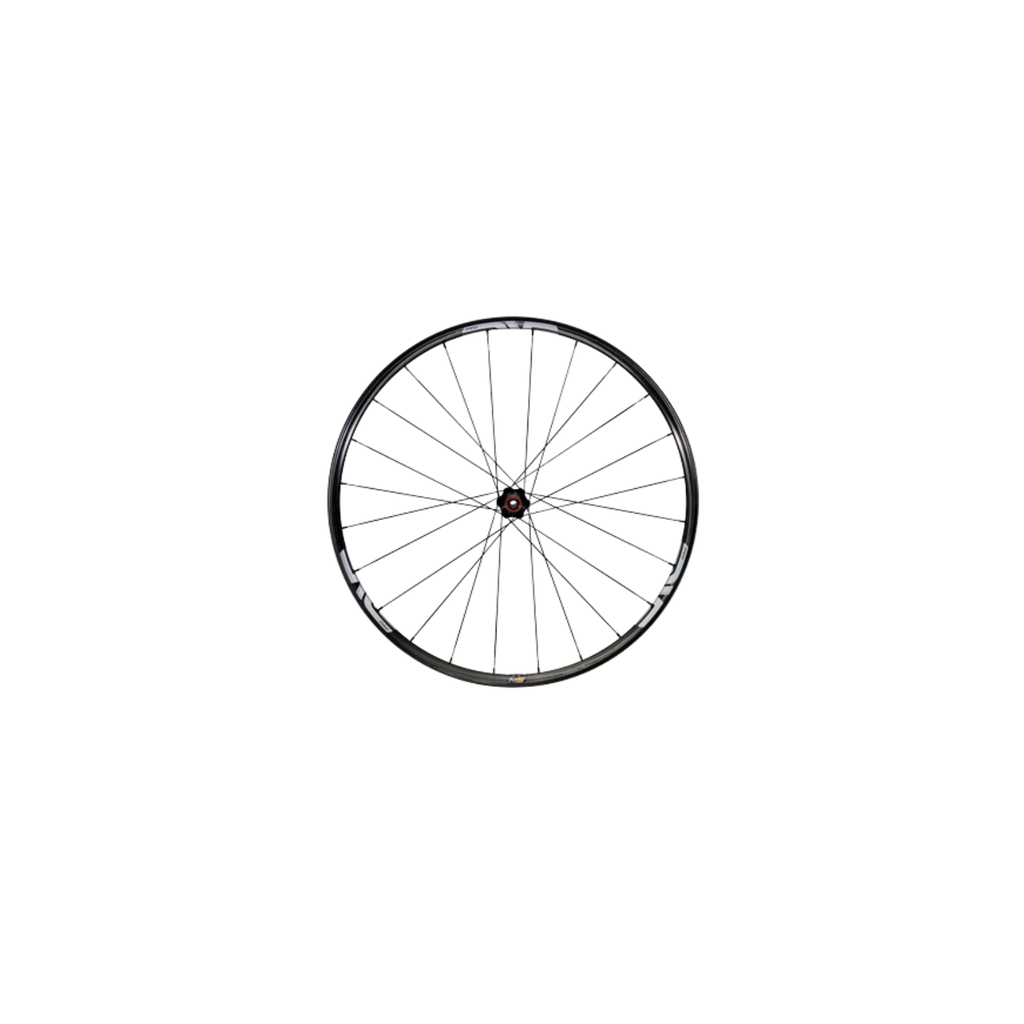

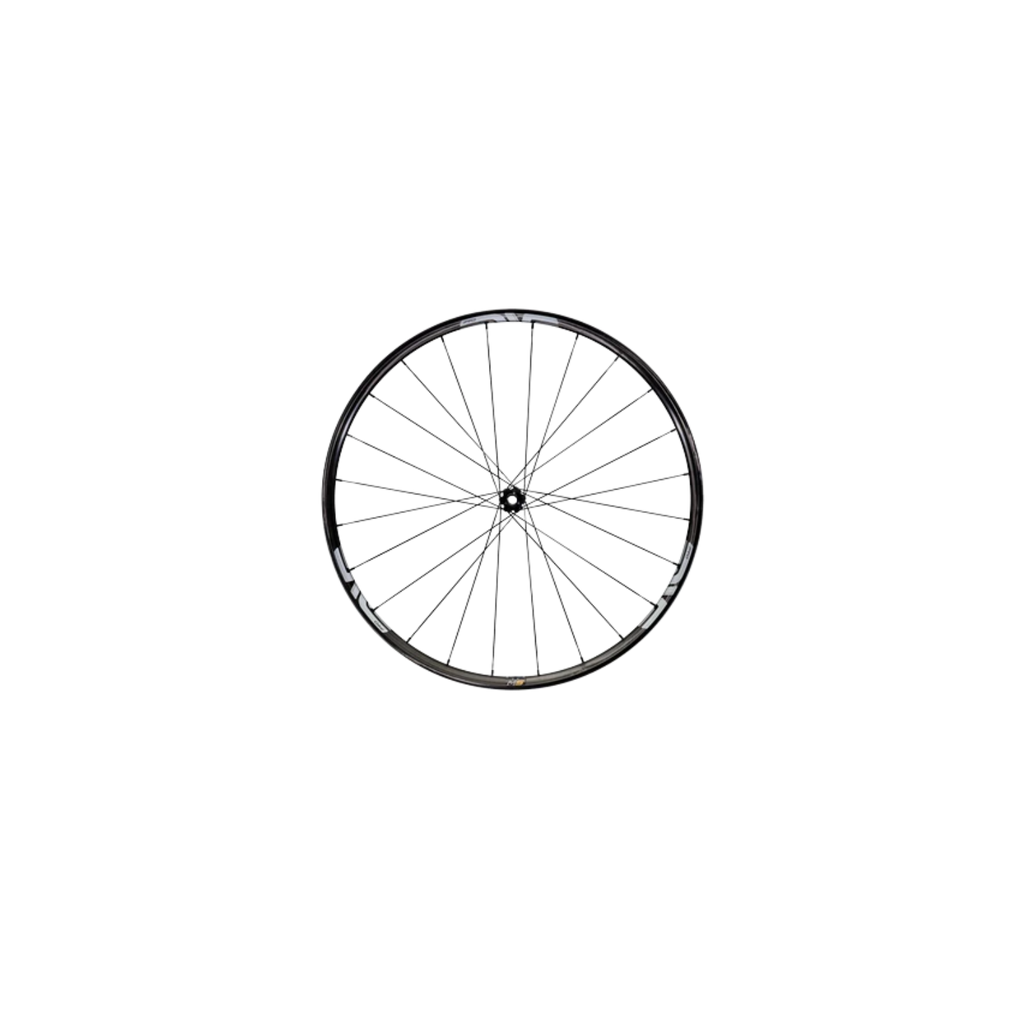

The all-new M5 Pro builds upon a legacy of cross-country racing performance with the ultimate balance of weight savings, power transfer, and durability. The “Pro” designation indicates the M5’s no-holds-barred approach to its development and racing pedigree. Built to ENVE’s INNERDRIVE hubs, the M5 Pro is ready for the most challenging XC race tracks.

Features
Built for cross-country race applications
1325g total system weight with tape and valves
Front and rear-specific construction and geometry
Inner-Rim Width Front: 29mm
Inner-Rim Width Rear: 27mm
Wide Hookless Bead: XC optimized anti-pinch flat protection
Alloy external nipples with Nyloc thread-locking inserts
Backed by ENVE’s 5-year Factory Warranty and Incidental Damage Protection

Specifications
Internal Rim Width: Front 29mm / Rear 27mm
Hook Width: Front 4.2mm / Rear 4.7mm
Hole Count: Front 24 / Rear 24
Depth: Front 20mm / Rear 20mm
Pinch Flat Technology: Wide Hookless Bead
Spokes: Alpina Ultralite OH
Spoke Length (INNERDRIVE Hubs): Front 300mm / Rear 300mm
ERD: 603mm ± 2mm
Nipples: Alpina Nylock Alloy External
Spoke Tension: 120kgf
Brake Type: Centerlock

Mfr Claimed Weight
Front 345g / Rear 360g
