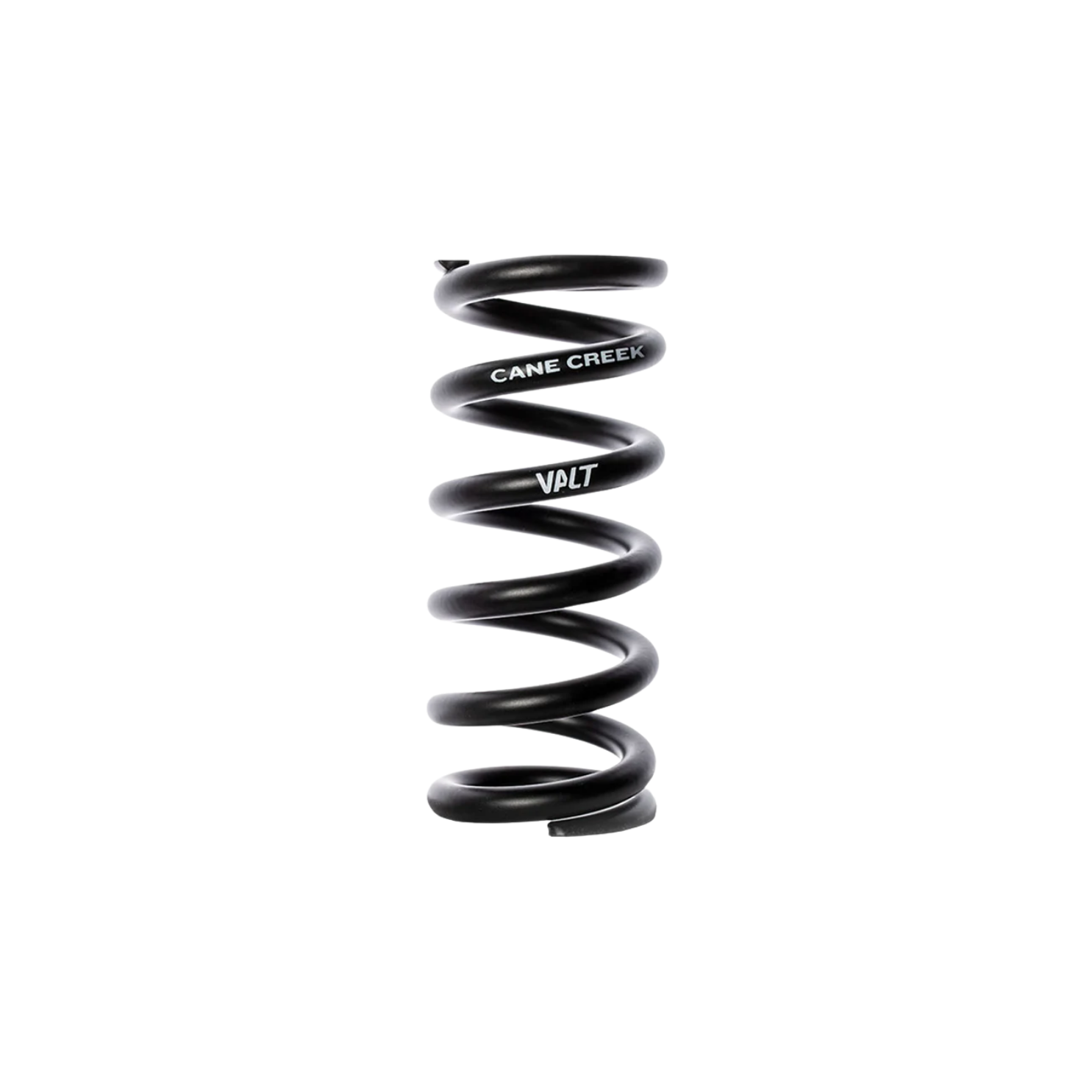

The performance of your shock is directly related to the quality of your spring. VALT springs offer a significant weight reduction over standard steel springs. Riders can enjoy the performance benefits of coil shocks without the weight penalty.

Progressive-Rate VALT coil springs are designed and tuned by Cane Creek’s engineering team to provide riders with a true rise-in-rate spring curve. The Progressive-Rate VALT springs maintain the sensitivity and “set it and forget it” mentality of a traditional coil set up, but with the progressiveness and ramp up that hard-charging riders and many frame designs demand. Progression begins at 50% into the stroke of the spring.

The graph in the gallery shows the difference in spring progressiveness between our linear VALT spring and our Progressive-Rate VALT spring. Rate increases are proportional to a DB Kitsuma Air air spring with (1) volume spacer installed

Specifications
Materials: High-performance spring steel
Inner Diameter: 36.5mm
Outer Diameter: 52.5–54mm
Color and Finish: Progressive springs—gloss white; Linear springs—matte black or gloss white
Fitment: All Cane Creek coil shocks

Mfr Claimed Weight
Progressive VALT springs—380–465g*; Linear VALT springs—252–539g*; Linear STANDARD springs—325–730g*
*Varies by spring rate and stroke
