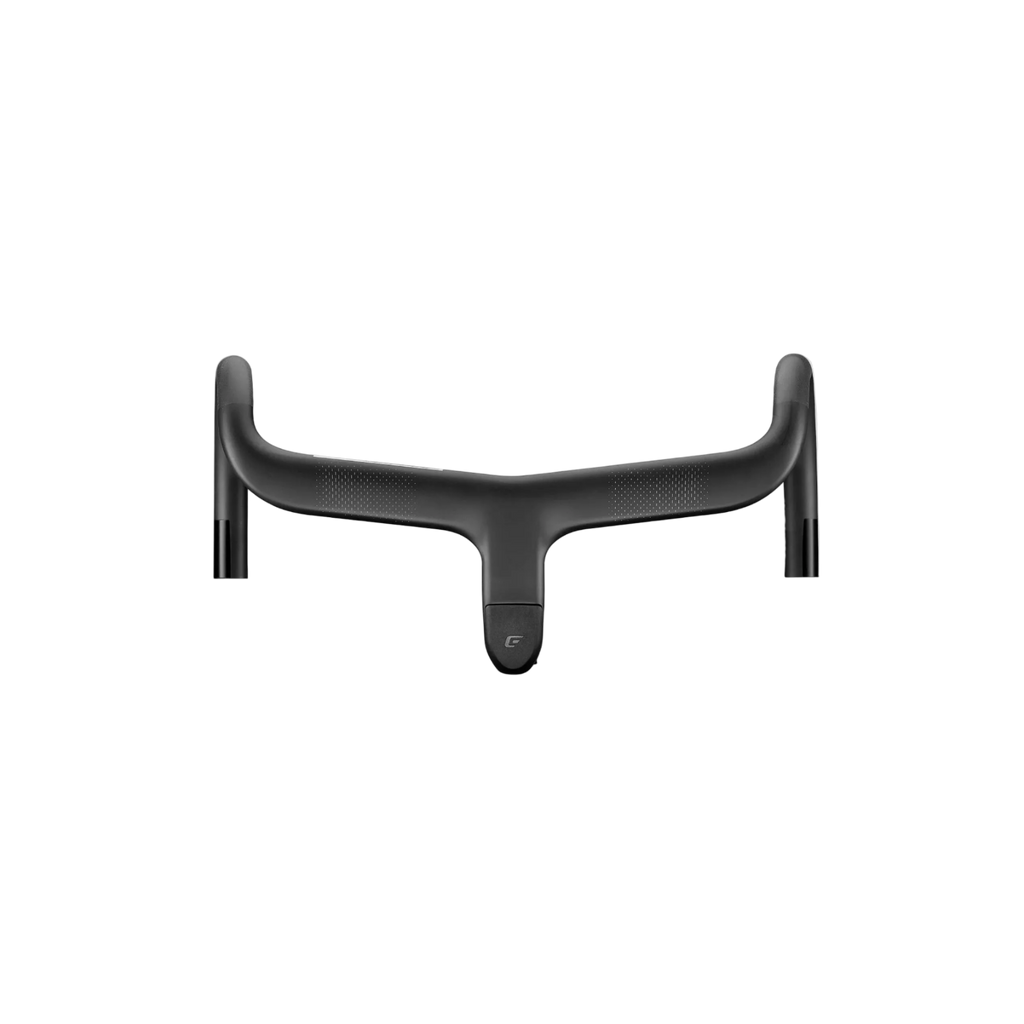

CADEX Aero Integrated Handlebars
36cm / 90mm
$1,149.99 AUD
Skip to product information
(We can only consider Australian retailers)
| Variant | SKU | Barcode |
|---|---|---|
| 36cm / 90mm | 180000591 | 4713250103952 |
| 36cm / 100mm | 180000590 | 4713250103945 |
| 36cm / 110mm | 180000589 | 4713250103938 |
| 36cm / 120mm | 180000588 | 4713250103921 |
| 36cm / 130mm | 180000587 | 4713250103914 |
| 36cm / 140mm | 180000586 | 4713250103907 |
| 37cm / 110mm | 180000583 | 4713250103877 |
| 37cm / 120mm | 180000582 | 4713250103860 |
| 37cm / 130mm | 180000581 | 4713250103853 |
| 37cm / 140mm | 180000580 | 4713250103846 |
| 39cm / 100mm | 180000579 | 4713250103839 |
| 39cm / 110mm | 180000578 | 4713250103822 |
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

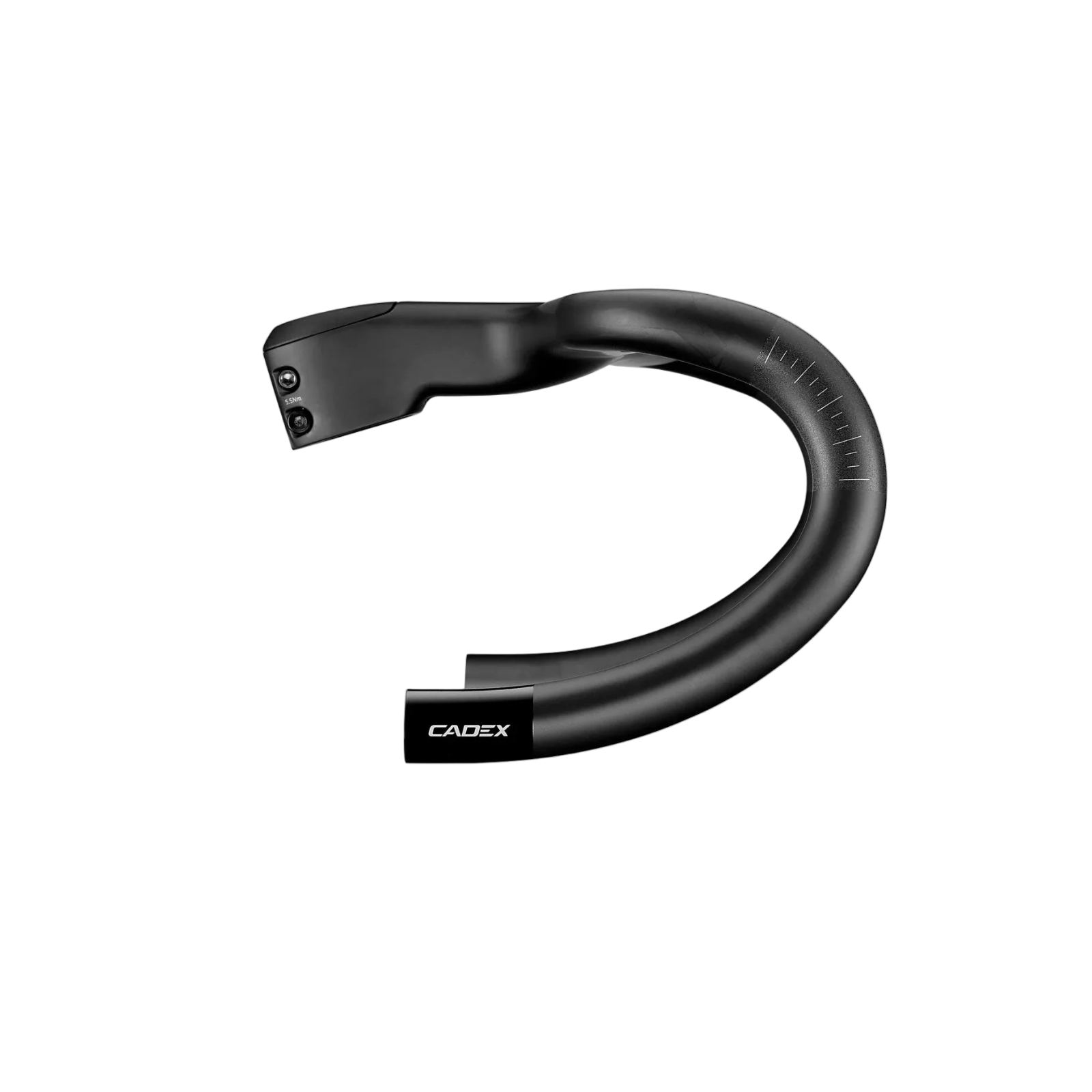

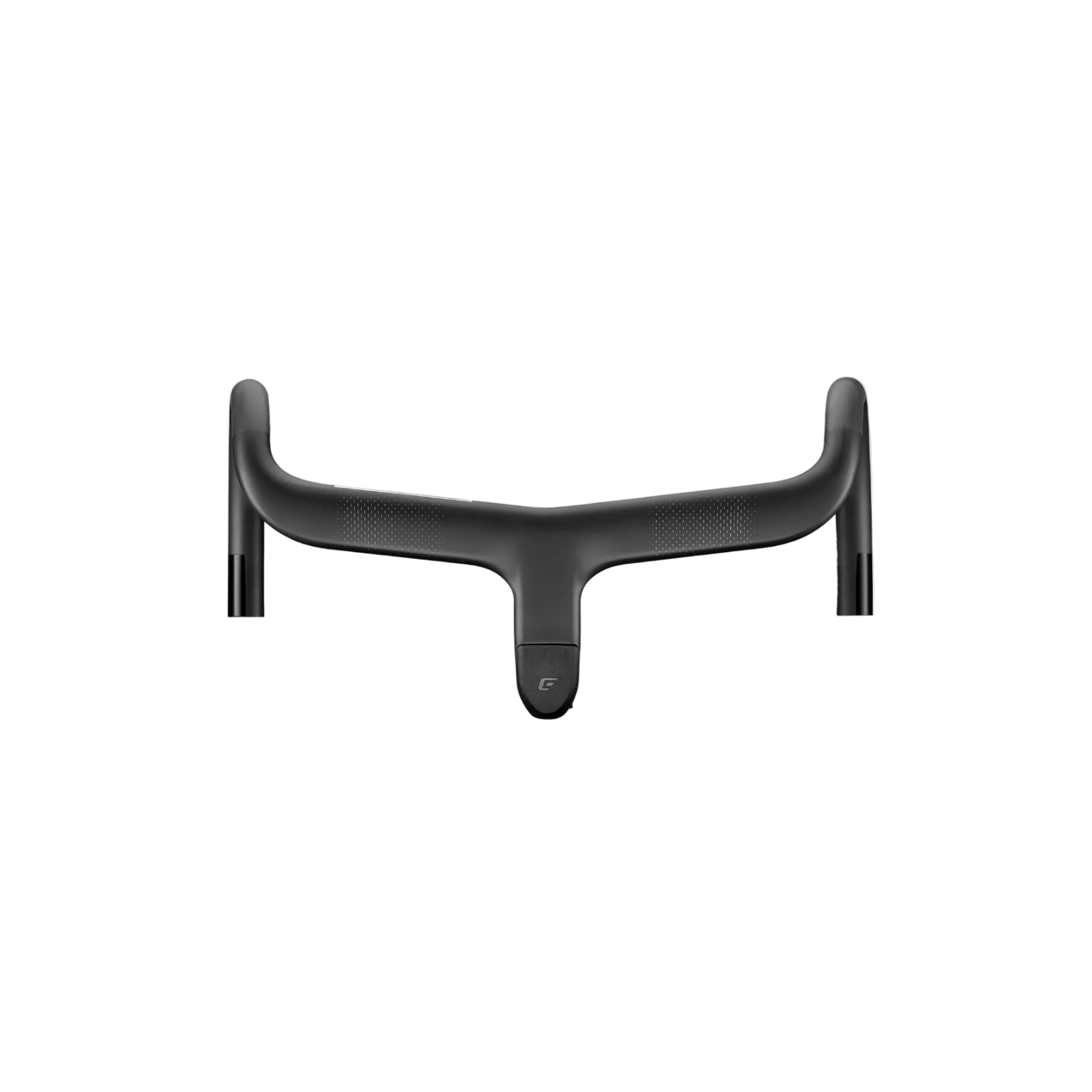

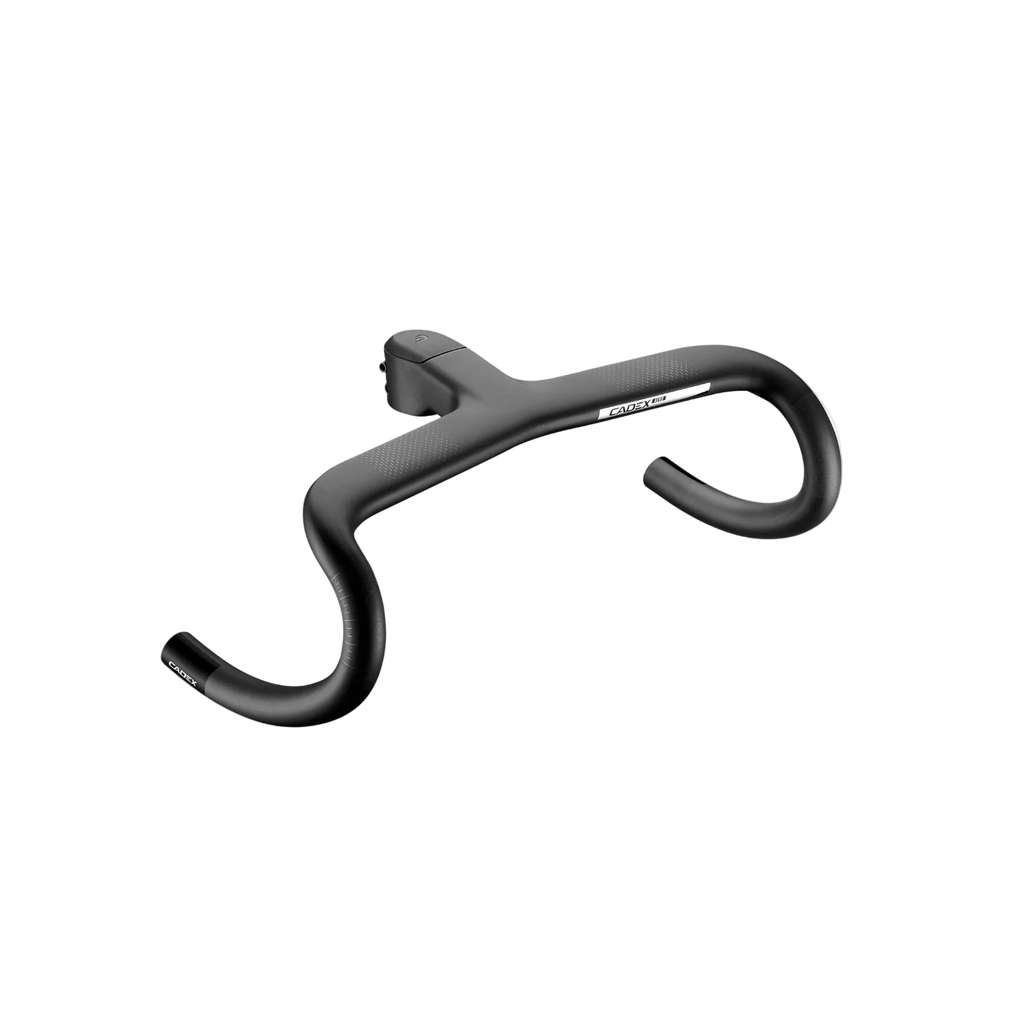

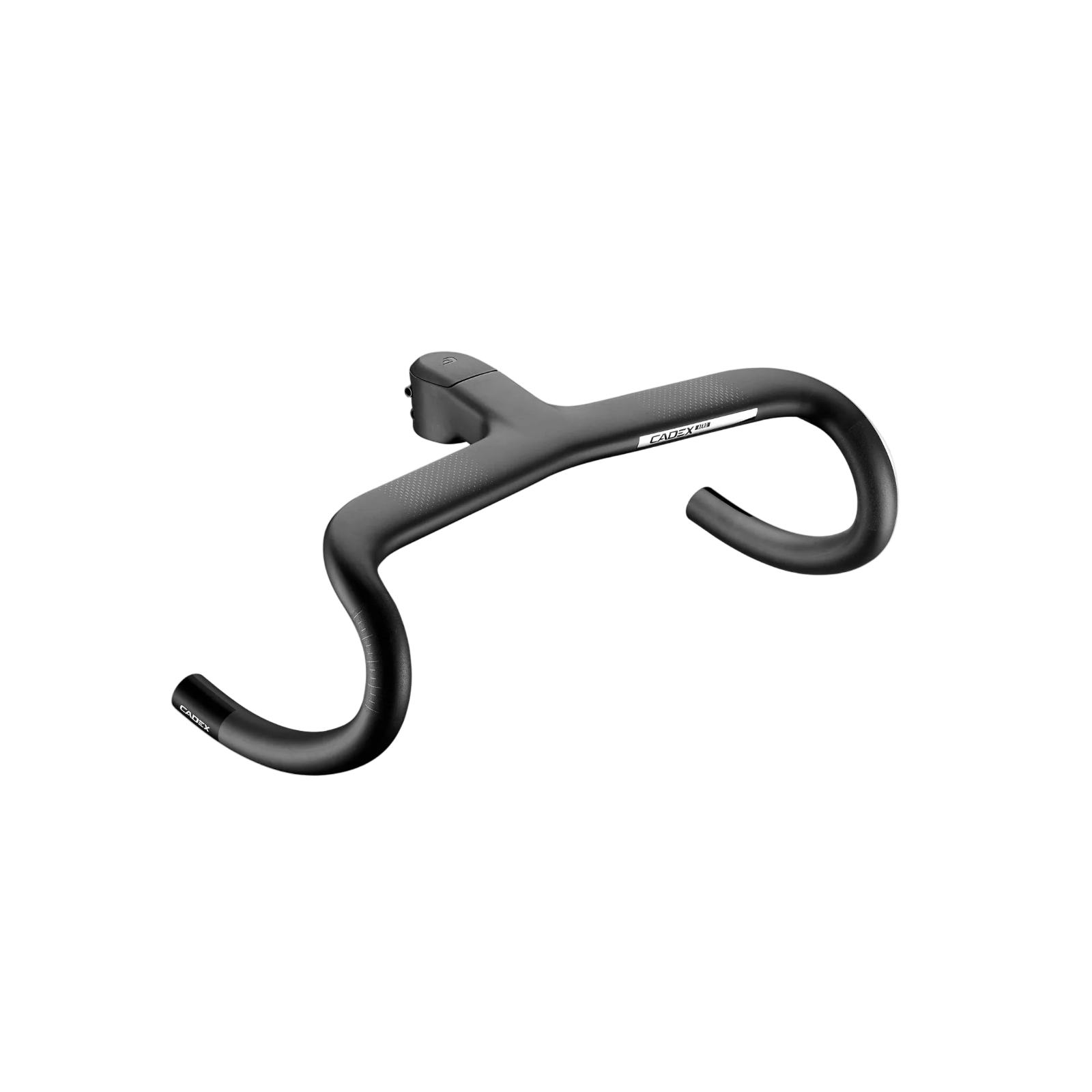

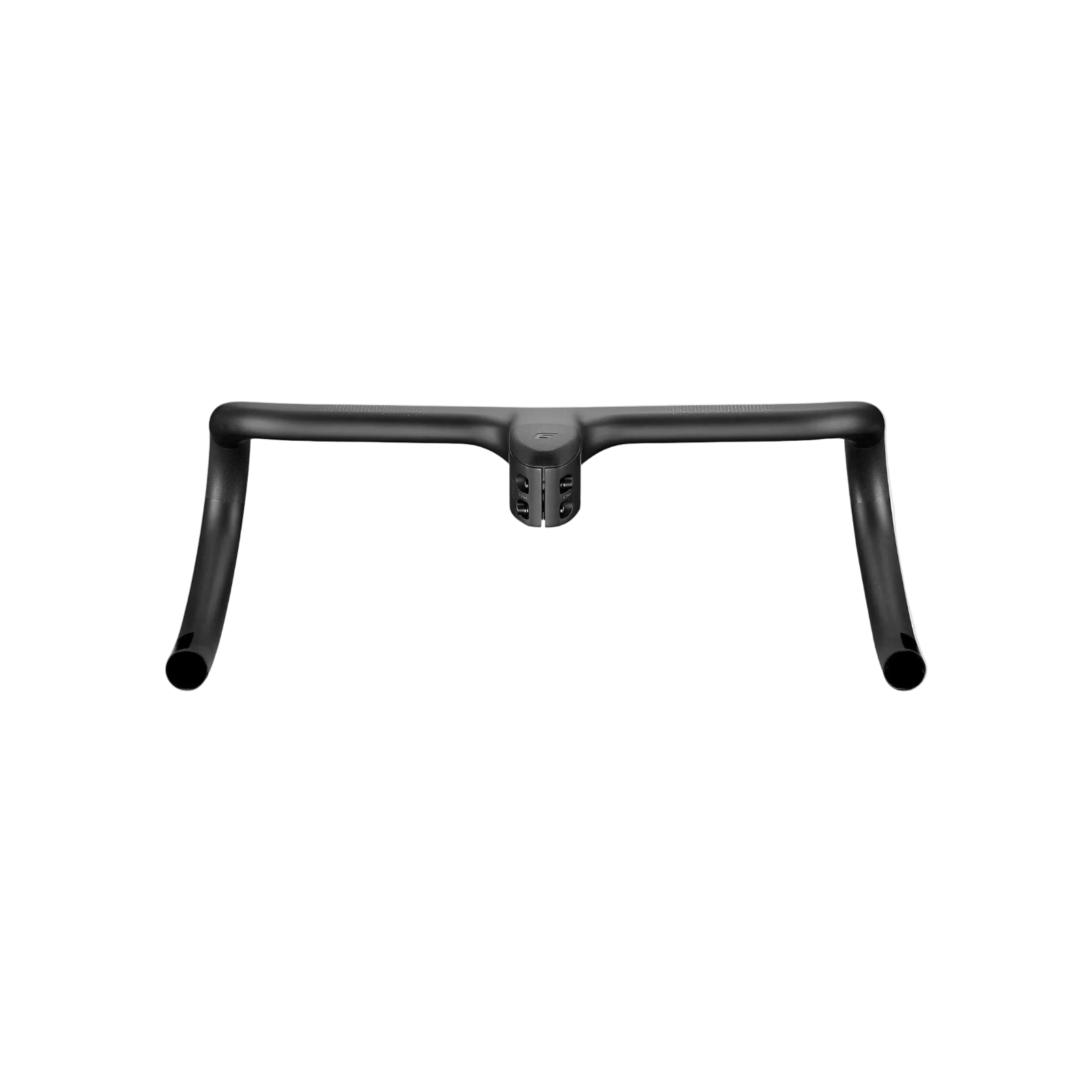

The CADEX Aero Integrated Handlebar has been completely redesigned to help you ride faster with greater efficiency and control. Featuring one-piece, no-bond carbon construction, a forward-sweeping profile and race-optimised geometry, it delivers exceptional stiffness at a significantly lower weight while placing you in a faster, more aerodynamic and comfortable riding position.
Built as a single, no-bond T800/T1100 carbon moulding, the redesigned bar strips out the added weight, excess material and flex of a traditional bonded setup — shaving 70g off the previous generation. A 6.5-degree forward sweep and refined, low-drag aero tops improve both comfort and aerodynamics, while a compact 125mm drop and race-tuned flare make for quick, confident transitions through sprints, descents and long efforts.
Key Features
- Forward-sweeping design — 6.5-degree front sweep improves comfort while promoting a narrower, more aerodynamic position
- Refined aero tops — low-drag top profile slices through the wind while giving your hands a comfortable, confident place to rest
- One-piece mould manufacturing — moulded as a single, no-bond T800/T1100 carbon piece, cutting weight, excess material and flex versus a traditional bonded bar
- Reduced material — shaves 70g off the previous generation
- Race-optimised geometry — 72mm reach and narrower hood spacing for a natural hand position without sacrificing speed
- Compact drop and race-tuned ergonomics — 125mm drop and race-tuned flare for quick transitions and stable handling

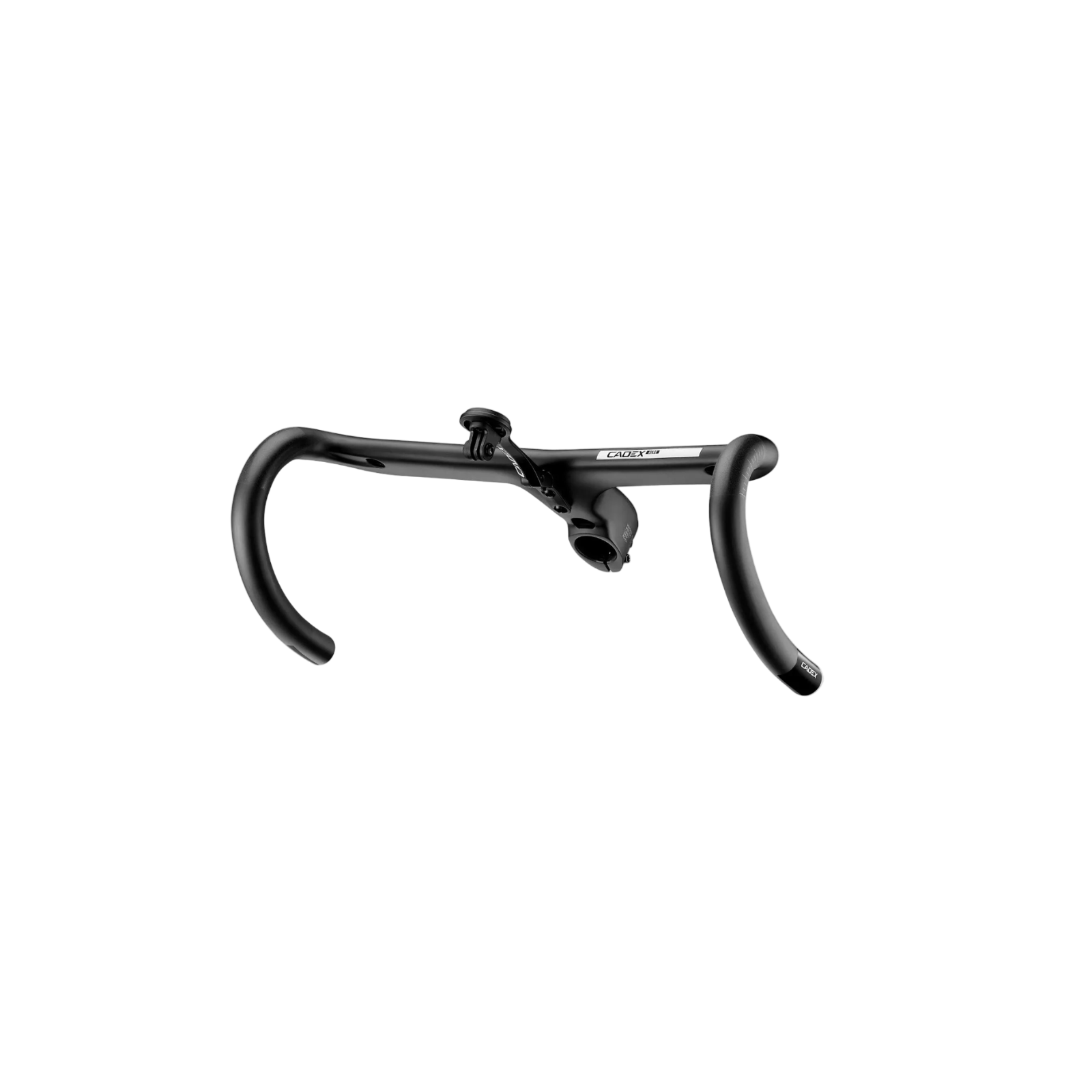

- Adjustable computer mount — included out-front mount adjusts from 2.5 to 17.5 degrees and integrates with the underside of the bar
- Weight: 255g (400mm x 110mm bar)
Specifications
| Spec | Detail |
|---|---|
| Material | Carbon |
| Stem Angle | -10 degrees |
| Stem Clamp | 1 1/4" / 1 1/8" / OverDrive Aero (with carbon shim) |
| Stem Length | 90 / 100 / 110 / 120 / 130 / 140mm |
| Width (Drop to Drop) | 380 / 400 / 420mm |
| Width (Hood to Hood) | 360 / 370 / 390mm |
| Drop | 125mm |
| Reach | 72mm |
| Flare | 4.8° (380mm) / 7.3° (400 / 420mm) |
| Frontsweep | 6.5 degrees |
| Weight | 255g (400mm x 110mm bar) |

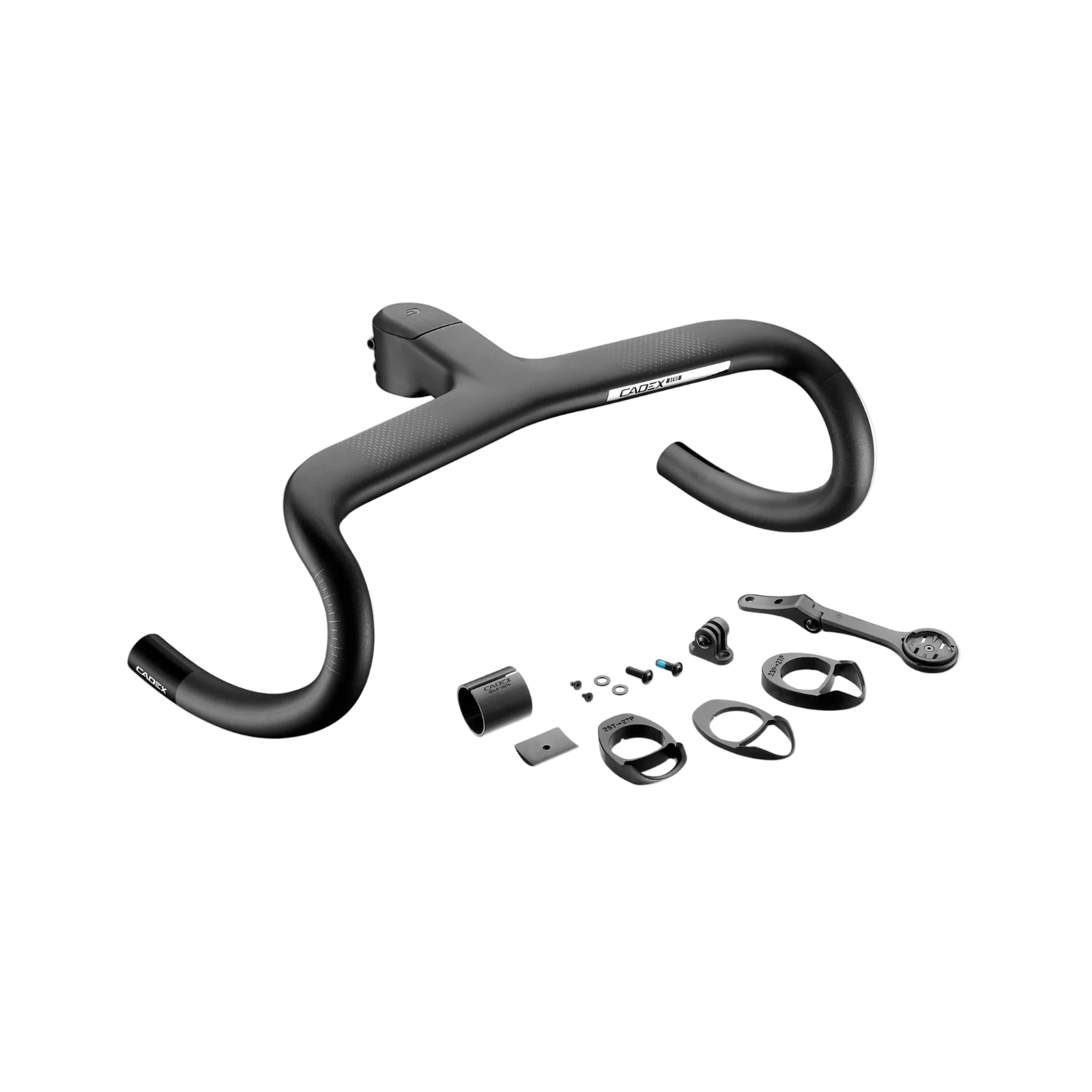

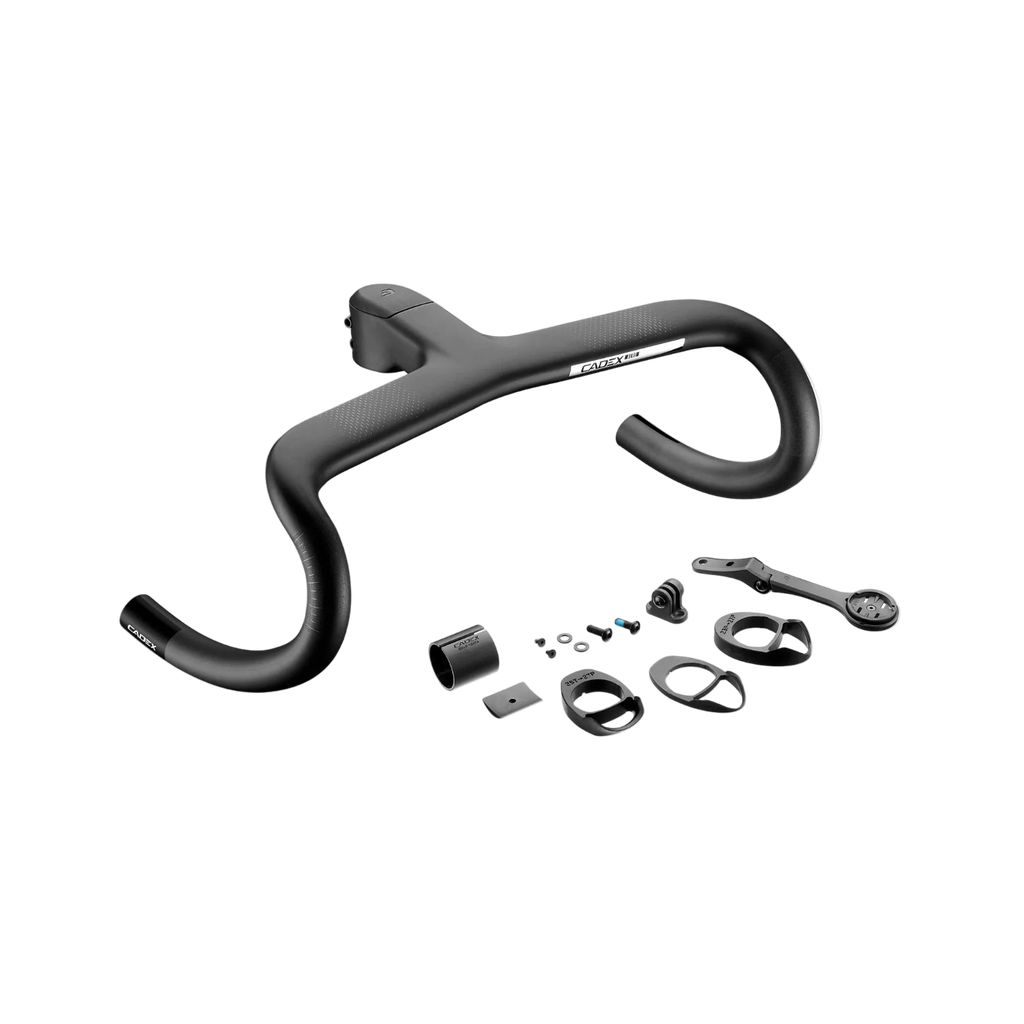

| Included Accessories | OverDrive Aero spacer, 2025+ TCR/Langma spacer, 2023-2026 Propel/EnviLiv spacer, 2026+ Propel/EnviLiv spacer, OverDrive Aero shim, 1 1/4" to 1/8" shim, adjustable out-front computer mount |
Why Choose the CADEX Aero Integrated Handlebar?
Redesigned from the ground up, the new CADEX Aero Integrated Handlebar combines a lighter one-piece carbon construction with race-optimised geometry to deliver a faster, more controlled and more comfortable cockpit. Whether you're chasing watts on race day or logging long training miles, this is a cockpit engineered for riders who want every aerodynamic and ergonomic advantage.
