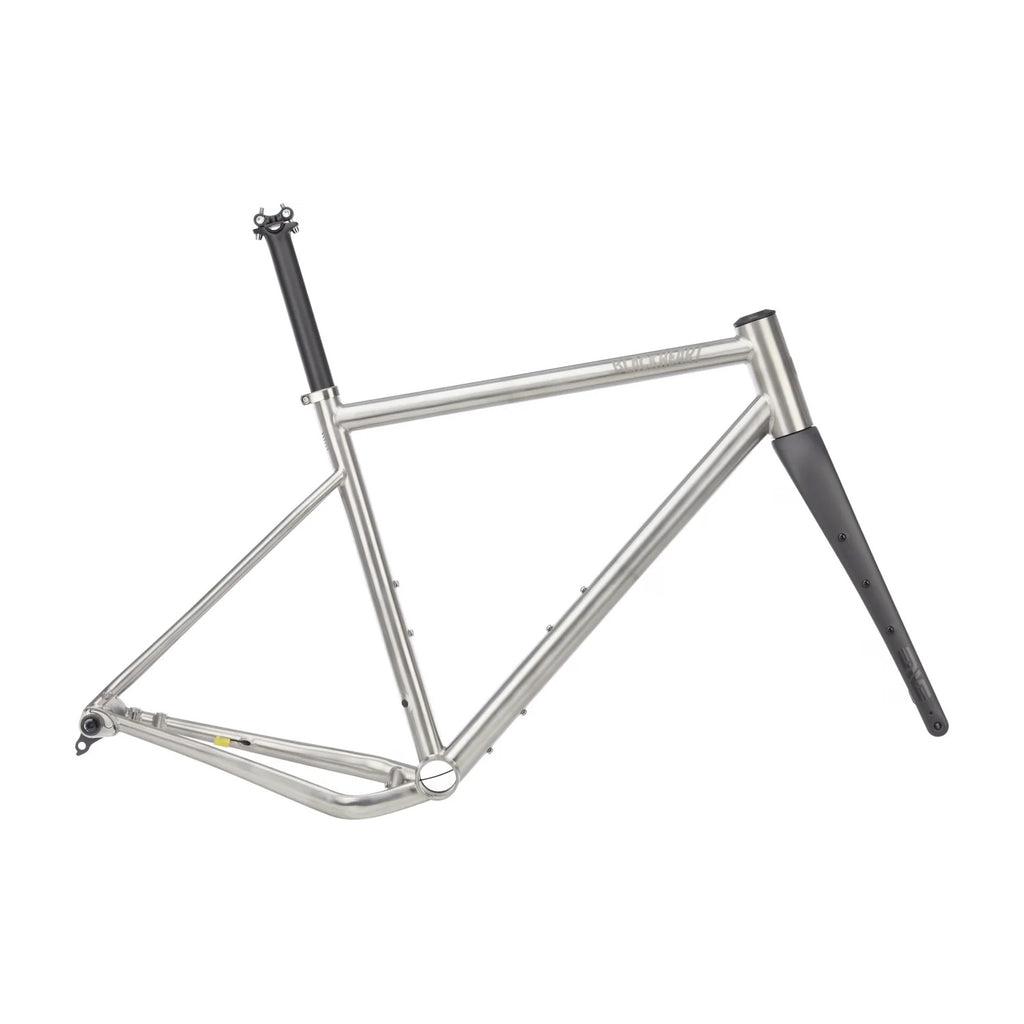

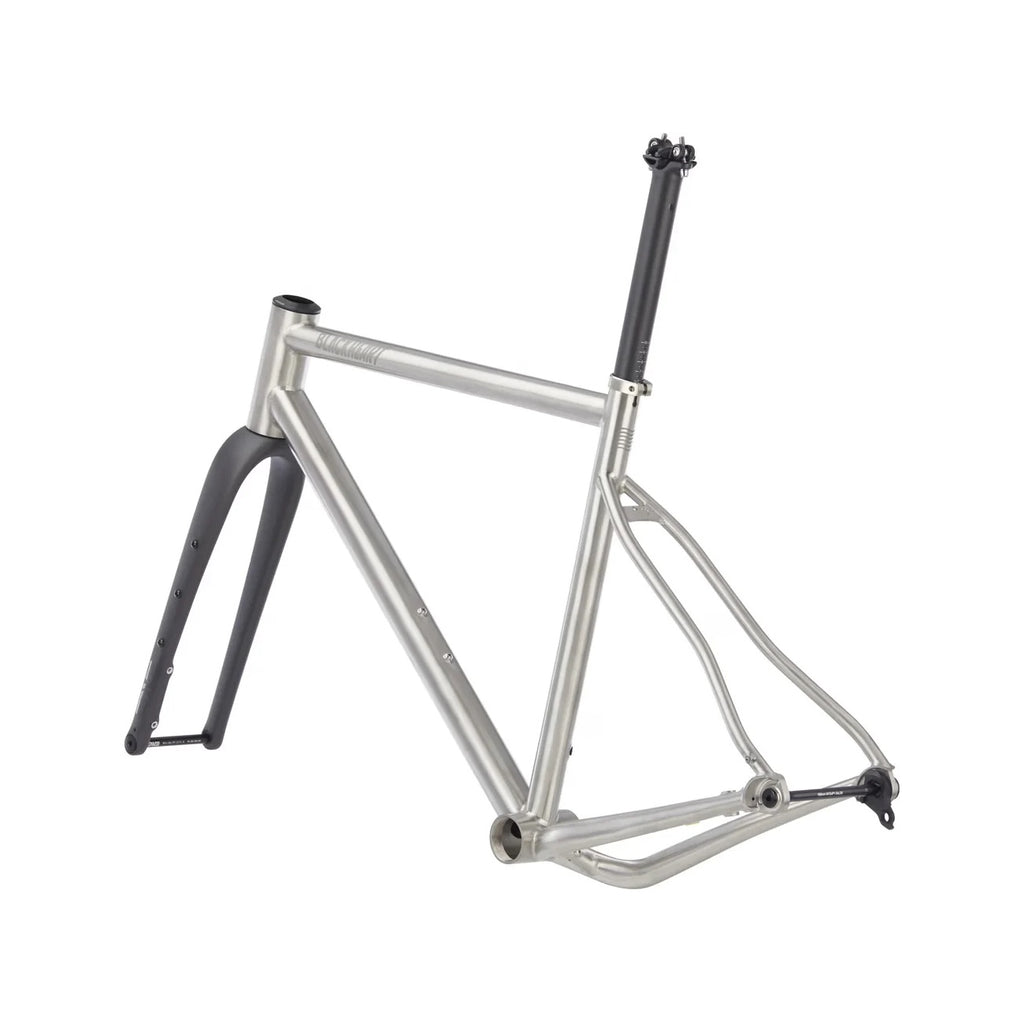

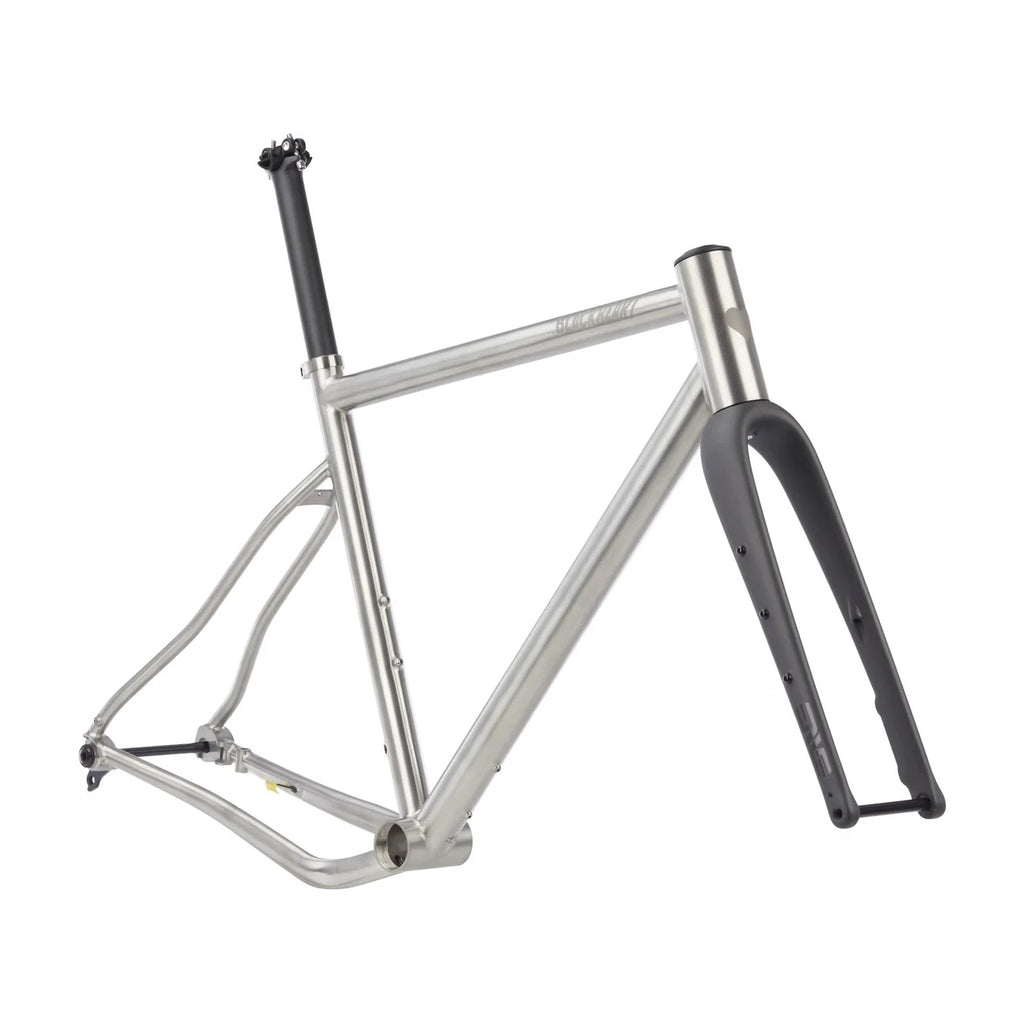

Blackheart Gravel Ti Frameset
49
$4,799.00 AUD
Skip to product information
(We can only consider Australian retailers)
49
SKU
—
Barcode
—
52
SKU
—
Barcode
—
54
SKU
—
Barcode
—
56
SKU
—
Barcode
—
58
SKU
—
Barcode
—
60
SKU
—
Barcode
—
The BlackHeart Gravel Ti is a reflection of modern carbon aesthetic in an industrial titanium form. It is the perfect balance between the aerodynamic gains from an integrated cockpit, kammtail down tube, and dropped seat stays and the smooth, snappy, magic ride titanium is known for. We maintain the intentionally keep the beautiful welds on display to create a frame that is as timeless as it is beautiful.
Modern aesthetic
A gently sloping top tube, dropped seat stays, a 3D-printed dropped drive side chain stay, and up to 50mm tire clearance bring titanium design into the 21st century.
Aero design
Our custom kammtail downtube, dropped seat stays, one-piece carbon cockpit, and fully integrated cables make it slippery where it matters.
Magic ride
Premium 3/2.5 double-butted titanium tubing and dropped, curved seatstays deliver a smooth yet snappy ride.
Future proof
Electronic 2X and Mechanical 1X compatible, threaded T47 bb, a round 31.6mm seatpost, and SRAM UDH means easy maintenance and no proprietary parts to limit your options.
Forever material
Titanium is more durable than carbon fiber, will never rust or corrode, and is highly recycleable if the time comes.
Frame Specifications
BlackHeart 3Al-2.5V double butted titanium frame
T47-68 bottom bracket
Electronic only
34.9mm front derailleur hanger size
Max chainring
- 54/40T Shimano
- 54/41T SRAM
- 50T single
Max 700c tire = up to 50mm
T47-68 bottom bracket
Electronic only
34.9mm front derailleur hanger size
Max chainring
- 54/40T Shimano
- 54/41T SRAM
- 50T single
Max 700c tire = up to 50mm
Fork Specifications
Enve Gravel In-Route Carbon
55/53 mm offset
395mm axle to crown
Enve thru axle
520 grams
Max 700c tires = 50mm
55/53 mm offset
395mm axle to crown
Enve thru axle
520 grams
Max 700c tires = 50mm
Seatpost Specifications
BlackHeart Carbon
Dual-bolt clamp design
Round and oval rail compatibility
31.6mm diameter
0 / 20mm offset
225 grams
BlackHeart Carbon
Dual-bolt clamp design
Round and oval rail compatibility
31.6mm diameter
0 / 20mm offset
225 grams
Mfr Claimed Weight
Frame = 1750 grams (Size 54)
Fork = 520 grams
Seatpost = 255 grams (300mm) / 275 grams (350mm)
Frame = 1750 grams (Size 54)
Fork = 520 grams
Seatpost = 255 grams (300mm) / 275 grams (350mm)
Rider weight limit 100 kg
NOTE: Sold as a frameset module only (frame + fork + seatpost + headset + thru-axles)
Not sure which is the correct size for you? Need help planning your build? Contact us at sales@ccache.cc for an obligation free consultation - we love talking bikes and are always happy to help.
