ETA :: 6 weeks eta if stock located in suppliers warehouse

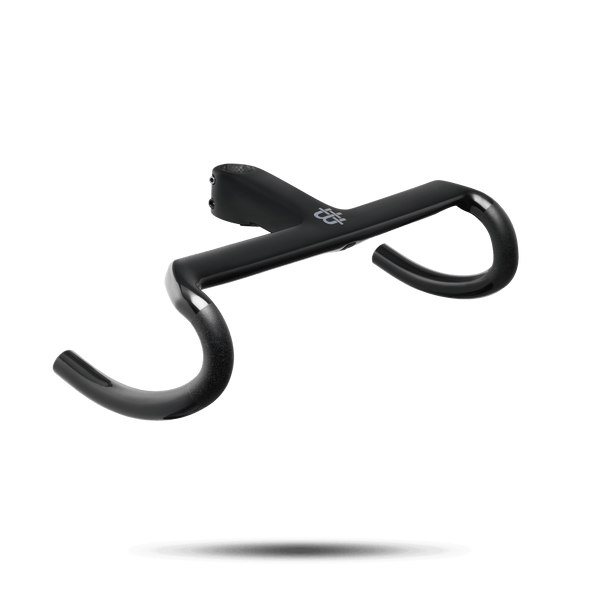

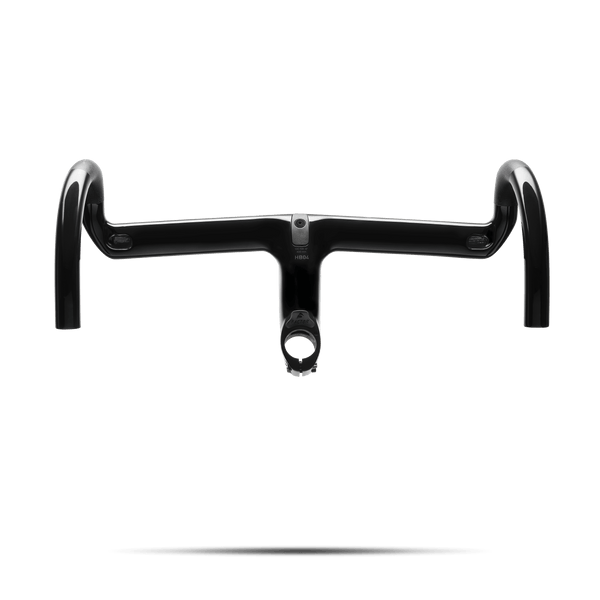

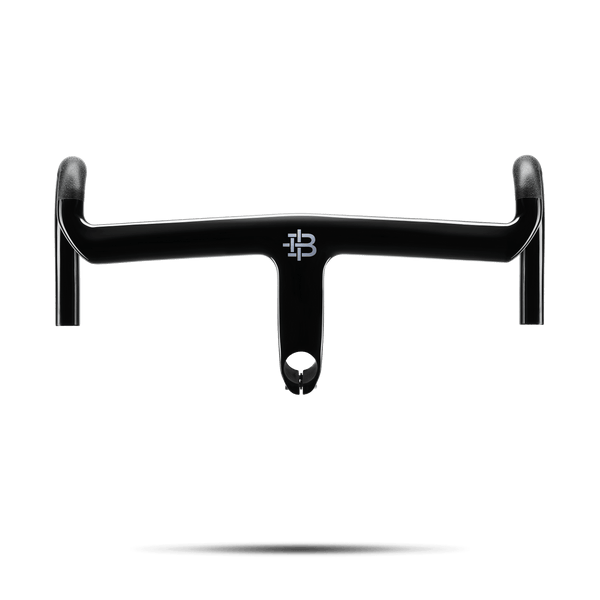

The Black Inc HB04 Integrated Barstem introduces all the advantages of one-piece integrated cockpits with none of the hassle. It combines a high modulus carbon fibre with a shorter reach and shorter drop to ensure high-performance comfort.

Introduced in conjunction with the Factor MONZA, the Black Inc Integrated Barstem HB04 complements the MONZA’s sizing philosophy which emphasises a more democratic fit, including reducing the required reach. This design marries well with modern Shimano and SRAM hood shapes, by offsetting their inherently longer reach.

The integrated design enhances a bike’s aerodynamics and clean lines by tucking the cables neatly away, while moulded cable entry ports facilitate easy routing through the semi-aero profile of the bars. Slightly narrower on the tops than the Aero Integrate Barstem, the HB04 Barstem has been specifically formed to optimise hand positions while offering an enhanced aero shape compared to round bars.

Expertly crafted to balance its strength-to-weight ratio, the HB04 Barstem uses a standard round cap to ensure a wide selection of compatible bikes.

Specifications
Material    Carbon Fiber
Weight    440g (40cm x 110mm)
Angle    -6°
Drop    116mm
Reach    75mm
Stack    44mm
Flare (drop section)    7°
Backsweep (top section)    3°
Steerer diameter    1-1/8″
Finish    Glossy
Internal Cable Routing    Electronic and Disc Brake systems only
External Cable Routing    n/a

Included Accessories
Black Inc Computer Mount - V10
(Compatible with both Wahoo and Garmin computers)
