Description

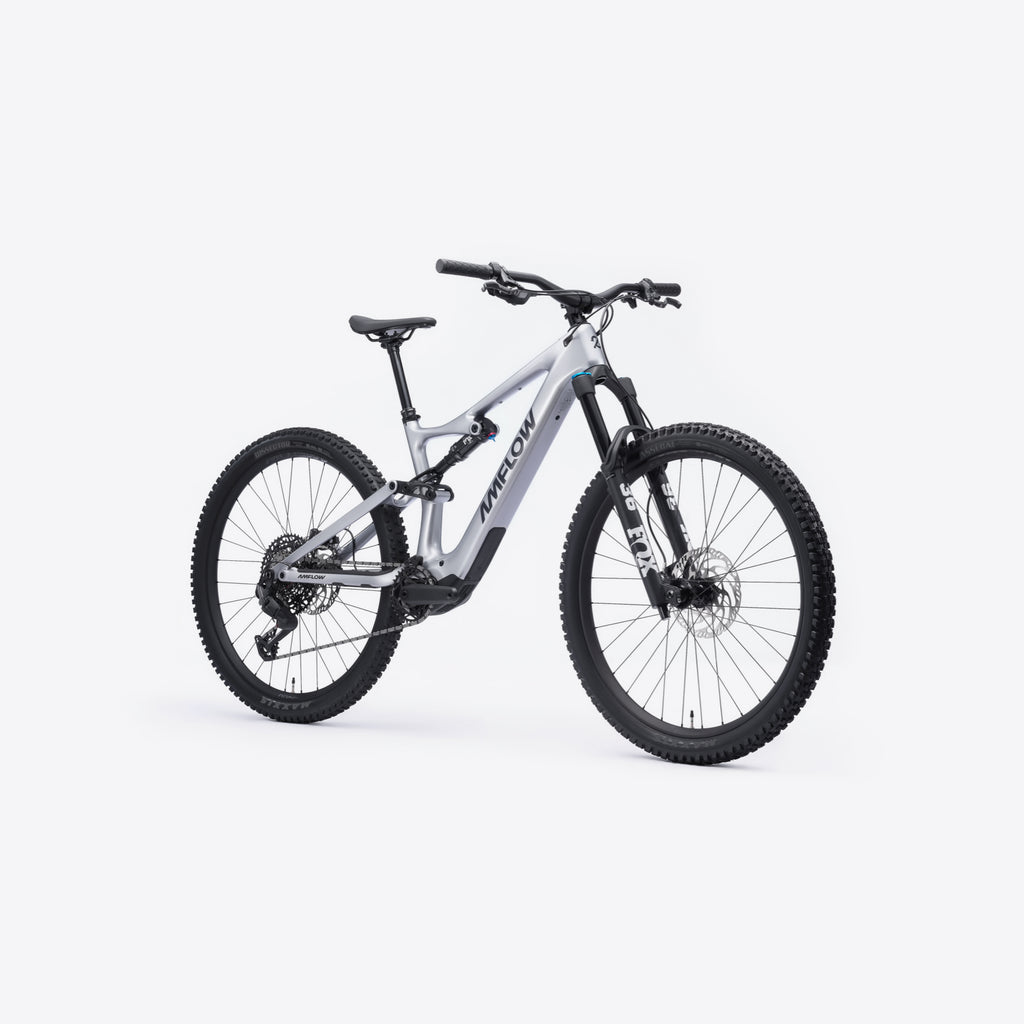

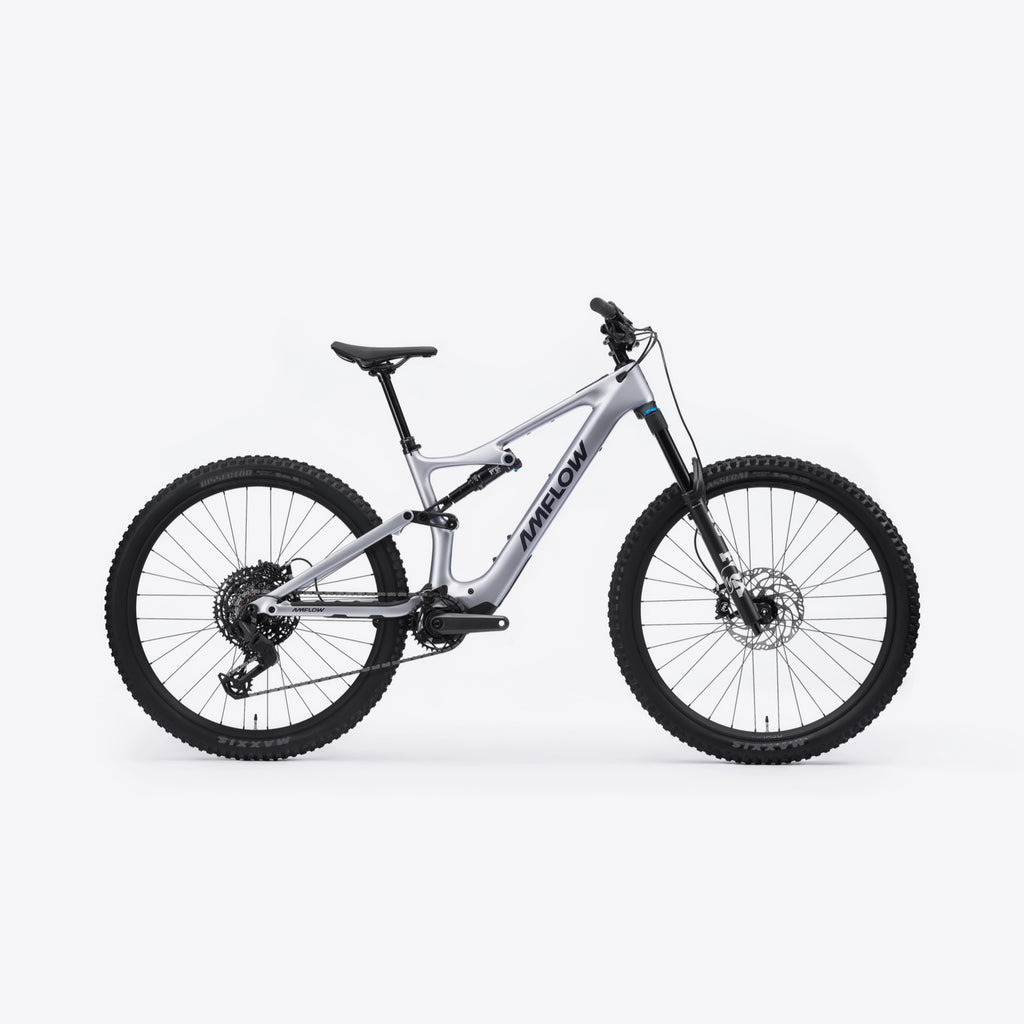

The Amflow PL Carbon delivers the same advanced foundation as its Pro sibling, packaged in a clean, purpose-built build for riders who prioritise performance and ride feel over excess. At its core is the DJI Avinox M1 drive system, offering smooth, responsive assistance with ample torque for sustained climbs and technical terrain.
A full-carbon frame with 150 mm rear travel and a 160 mm front end provides a balanced, confidence-inspiring platform on trail, while the integrated 800 Wh battery ensures long-range capability for full days in the saddle. Intelligent assistance modes and a streamlined control interface keep the ride experience intuitive and distraction-free.
Finished in Satin Silver, the PL Carbon leans into a subtle, modern aesthetic. Carefully selected components deliver reliability and performance where it matters most, making this a highly capable, full-power e-MTB that stays focused on the ride rather than the spec sheet.
A refined entry into the Amflow platform — efficient, composed, and built to be ridden hard.
5 Modes, Effortless Assistance : Auto mode adapts assistance in real-time. Activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.
Light Motor, Powerful Drive : The 2.52kg motor delivers 105N·m continuous torque and 1000W peak power. Strong and durable polymer material effectively suppresses noise.
Ultra-Light Streamlined Frame : The 19.2kg build uses an ultra-light carbon fiber frame that weighs just 2.27 kg, for breathtaking speed and agility.
800Wh Batt., 3x Fast Charging : Using the Avinox Drive System that provides battery with a maximum capacity of 800 Wh, the bike can reach a range of 157 km.
Versatile Geometry : Amflow PL's frame design features a 64.5° head tube angle, a 445mm chainstay length, and a 77° seat tube angle, offering balanced performance.
Built-in Touchscreen Display : The 2-inch full-color OLED touchscreen offers real-time ride data and range. Paired with the Avinox app, it offers remote locating features.
Intelligent Walk Assist : Walk Mode features Auto Hold to prevent rollback on slopes as well as Hill Start Assist and stationary gear shifting for a smooth experience.
Size Guide
| Size | Height (cm) | Height (inch) |
|---|---|---|
| M | 162 - 178 | 5'4 - 5'10'' |
| L | 170 - 185 | 5'7 - 6'1'' |
| XL | 175 - 191 | 5'9 - 6'3'' |
| XXL | 185 - 201 | 6'1 - 6'7'' |
Geometry Chart
| M | L | XL | XXL | ||
|---|---|---|---|---|---|
| A | Reach | 452mm | 475mm | 500mm | 525mm |
| B | Stack Height | 618mm | 628mm | 641mm | 655mm |
| C | Standover Height | 780mm | 785mm | 790mm | 795mm |
| D | Front Center | 782mm | 810mm | 844mm | 873mm |
| E | Fork Length | 570mm | 570mm | 570mm | 570mm |
| F | Wheelbase | 1227mm | 1255mm | 1289mm | 1318mm |
| G | Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| H | Bottom Bracket Drop | 29mm | 29mm | 29mm | 29mm |
| I | Bottom Bracket Height | 345.5mm | 345.5mm | 345.5mm | 345.5mm |
| J | Effective Top Tube Length | 595mm | 620mm | 648mm | 676mm |
| K | Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| L | Head Tube Length | 105mm | 115mm | 130mm | 145mm |
| M | Actual Seat Tube Angle | 70° | 70° | 70° | 70° |
| N | Effective Seat Tube Angle | 77° | 77° | 77° | 77° |
| O | Seat Tube Height | 430mm | 450mm | 470mm | 500mm |
Note: Before using this vehicle check the applicable local laws relating to the intended use of the vehicle on roads and road related areas.
Specifications
| Frame | Amflow PL Carbon, Satin Silver, 150mm rear travel, 27.5"/29" compatible |
| E-Bike System | Avinox M1 Drive Unit 105 N·m, 2" OLED display, 800Wh battery, wireless controllers, 12A fast charger |
| Fork | FOX 36 Performance, 160mm travel, GRIP damper, 15×110mm, 44mm rake |
| Rear Shock | FOX Float Performance, Trunnion 185×55mm, custom tune, EVOL Air, 2-position lever |
| Transmission | SRAM GX Eagle 12-speed, 34T chainring, PG-1230 11–50T cassette, NX Eagle chain, Avinox SL crank (155–160mm) |
| Brakes | Magura MT5 hydraulic, 4-piston, 203mm rotors, Shiftmix 3 lever |
| Wheels & Tyres | Amflow HMA-30, Alloy 29" rims, tubeless, SAPIM E-Light spokes, Maxxis Assegai 29×2.5 (front), Dissector 29×2.4 (rear) |
| Cockpit | Amflow Enduro Alloy bar 800mm, 35mm rise, 5°/9° sweep, Enduro stem & grips, Selle Royal SRX Plus saddle |
| Dropper Post | KS Rage-i: M 150mm, L 170mm, XL/XXL 190mm |
| Accessories | Quick Start Guide, Torque Wrench, Shock Pump, Front & Rear Lights |
