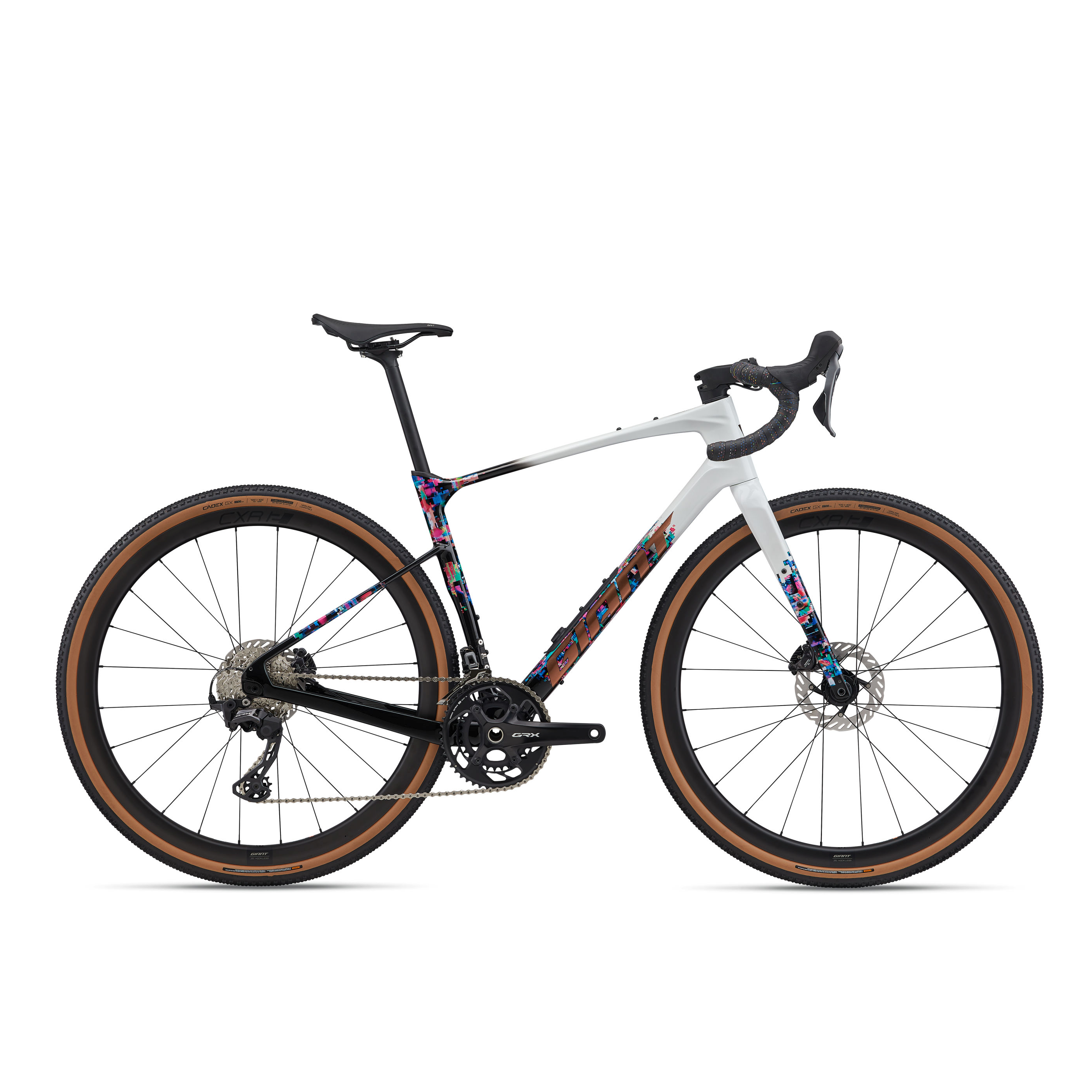

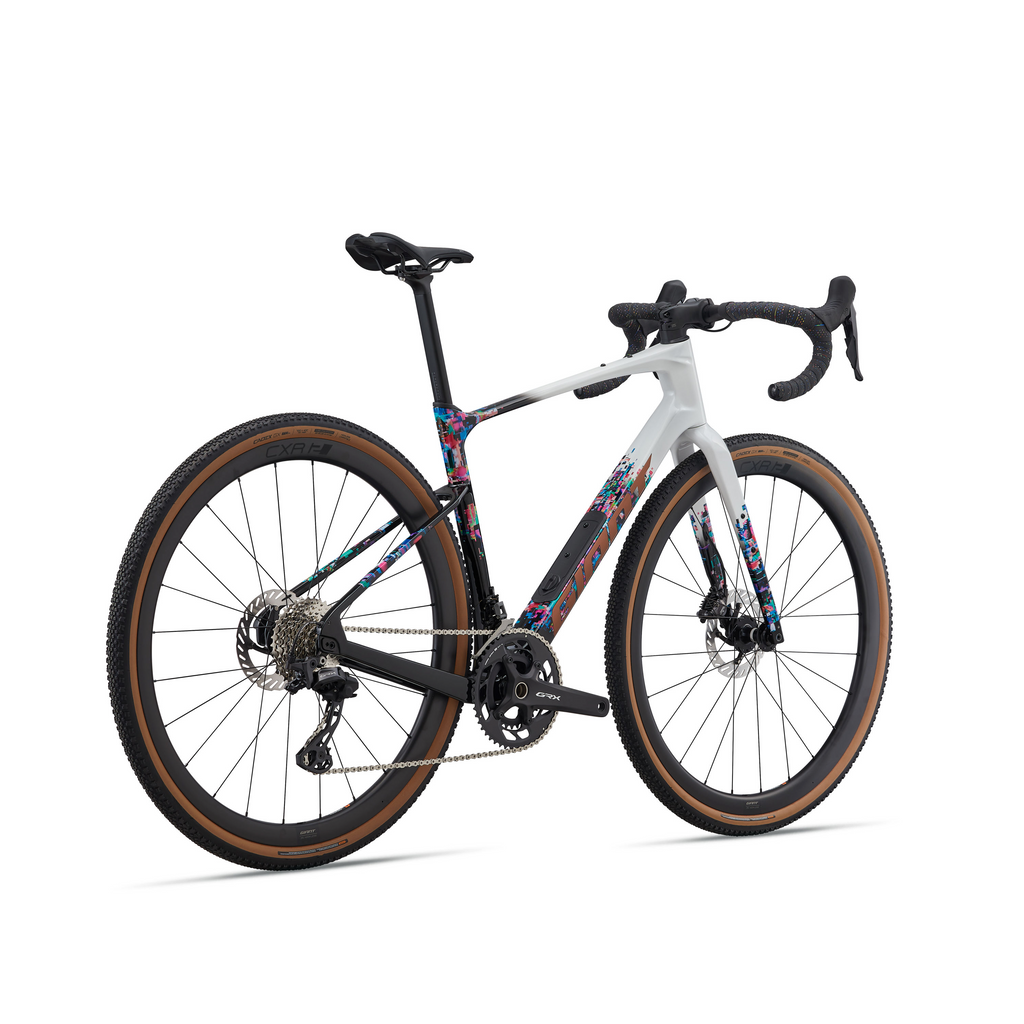

A light, smooth and adaptable to variable conditions and terrain, the special edition Revolt Advanced SE combines ultra-efficient performance, next-level control, and striking colours and graphics that make it stand out in the pack.
Key Performance Factors
FAST AND VERSATILE
An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL D-Fuse carbon handlebar and D-Fuse seatpost help smooth out rough tracks, improving control and minimising fatigue over long distances.

SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders.

COLOURS Radio Spectrum
FRAME Advanced-grade composite, 12x142mm thru-axle, disc, flip chip
dropout, down tube storage
FORK Advanced-grade composite, full-composite OverDrive steerer, 12mm
thru-axle, disc
COMPONENTS
HANDLEBAR Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm,
L:46cm, XL:46cm
GRIPS Stratus Lite 3.0
STEM Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm,
M/L:80mm, L:80mm, XL:90mm
SEATPOST Giant D-Fuse, composite, -5mm/+15mm
SADDLE Giant Grit
PEDALS N/A
DRIVETRAIN
SHIFTERS Shimano GRX RX-820, 2x12
FRONT DERAILLEUR Shimano GRX RX-820
REAR DERAILLEUR Shimano GRX RX-820
BRAKES Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm,
[R]160mm
BRAKE LEVERS Shimano GRX RX-820 hydraulic
CASSETTE Shimano CS-HG710, 12-speed, 11x36
CHAIN KMC X12L-1
CRANKSET Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm,
M/L:172.5mm, L:175mm, XL:175mm
BOTTOM BRACKET Shimano, press fit
WHEELS
RIMS Giant CXR 2 WheelSystem, [F] 35mm, [R] 35mm
HUBS [F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl 36t
driver, CenterLock, 12mm thru-axle
SPOKES Sapim Sprint
TYRES CADEX GX, 700x40c, tubeless
EXTRAS Tubeless prepared, 53mm max tyre size in "long" flip chip position,
45mm max tyre size in "short" flip chip position, In frame storage bag
LIMITS
MAX TYRE CLEARANCE 53mm

	XS	S	M	ML	L	XL
	SHORT | LONG	SHORT | LONG	SHORT | LONG	SHORT | LONG	SHORT | LONG	SHORT | LONG
A Seat Tube Length (mm)	430	450	470	490	510	530
B Seat Tube Angle	74.0°	73.5°	73.5°	73.0°	73.0°	73.0°
C Top Tube Length (mm)	540	550	560	575	585	600
D Head Tube Length (mm)	125	135	150	165	180	195
E Head Tube Angle	70.0°	71.0°	71.5°	72.0°	72.0°	72.0°
F Fork Rake (mm)	50	50	50	50	50	50
G Trail (mm)	78 | 82	72 | 75	68 | 72	65 | 68	65 | 68	65 | 68
H Wheelbase (mm)	1024 | 1034	1020 | 1030	1026 | 1036	1031 | 1041	1041 | 1051	1056 | 1066
I Chain Stay Length (mm)	425 | 435	425 | 435	425 | 435	425 | 435	425 | 435	425 | 435
J Bottom Bracket Drop (mm)	80 | 81	80 | 81	80 | 81	80 | 81	80 | 81	80 | 81
K Stack (mm)	556	570	586	602	616	630
L Reach (mm)	381	381	387	391	397	407
M Stand Over Height (mm)	724 | 731	740 | 747	757 | 764	774 | 780	791 | 797	807 | 814
O Stem Length (mm)	50	60	70	80	80	90
P Crank Length (mm)	170	170	172.5	172.5	175	175
