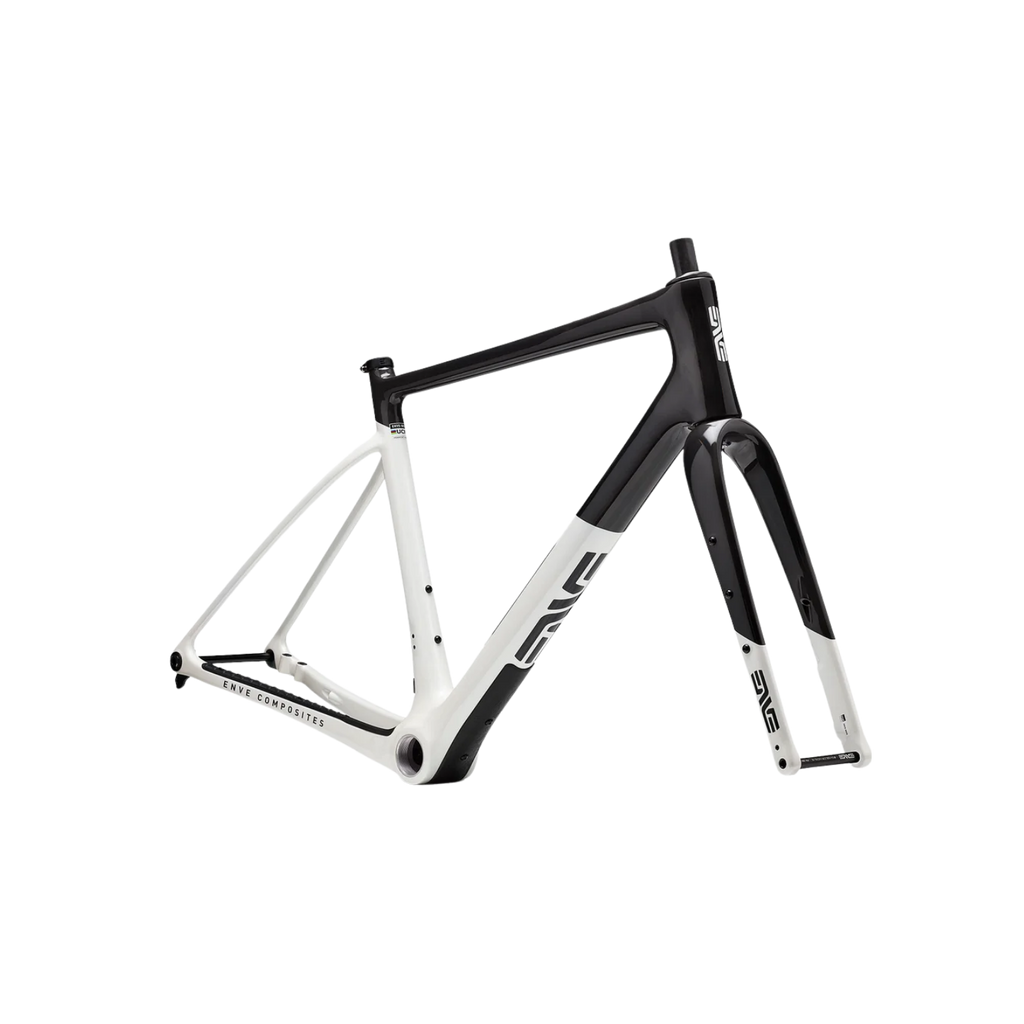

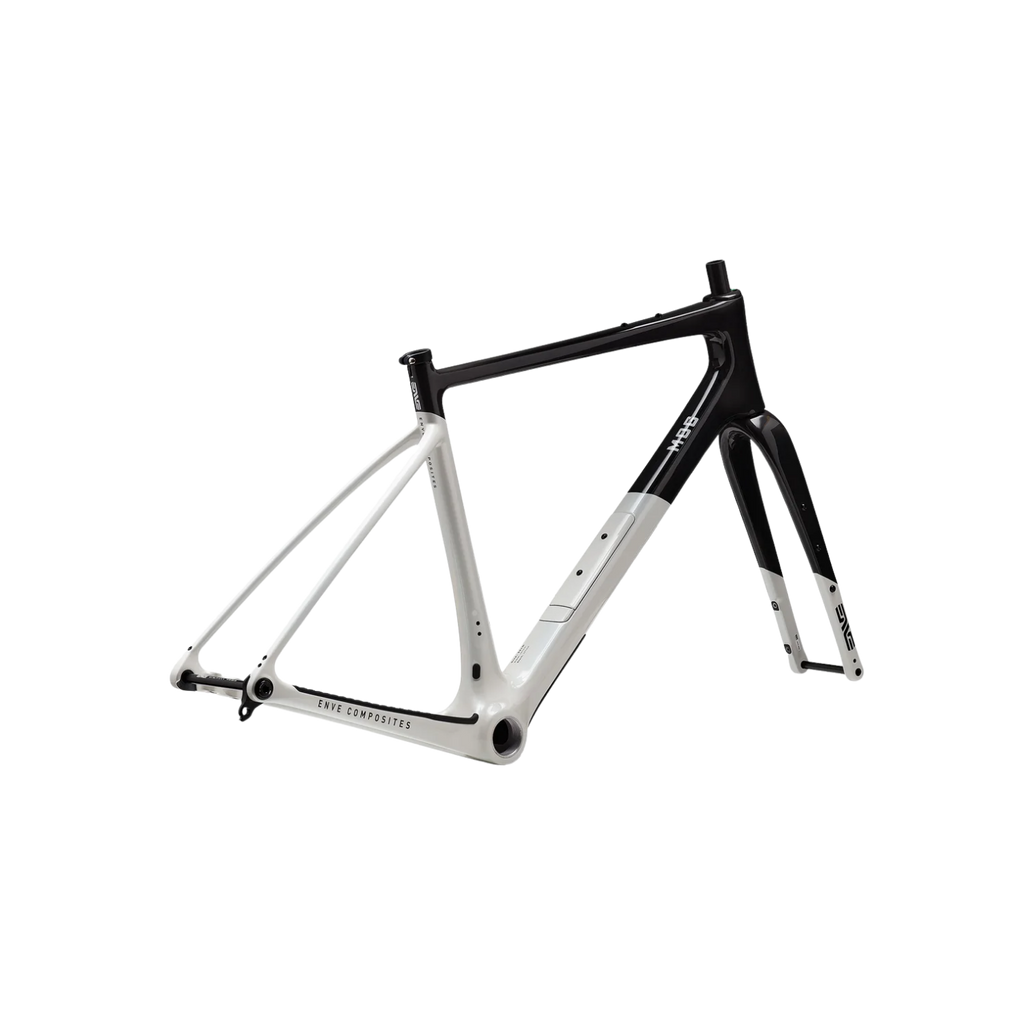

ENVE MOG Gravel Frameset - Aspen White
54
$6,999.00 AUD
Skip to product information
(We can only consider Australian retailers)
47
SKU
NV/FR/MOG/WHITE/47
Barcode
—
50
SKU
NV/FR/MOG/WHITE/50
Barcode
—
52
SKU
NV/FR/MOG/WHITE/52
Barcode
—
54
SKU
NV/FR/MOG/WHITE/54
Barcode
00810165979659
56
SKU
NV/FR/MOG/WHITE/56
Barcode
00810165979666
58
SKU
NV/FR/MOG/WHITE/58
Barcode
00810165979499
60
SKU
NV/FR/MOG/WHITE/60
Barcode
—
The ENVE MOG is sold as a chassis with frame, fork and headset.
The MOG embodies everything a modern gravel bike should be—purpose‑built, wildly capable, and ready for whatever terrain you point it toward. Its versatility starts with massive tire clearance, accommodating a 700c x 50 mm tire with room to spare for confident handling on everything from fast hardpack to rugged backcountry routes. Add in ENVE’s integrated Cargo Bay, which transforms the downtube’s open space into practical in‑frame storage, and you get a bike that carries your essentials without compromising ride quality or aesthetics.
Every detail reflects ENVE’s commitment to engineering a gravel platform that’s as efficient on race day as it is adaptable for long‑haul exploration. Whether you’re chasing podiums, chasing horizons, or simply chasing the perfect ride, the MOG delivers a blend of speed, stability, and smart design that sets the benchmark for gravel capability.
Specifications
Frame Material: ENVE M.O.D Carbon, 12x142 thru-axle, flat-mount disc, threaded T47 BB, internal routing, fender compatible.
Fork Material: ENVE M.O.D Carbon, 12x100 thru-axle, flat-mount disc, internal routing, fender compatible.
Target Application: Gravel Racing / Riding / Exploration / Adventure.
Sizes (cm): 49, 52, 54, 56, 58, 60.
Fork Rake: 57, 55, 53.
Fork Axle to Crown: 395mm.
Frame Size / Fork Rake: 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53.
Frame Weight: 950g ±2% (Size 56, painted, no hardware).
Headset: ENVE Integrated IS52/IS52 internal drop-in.
Headset Bearing: 1.5" IS52 upper and lower.
Seat Post Diameter: 27.2.
BB Type: T47 inboard bearing.
Brake Mount: Flat mount.
Brake Rotor Compatibility: F: 160/180, R: 140/160 (adapters required).
Front Axle: 12x100 (Total Length: 122, TP: 1.5, TL: 15).
Rear Axle: 12x142 (Total Length: 168, TP: 1.0, TL: 14).
Minimum Tire Size: 700 x 36c.
Optimal Tire Size: 700 x 40c–44c.
Maximum Listed Tire Clearance: 700 x 50c.
Frame Routing: ENVE IN-Route internal.
Water Bottle Capacity: 3.
Top Tube Mounts: Yes.
Fender Mount Compatible: Yes.
Wheel Size: 700C (650b not recommended).
Color: Pantone 7528C (equivalent to Sand).
Mfr Claimed Weight
TBC
