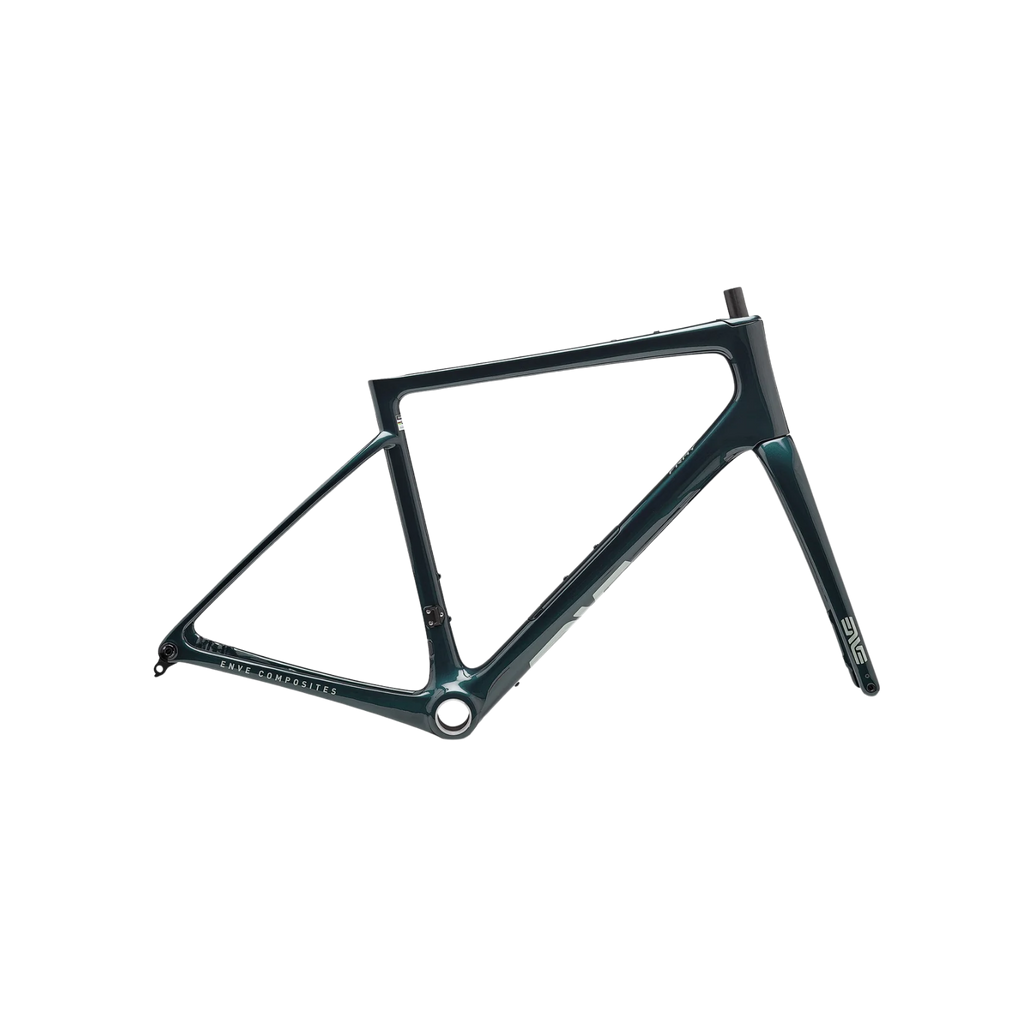

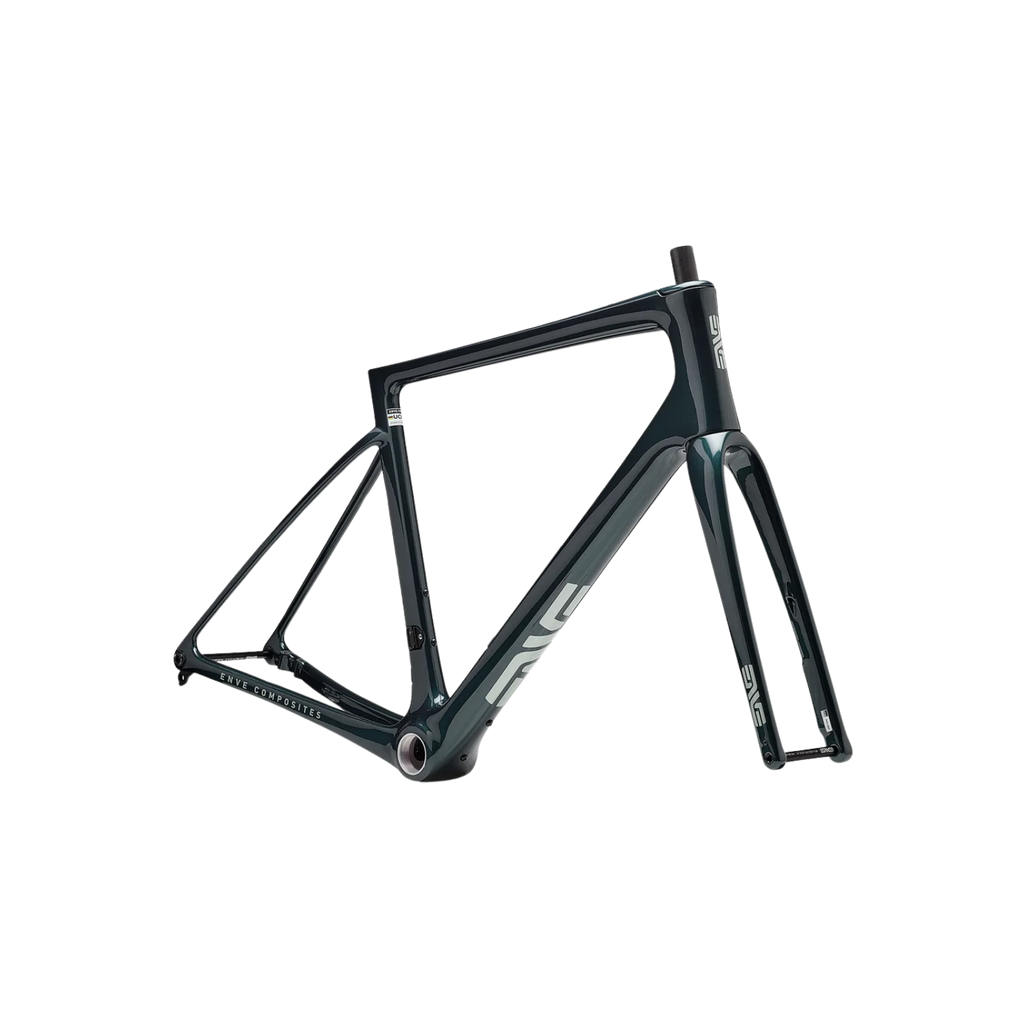

ENVE Fray Road Frameset - British Racing Green
54
$7,999.00 AUD
Skip to product information
(We can only consider Australian retailers)
47
SKU
NV/FR/FRAY/BRG/47
Barcode
—
50
SKU
NV/FR/FRAY/BRG/50
Barcode
—
52
SKU
NV/FR/FRAY/BRG/52
Barcode
00810165979321
54
SKU
NV/FR/FRAY/BRG/54
Barcode
00810165979338
56
SKU
NV/FR/FRAY/BRG/56
Barcode
00810165979345
58
SKU
NV/FR/FRAY/BRG/58
Barcode
—
60
SKU
NV/FR/FRAY/BRG/60
Barcode
—
The ENVE Fray is sold as a chassis with frame, fork and headset.
The Fray embodies everything a modern all‑road bike should be: fast on pavement, composed on dirt, and built for riders who see every route as an open invitation. Its capability starts with generous tire clearance, accommodating up to a 700c x 40 mm tire to deliver confident handling whether you’re riding smooth tarmac, linking forgotten farm roads, or stretching a long ride into something more adventurous. Pair that with integrated frame storage that converts unused downtube space into practical, rattle-free capacity for tools and essentials, and you get a bike that stays clean, quiet, and ready for the unexpected without compromising its refined road aesthetics.
Features
Real-World Fast™ Aero Optimization: Designed for maximum aerodynamic efficiency in real-world riding conditions.
Optimized Geometry: Geometry optimized for 31mm–35mm tires.
Tire Clearance: Fits up to 700 x 40mm tires (1x) or 700 x 38mm tires (2x).
ENVE Cargo Bay: Integrated downtube storage allows convenient in-frame storage solutions.
Accessory Mounts: Top tube and downtube mounts for adding bags, bottle cages, tools, or other adventure ride gear.
Aero Tube Design: Aero tube shapes and design complement SES rim shapes.
UDH Compatible: Universal Derailleur Hanger (UDH) compatibility allows drivetrain choice flexibility.
Frame Weight: 900g (Size 56cm painted, no hardware)
Specifications
Frame Material: ENVE M.O.D Carbon, 12x142 thru-axle, flat mount disc, threaded T47 BB, internal routing, fender compatible.
Fork Material: ENVE M.O.D Carbon, 12x100 thru-axle, flat mount disc, internal routing, fender compatible.
Target Application: All Road / Endurance / Mixed Surface / Sportif / Fondo.
Sizes (cm): 47, 50, 52, 54, 56, 58, 60.
Fork Rake: 55, 51, 47, 43.
Frame Size / Fork Rake: 47cm/55, 50cm/55, 52cm/51, 54cm/51, 56cm/47, 58cm/47, 60cm/43.
Frame Weight: 900g ±2% (Size 56, painted, no hardware).
Headset: ENVE Integrated IS52/IS52 internal drop-in.
Headset Bearing: 1.5″ IS52 upper and lower.
Seat Post Diameter: ENVE Aero.
BB Type: T47 inboard bearing.
Brake Mount: Flat mount.
Front Axle: 12×100 (Total Length: 122, TP: 1.5, TL: 15).
Rear Axle: 12×142 (Total Length: 168, TP: 1.0, TL: 14).
Minimum Tire Size: 27mm.
Optimal Tire Size: 31mm–35mm.
Maximum Listed Tire Clearance 1x: 40mm.
Maximum Listed Tire Clearance 2x: 38mm.
In-Frame Storage: Yes (2 storage bags included – 18.22 cubic cm each).
Frame Routing: Internal.
Water Bottle Capacity: 3.
Top Tube Mounts: Yes.
Fender Compatible: Yes.
Wheel Size: 700c.
Mfr Claimed Weight
TBC
