Description

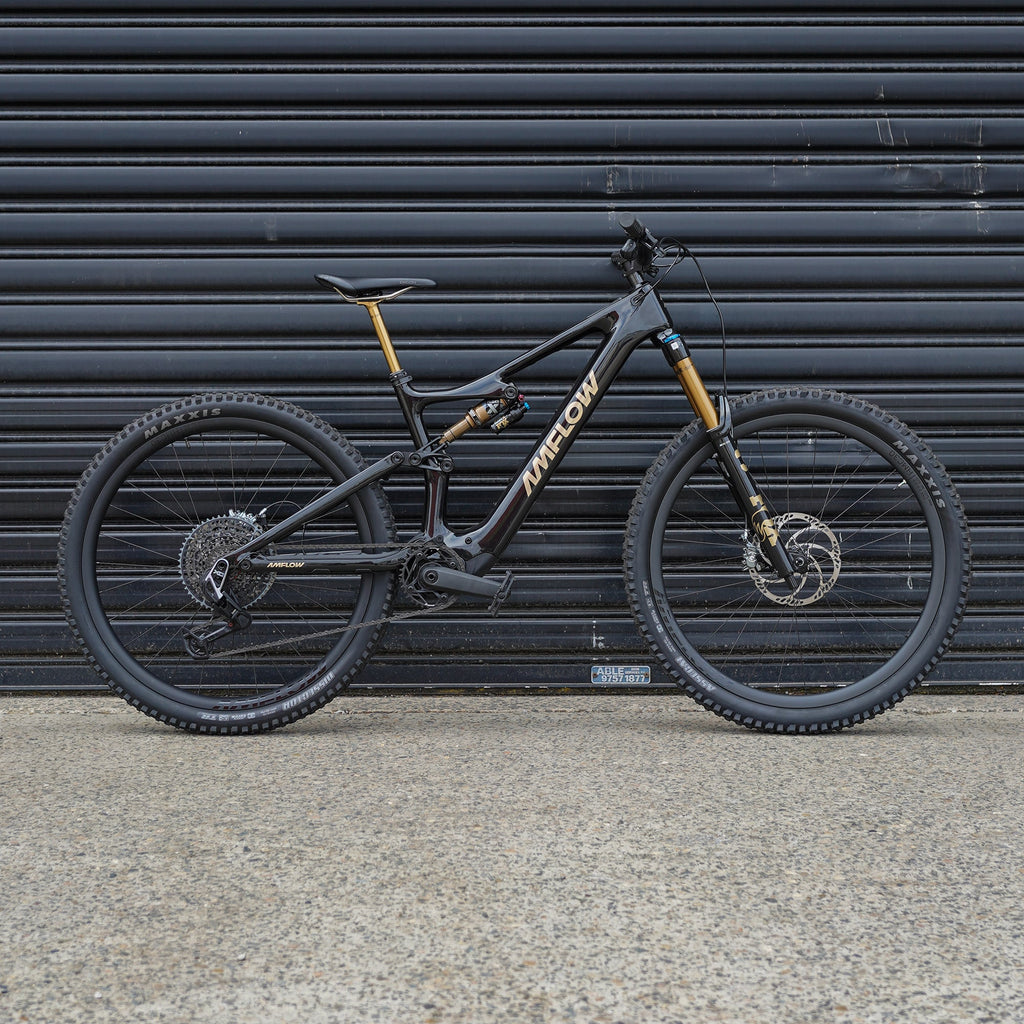

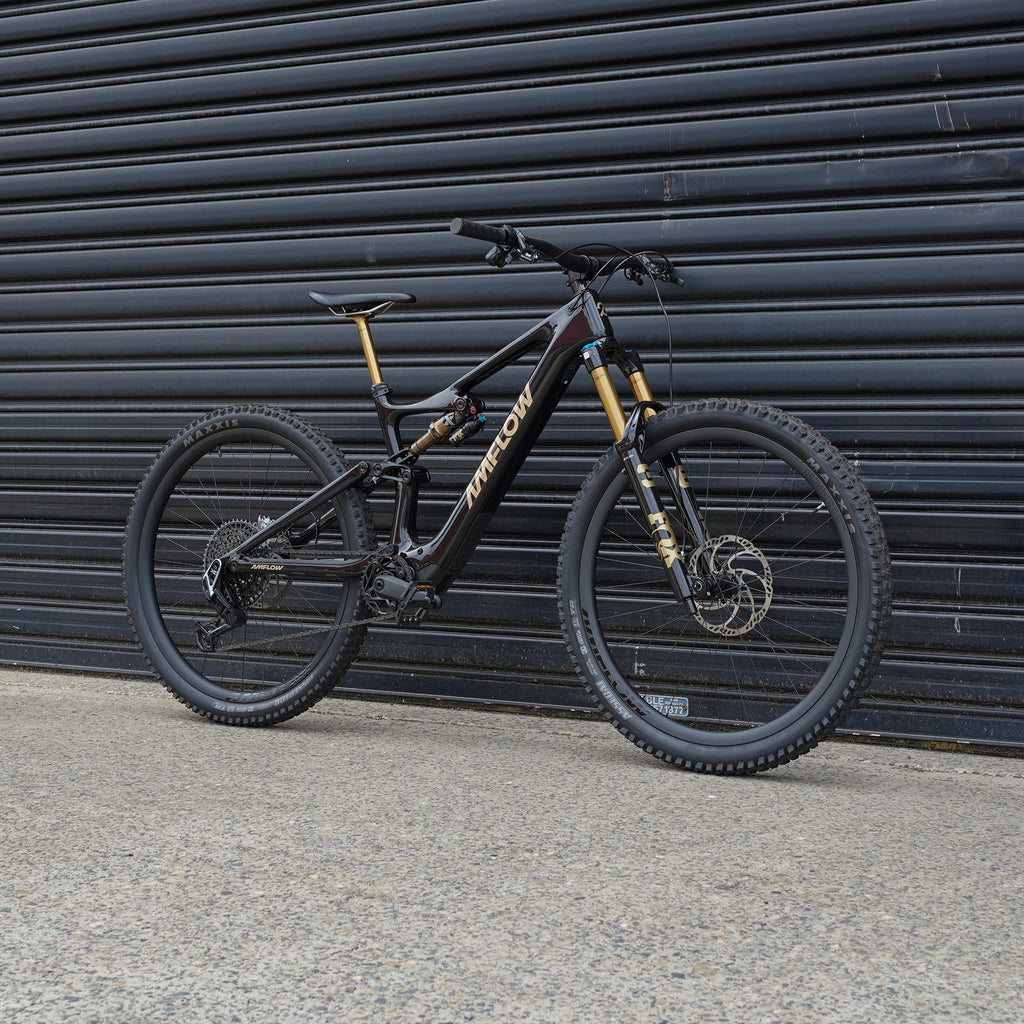

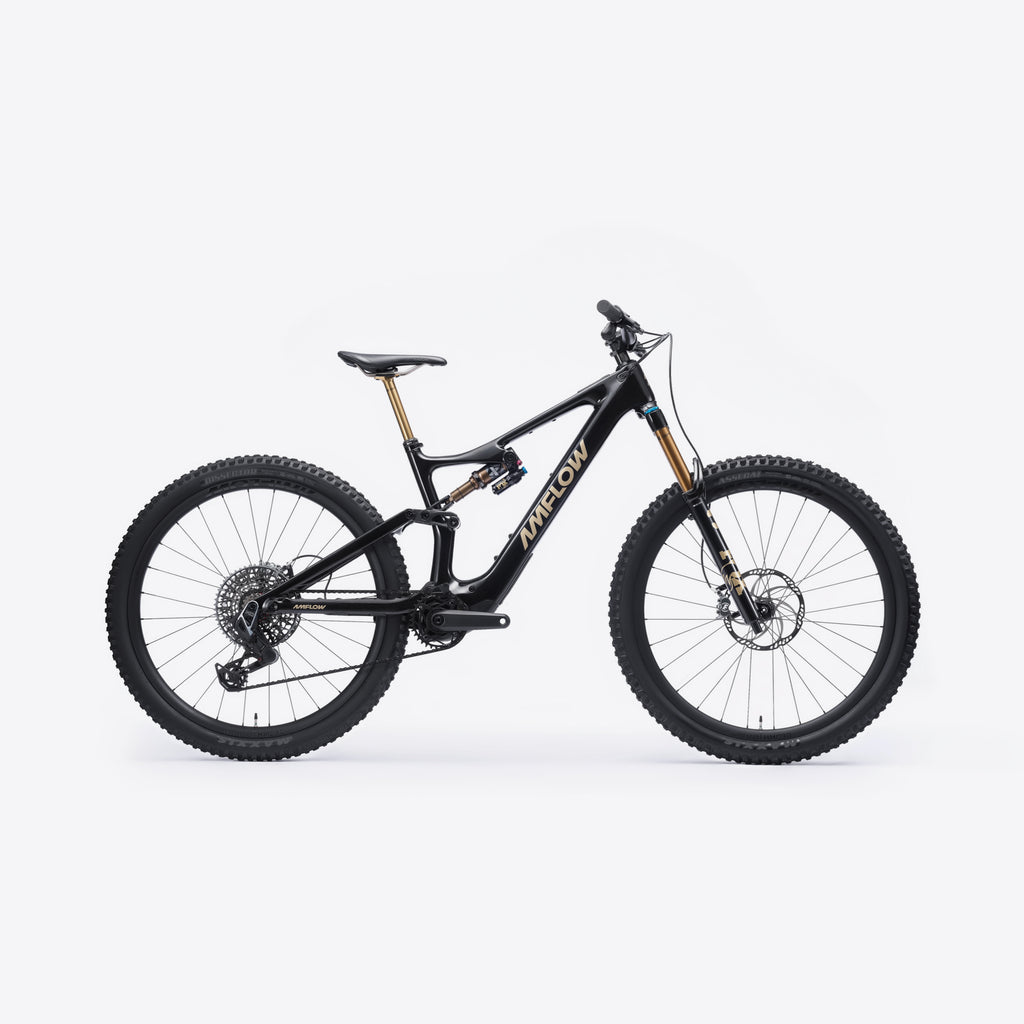

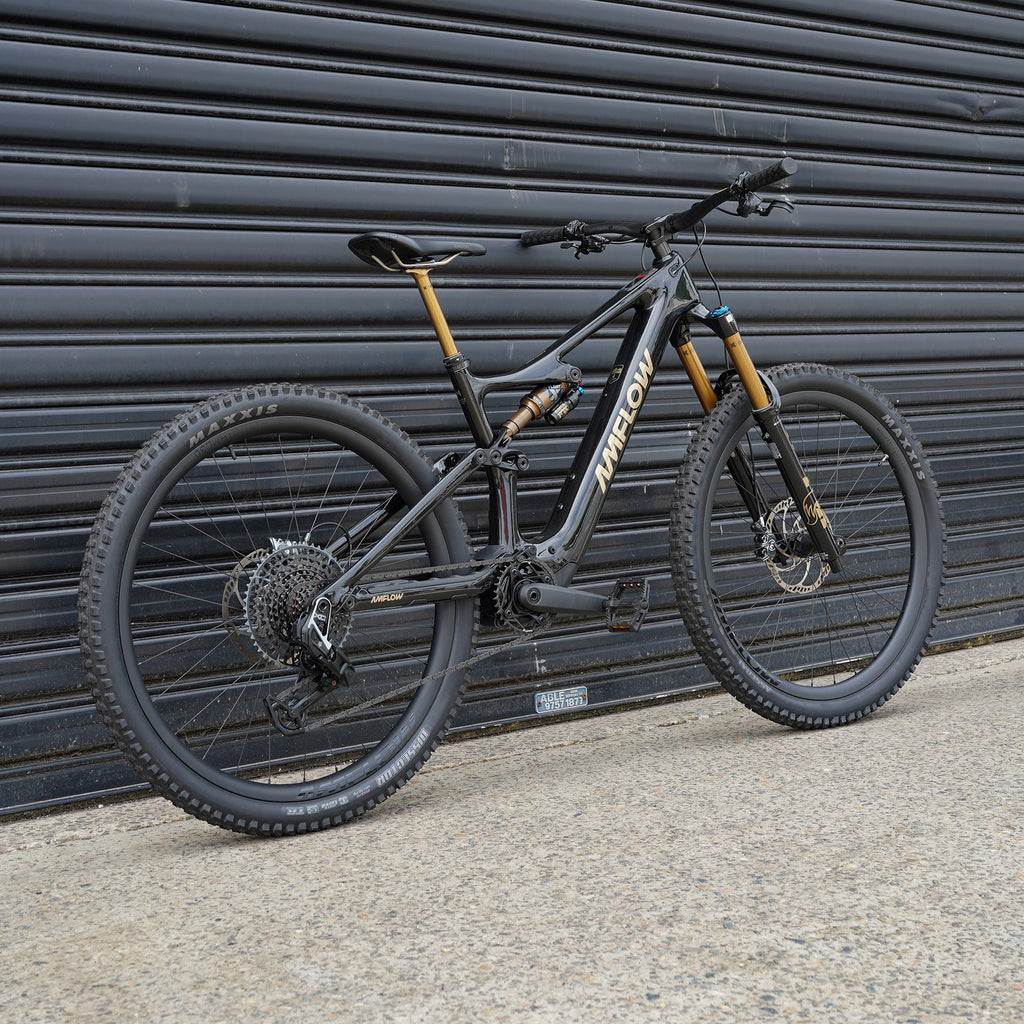

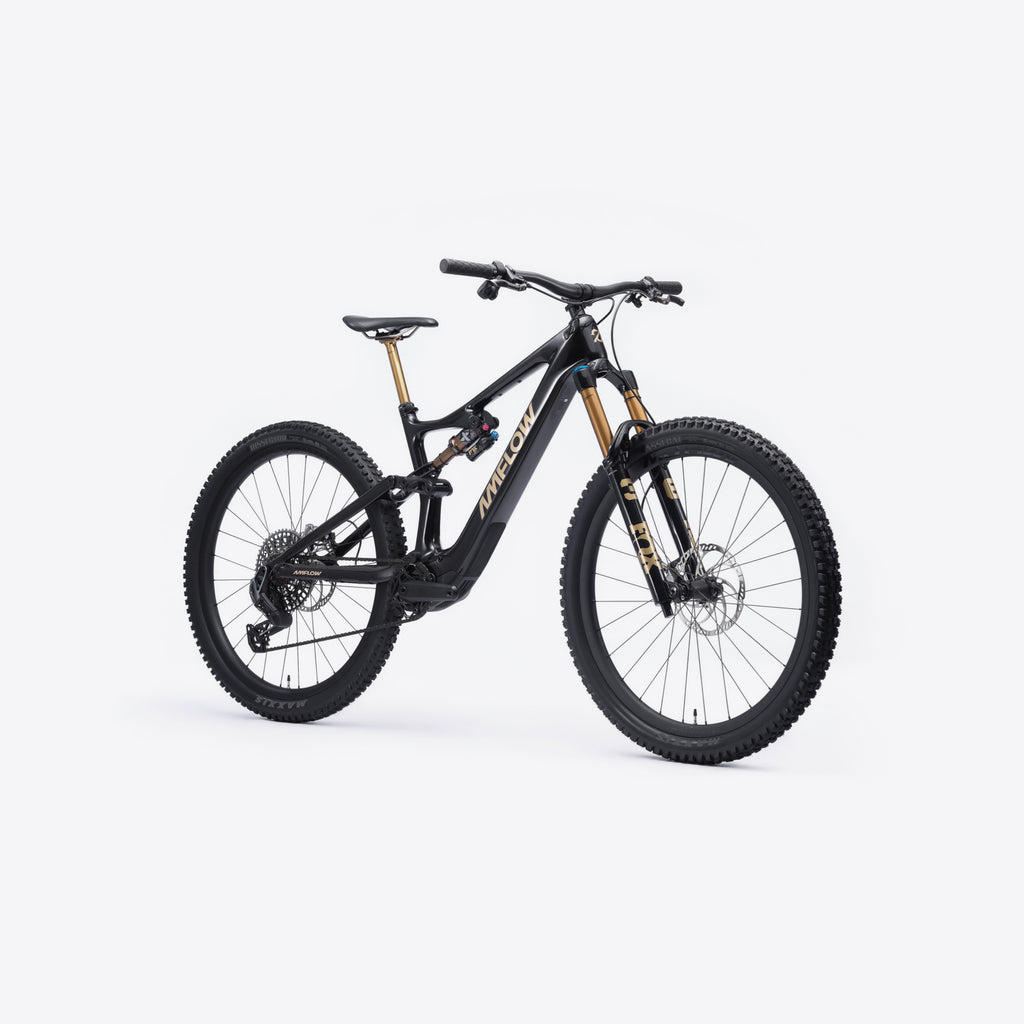

The Amflow PL Carbon Pro is a statement in modern e-MTB engineering — where advanced drive technology meets a refined carbon chassis. Built around the DJI Avinox M1 system, it delivers smooth, immediate assistance with serious torque on tap, all while remaining remarkably quiet and controlled on trail.
A lightweight full-carbon frame paired with 150 mm rear travel and a 160 mm FOX Factory fork strikes the balance between precision climbing and composed descending. The integrated 800 Wh battery offers genuine all-day range, with fast-charge capability for minimal downtime between rides.
Finished in Cosmic Black, the PL Carbon Pro keeps things purposeful and understated. Premium components — including SRAM Transmission drivetrain, Magura MT7 brakes, and carbon wheelset — complete a build designed for riders who value performance, integration, and detail over gimmicks.
This is full-power e-MTB done properly: clean, capable, and unapologetically high-end.
5 Modes, Effortless Assistance : Auto mode adapts assistance in real-time. Activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.
Light Motor, Powerful Drive : The 2.52kg motor delivers 105N·m continuous torque and 1000W peak power. Strong and durable polymer material effectively suppresses noise.

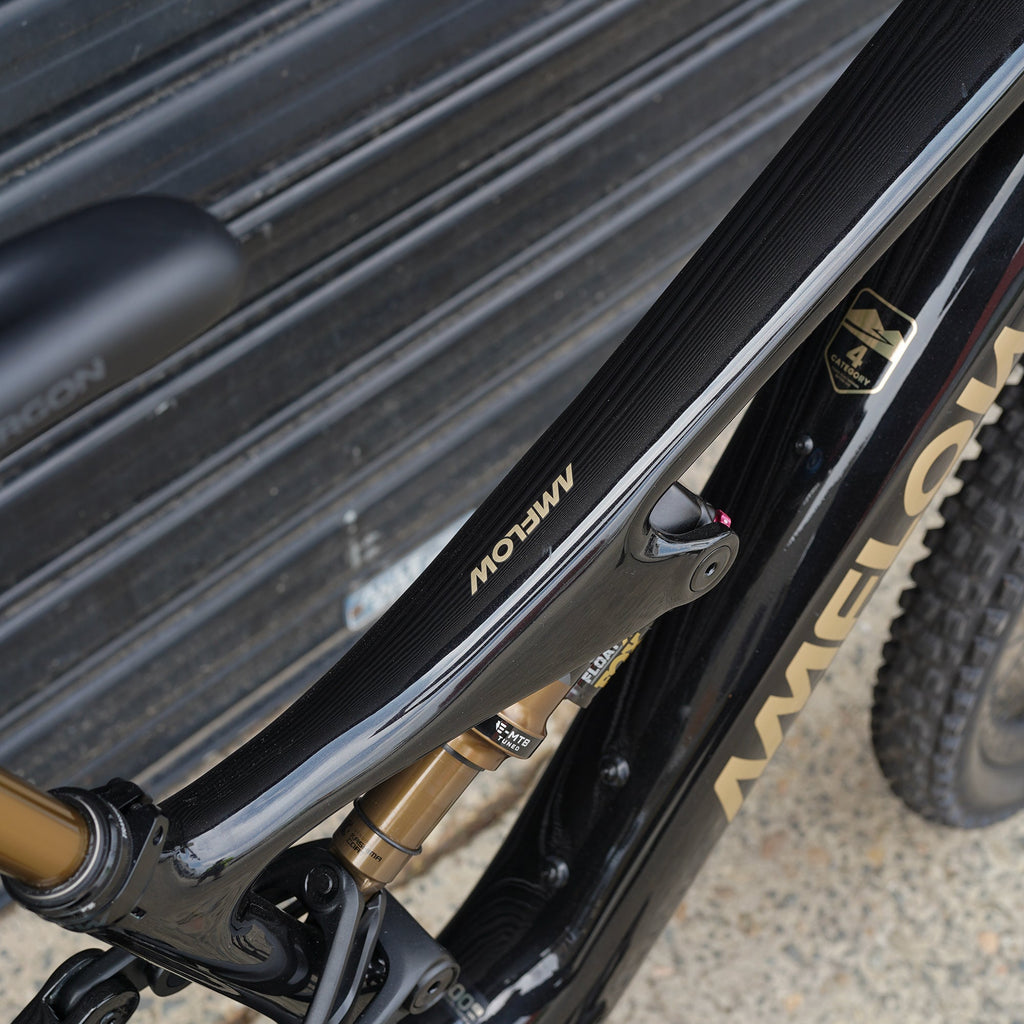

Ultra-Light Streamlined Frame : The 19.2kg build uses an ultra-light carbon fiber frame that weighs just 2.27 kg, for breathtaking speed and agility.
800Wh Batt., 3x Fast Charging : Using the Avinox Drive System that provides battery with a maximum capacity of 800 Wh, the bike can reach a range of 157 km.
Versatile Geometry : Amflow PL's frame design features a 64.5° head tube angle, a 445mm chainstay length, and a 77° seat tube angle, offering balanced performance.
Built-in Touchscreen Display : The 2-inch full-color OLED touchscreen offers real-time ride data and range. Paired with the Avinox app, it offers remote locating features.
Intelligent Walk Assist : Walk Mode features Auto Hold to prevent rollback on slopes as well as Hill Start Assist and stationary gear shifting for a smooth experience.
Size Guide
| Size | Height (cm) | Height (inch) |
|---|---|---|
| M | 162 - 178 | 5'4 - 5'10'' |
| L | 170 - 185 | 5'7 - 6'1'' |
| XL | 175 - 191 | 5'9 - 6'3'' |
| XXL | 185 - 201 | 6'1 - 6'7'' |
Geometry Chart
| M | L | XL | XXL | ||
|---|---|---|---|---|---|
| A | Reach | 452mm | 475mm | 500mm | 525mm |
| B | Stack Height | 618mm | 628mm | 641mm | 655mm |
| C | Standover Height | 780mm | 785mm | 790mm | 795mm |
| D | Front Center | 782mm | 810mm | 844mm | 873mm |
| E | Fork Length | 570mm | 570mm | 570mm | 570mm |
| F | Wheelbase | 1227mm | 1255mm | 1289mm | 1318mm |
| G | Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| H | Bottom Bracket Drop | 29mm | 29mm | 29mm | 29mm |
| I | Bottom Bracket Height | 345.5mm | 345.5mm | 345.5mm | 345.5mm |
| J | Effective Top Tube Length | 595mm | 620mm | 648mm | 676mm |
| K | Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| L | Head Tube Length | 105mm | 115mm | 130mm | 145mm |
| M | Actual Seat Tube Angle | 70° | 70° | 70° | 70° |
| N | Effective Seat Tube Angle | 77° | 77° | 77° | 77° |
| O | Seat Tube Height | 430mm | 450mm | 470mm | 500mm |
Note: Before using this vehicle check the applicable local laws relating to the intended use of the vehicle on roads and road related areas.
Specifications
| Frame | Amflow PL Carbon, Cosmic Black, 150mm rear travel, 27.5"/29" compatible |
| E-Bike System | Avinox M1 Drive Unit 105 N·m, 2" OLED display, 800Wh battery, wireless controllers, 12A fast charger |
| Fork | FOX 36 Factory, 160mm travel, GRIP X2 damper, 15×110mm, 44mm rake |
| Rear Shock | FOX Float X Factory, Trunnion 185×55mm, custom tune, EVOL Air, 2-position lever |
| Transmission | SRAM X0 Eagle 12-speed, 34T chainring, XS-1295 10–52T cassette, X0 Eagle Flattop chain, Avinox SL crank (155–160mm) |

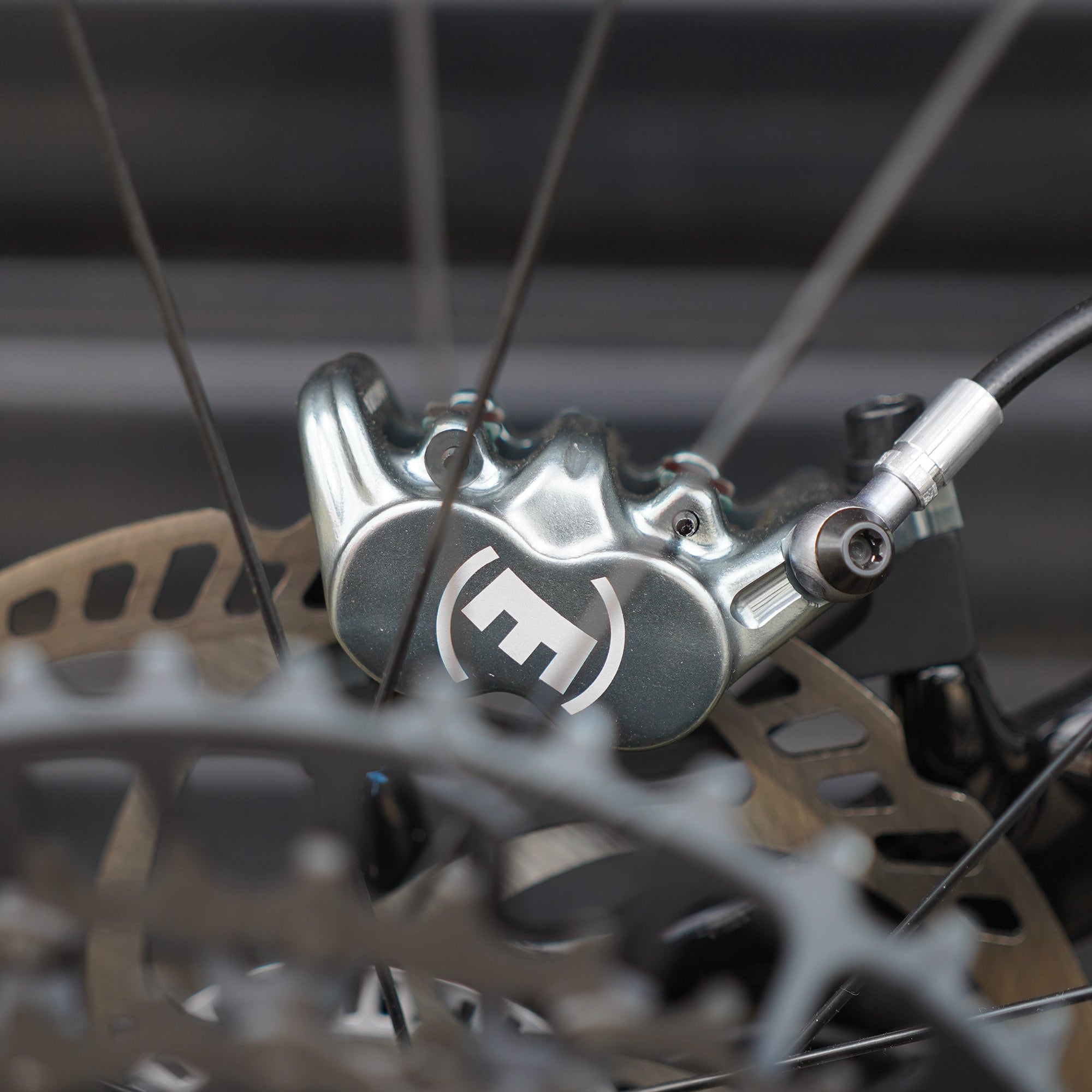

| Brakes | Magura MT7 Pro hydraulic, 4-piston, 203mm Storm HC rotors |
| Wheels & Tyres | Amflow HMC-30, Carbon 29" rims, tubeless, SAPIM E-Light straight pull spokes, Maxxis Assegai 29×2.5 (front), Dissector 29×2.4 (rear) |
| Cockpit | Amflow Enduro Carbon bar 800mm, 25mm rise, 5°/9° sweep, Enduro stem & grips, Ergon SM Pro saddle |
| Dropper Post | Fox Transfer Factory: M 125–150mm, L/XL 155–180mm, XXL 185–210mm |
| Accessories | Quick Start Guide, Torque Wrench, Shock Pump, Front & Rear Lights |
