PRE ORDER, SHIPS WITHIN 10 DAYS.

Use the variant selector to choose either no handlebar or add the ZEPHYR-SSL Aerodynamic Integrated Handlebar. Please advise bar width and stem length upon order.

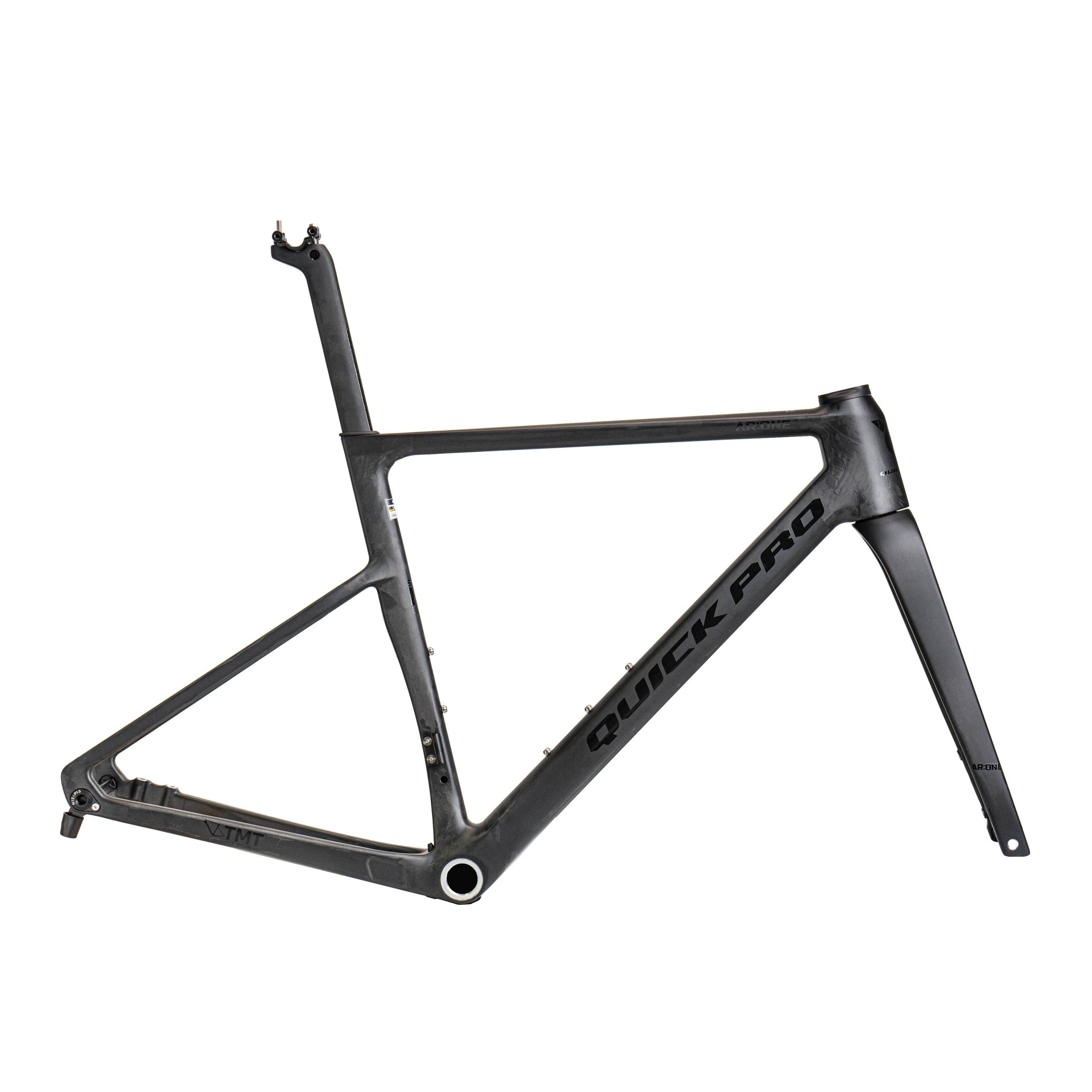

The Quick Pro AR:One was designed from day one with a single purpose: win races. The project was started when QUICK decided to launch their high-end brand QUICK PRO. At the same time, QUICK sponsored the Ferei Quick-Panda Podium Mongolia Team. The Directeur sportif of the team was also assigned as product manager of the AR:One to ensure the frame met the needs of the team.

Frame cost, marketability, and commercial viability were all ruled irrelevant. They had a simple brief: make an unapologetic race bike. The result? A frame that boasts aggressive geometry and unrivalled stiffness all while weighing less than 700 grams.

With most of the teams races being fly-away races an all-round design was chosen. The bike had to be able to handle the >10,000m of climbing of the Tour of Puoyang lake, while also be stiff enough to hand the >2000 watt sprints of Martin Laas.

Practicality was also high on the list of priorities. A BSA threaded bottom bracket makes the team mechanic's job easier while a simple round headtube allows team members to run either integrated handlebars or separate bar and stems as they see fit.

Frame
Frame sizes: XS, S, M, L, XL
Frame material: Carbon FIber (Including T1100 & M65 High Modulus)
Headset: 52mm/ 52mm upper lower Fully Internal
Bottom Bracket: BSA Threaded
Dropouts: F- 100*12mm R- 142*12mm
Brake System: Flat mount disc brake
Max tire clearance: 700*32C
Accessories: Seat Post, Headset, Seat Post Clamp, Direct-mount Derailleur Hanger, Di2 Battery Stopper, Seat Post Dust Cover, Thru-Axles.
Rider Weight Limit: 120kg
Manufacturer's Frame Warranty: Five Years.

Bar Stem
Crazy light: 288g±3% (380*90mm)
Fully internal cable routing compatible
Fusion of Nanotechnology and Advanced Carbon Fiber
One-Piece Molding Technology
Reach: 75mm
Drop: 125mm
Stack: 37mm
Drop Flare: 6.1°
Stem Angle: -8°
