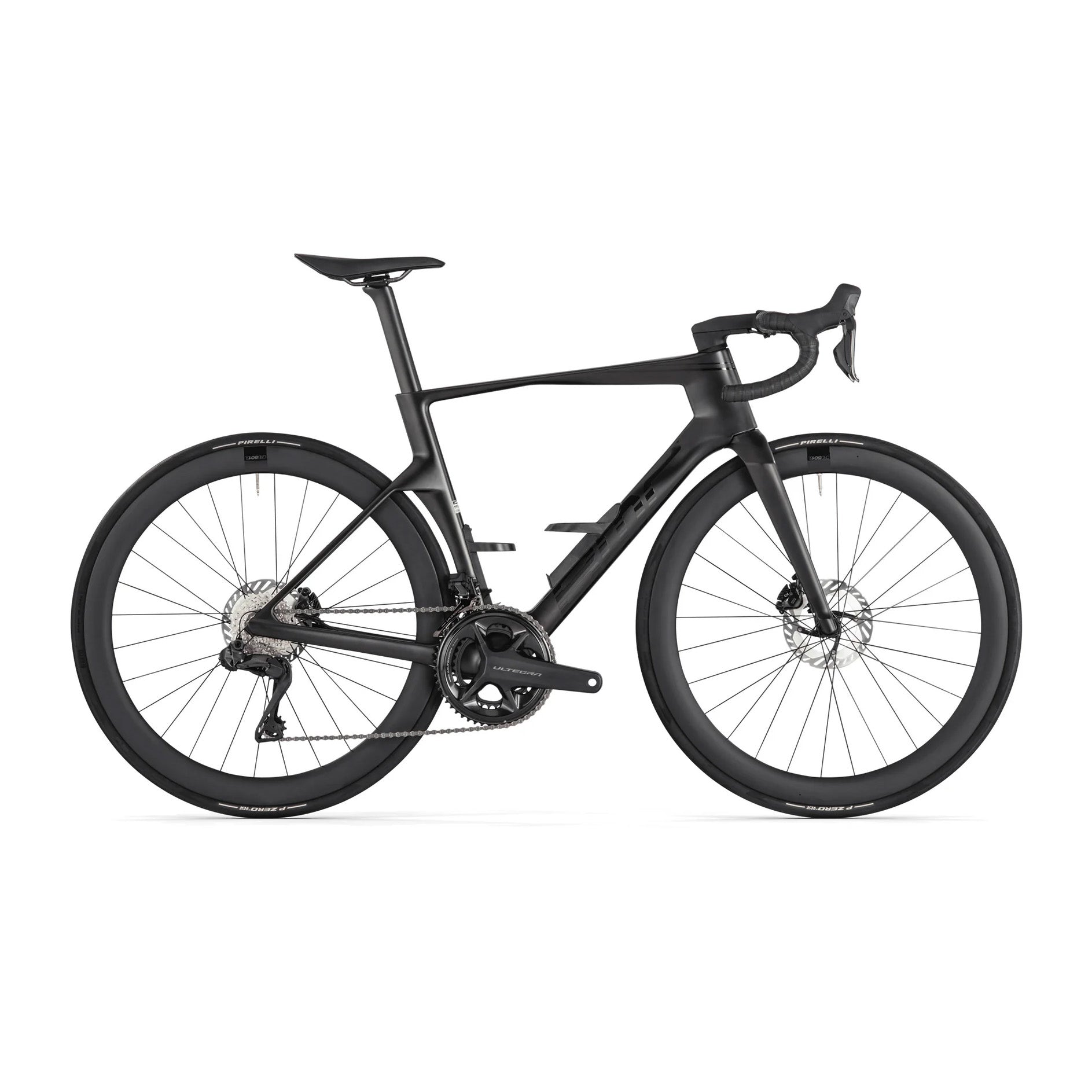

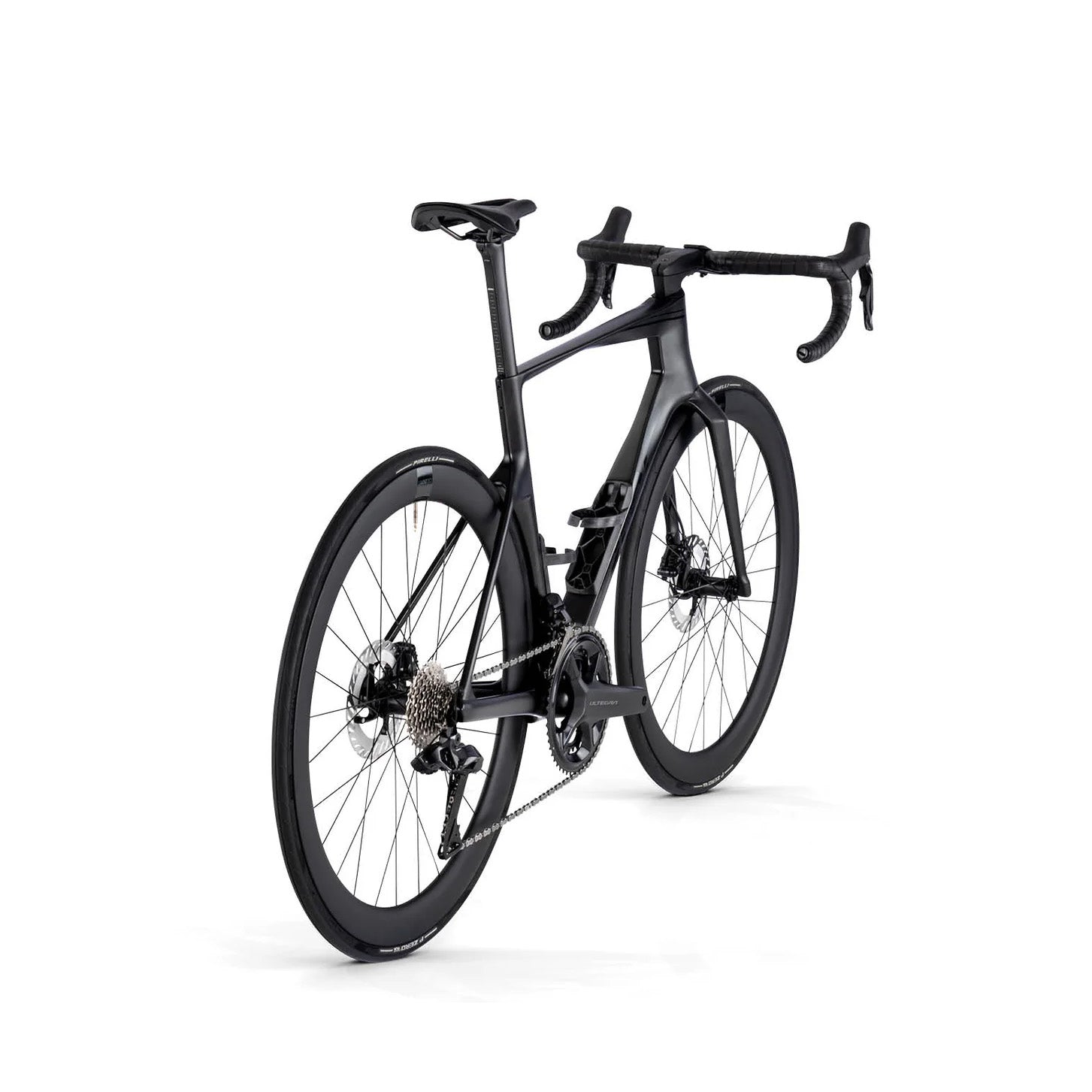

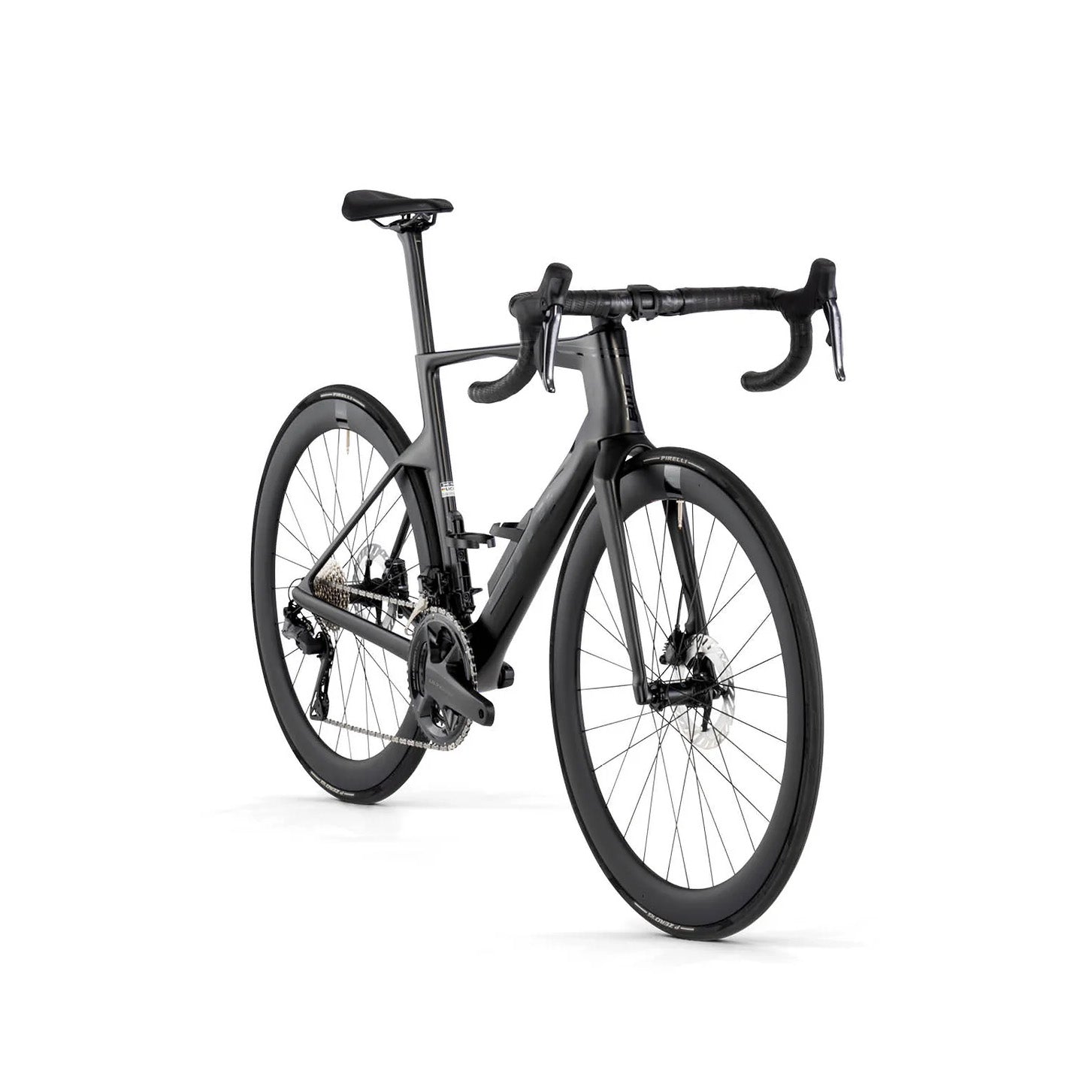

BMC Teammachine R01 Four - Carbon Black

BMC Teammachine R01 Four - Carbon Black

BMC Teammachine R01 Four - Carbon Black

BMC Teammachine R01 Four - Carbon Black

BMC Teammachine R01 Four - Carbon Black

BMC Teammachine R01 Four - Carbon Black

The all-new BMC Teammachine R was designed for a special breed of cyclist. Light enough to ascend the most demanding climbs and stiff enough to endure the most watt-crushing sprints, the Teammachine R is the ultimate race bike. Teammachine R 01 ONE is completed with the SRAM RED AXS Drivetrain with accompanying powermeter, the DT Swiss ARC 1100 wheelset and BMC’s ICS Carbon Aero Cockpit.

Frameset

Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Stem:
BMC ICS2 | Integrated Cockpit System Technology

Handlebar:
Easton EC70 SL Carbon or Easton EC90 SLX Carbon

Seat

Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset

Saddle:
Fizik Argo Vento R3 | 140mm

Drivetrain

Crankset:
SHIMANO Ultegra (FC-R8100)

Chainrings:
52-36T

Power Meter:
4iiii Precision Gen3+ Power Meter (Non-Drive Side)

Cassette:
SHIMANO Ultegra (CS-R8100)

Cassette Size:
11-30T

Chain:
SHIMANO CN-M8100

Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)

Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)

Shifters:
SHIMANO Ultegra Di2 (ST-R8170)

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)

Rotors:
SHIMANO RT-CL800 | Centerlock

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CRD-501 Carbon | Tubeless Ready | 50mm

Hubs (F/R):
CRD-501

Tires:
Pirelli P Zero Race TLR | 26mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

Aerocore Bottle Cages

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
7.5 Kg

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	368	378	387	393	402	409
Stack	504	528	548	563	582	608
Bar Reach	72.5	72.5	72.5	72.5	72.5	72.5
Bar Width	360/420	360/420	360/420	360/420	360/420	360/420
BB Drop	69	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175	175
Fork Length	367	367	367	367	367	367
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	185	211
Head Tube Angle	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center	410	410	410	410	410	410
Seat Angle	74	74	73.5	73.5	73	73
Seat Tube	418	463	499	519	541	570
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	10	10	10	10	10	10
Stem Angle	-15	-15	-15	-15	-15	-15
Stem Length	90	100	100	110	110	120
Top Tube	522	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	999	1015	1030

BMC Teammachine R01 Four - Carbon Black

$11,399.00

Size

The all-new BMC Teammachine R was designed for a special breed of cyclist. Light enough to ascend the most demanding climbs and stiff enough to endure the most watt-crushing sprints, the Teammachine R is the ultimate race bike. Teammachine R 01 ONE is completed with the SRAM RED AXS Drivetrain with accompanying powermeter, the DT Swiss ARC 1100 wheelset and BMC’s ICS Carbon Aero Cockpit.
